DHP Callie 4427429 Assembly Instructions Manual

DHP Callie 4427429 Assembly Instructions Manual

Upholstered bed
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
(Black) (Ivory) (Light Gray)
Upholstered Bed
Full
Weight Limit: 450 Lb / 204 Kg
Thank you for purchasing our product!
DO NOT RETURN TO THE STORE !
I f parts are missing or damaged, contact us !
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Callie 4427429 and is the answer not in the manual?

Questions and answers

Related Manuals for DHP Callie 4427429

Summary of Contents for DHP Callie 4427429

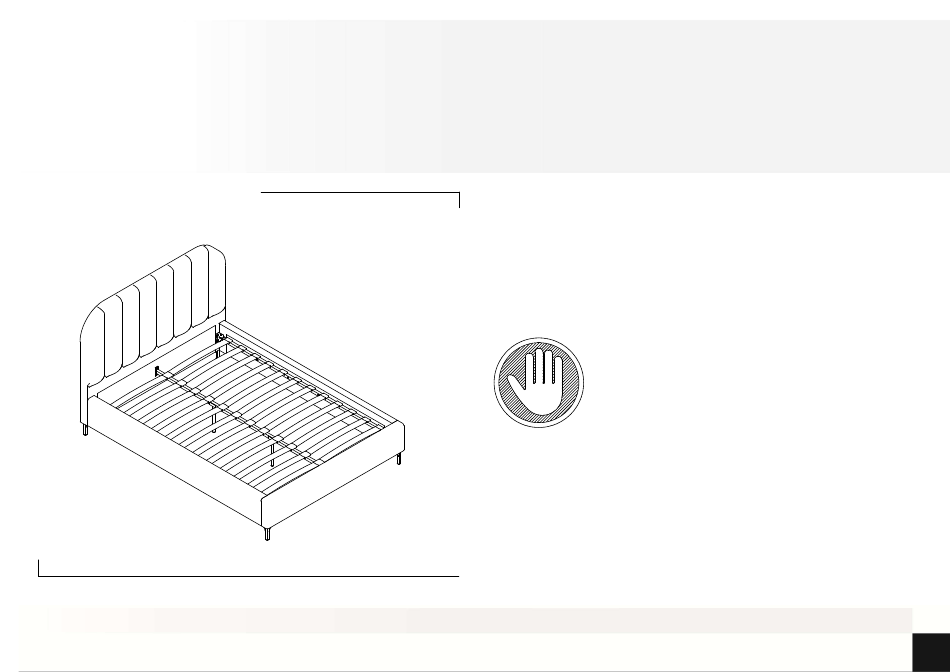

  • Page 1 (Black) (Ivory) (Light Gray) Upholstered Bed Full Weight Limit: 450 Lb / 204 Kg Thank you for purchasing our product! DO NOT RETURN TO THE STORE ! I f parts are missing or damaged, contact us !

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly Warrants this product to be free from defects in material and workmanship and ● Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of ●...
  • Page 3 Parts This item is packed in 2 boxes! All parts listed on this page are in Box A. If Box B is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly. Headboard Double Slat Cap Wooden Slats Single Slat Cap...
  • Page 4 Parts This item is packed in 2 boxes! All parts listed on this page are in Box B. If Box A is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly. Footboard Side Panel Side Rail Center Rail...

  • Page 5: Hardware Pack

    Hardware Pack 1/4" X 3/4" X 24 1" X 16 1/4" X 1 9/16" X 12 Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.
  • Page 6 Step 1 Open the compartment on the back side of the headboard A, take all parts out for assembly, close the compartment with the Velcro as illustrated.
  • Page 7 Step 2 ❷ Attach Z X 4 to A and B with ❷ ❶ Screw to A, Screw to B. X 16...
  • Page 8 Step 3 ❶ Attach S and T to C with Repeat the same step for remaining parts C, S and T. Make sure that the hole on C is oriented on upper side. X 12...
  • Page 9 Step 4 Hang sub-assembly C X 2 on A and B as illustrated, don't completely tighten the bolts until STEP 6 is complete.
  • Page 10 Step 5 ❶ Attach L X 2 to F with...
  • Page 11 Step 6 ❶ Attach F to A and B with Then properly tighten all the bolts.
  • Page 12 Step 7 ❸ Attach E X 2 to C X 2 with The slat holes on part E should be facing upward. X 12...
  • Page 13 Step 8 8.1 Insert P into X, 8.2 Press X into E, repeat the same procedure for the opposite side of the bed with a new P and X . 8.3 Insert ends of both P into Y, then press Y into F as illustrated.

  • Page 14: Helpful Hints

    Helpful Hints Helpful Hints Weight Limit: 450 Lb / 204 Kg ● Move your new furniture carefully, with two people lifting and carrying the unit to its new location. ● Your furniture can be disassembled and reassembled to move. ● Some parts have been pre-assembled for this item.
