- Page 1 RTF-TC RTU-TC RTF-TC RTU-TC INSTRUCTIONS • English • Nederlands • Deutsch • Lietuvių k. • Français • Italiano • Suomi • Español • Polski • Português • Česky • Magyar • Svenska GREEN COMFORT Maximum comfort with low energy consumption...
- Page 2 ILLUSTRATIONS Pages ..................3 INSTRUCTIONS English .................. 7 Deutsch ................12 Français ................17 Suomi ................. 22 Polski .................. 27 Česky .................. 32 Svenska ................37 Nederlands ................. 42 Lietuvių k................47 Italiano ................52 Español ................57 Português ................62 Magyar ................
- Page 3 RTF-TC RTU-TC Fig. 1 Fig. 2 © 2020 OJ Electronics A/S...
- Page 4 RTF-TC / RTU-TC Fig. 3 Fig. 4 3 ≤ 25° © 2020 OJ Electronics A/S...
- Page 5 RTF-TC / RTU-TC Fig. 5 Fig. 6 © 2020 OJ Electronics A/S...
- Page 6 RTF-TC / RTU-TC Fig. 7 Fig. 8 Manual Menu Auto Fig. 9 © 2018 OJ Electronics A/S...

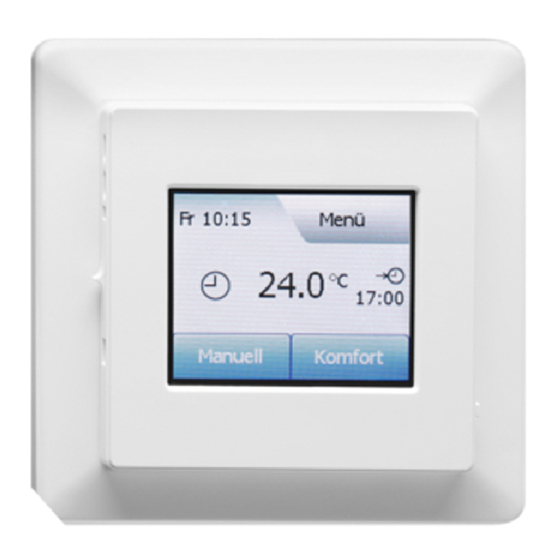

- Page 7 The thermostat is for flush mounting in a wall socket. A baseplate for wall mounting is also available. This thermostat can be used as a controller for electric room heat- ing pursuant to EN50559.* * Only valid for RTF-TC (MCD5-1999) Product programme RTF-TC (MCD5-1999) Clock-thermostat with two sensors: floor sensor and built-in room sensor.
- Page 8 RTF-TC / RTU-TC English To prevent loose wires in the fixed installation from coming into contact with the terminal block for the floor sensor, they must be restrained using cable ties. It is strongly recommended that the cable and sensor are placed in a non-conductive installation pipe embedded in the floor.
- Page 9 RTF-TC / RTU-TC English Term. 5-6: External floor sensor (RTF-TC Thermostats only) FIG. 6 + 7 - MOUNTING THE THERMOSTAT 1. Mount the thermostat in the wall socket. 2. Fit the frame and carefully press the cover onto the thermostat - starting with the upper part of the cover, then the lower part of the cover.
- Page 10 RTF-TC / RTU-TC English FIG. 9 - TROUBLESHOOTING If the sensor is disconnected or short-circuited, the heating system is switched off. The sensor can be checked against the resistance table. Error codes E0: Internal fault. The thermostat must be replaced.
- Page 11 RTF-TC / RTU-TC English TECHNICAL SPECIFICATIONS Purpose of control Electrical underfloor heating Wall mounting in a socket or Method of mounting. mounting box Supply voltage 100-240 VAC ±10% 50/60 Hz Max. pre-fuse 16 A Built-in interupter 2-pole, 16 A Enclosure rating IP 21 Current ≤...
