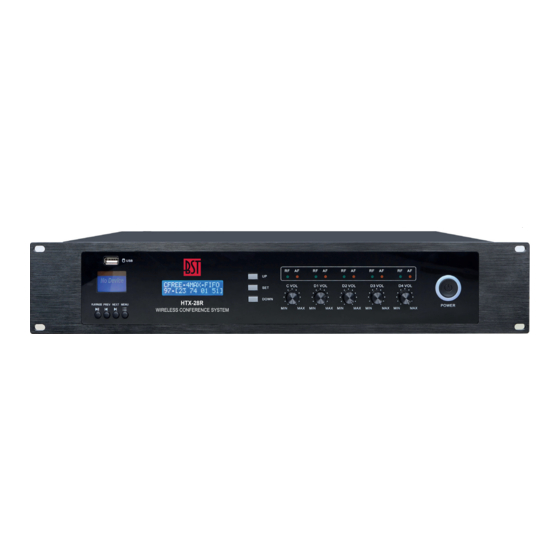

HTX-28R/C/D/B
CODE: 95-3043 / 95-3036 / 95-3037 / 95-3035
UHF CONFERENCE SYSTEM WITH USB RECORDER
SYSTEME DE CONFERENCE UHF AVEC ENREGISTREUR USB
INSTRUCTION MANUAL • EN • p. 2
MANUEL D'UTILISATION • FR • p. 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTX-28R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BST HTX-28R

  • Page 1 HTX-28R/C/D/B CODE: 95-3043 / 95-3036 / 95-3037 / 95-3035 UHF CONFERENCE SYSTEM WITH USB RECORDER SYSTEME DE CONFERENCE UHF AVEC ENREGISTREUR USB INSTRUCTION MANUAL • EN • p. 2 MANUEL D‘UTILISATION • FR • p. 17...
  • Page 2: Safety Recommendations

    2 • HTX-28R SAFETY RECOMMENDATIONS CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD The exclamation point triangle is used to alert the user to important operating or maintenance instruc- tions The lightning bolt triangle is used to alert the user to the risk of electric shock...
  • Page 3 HTX-28R • 3 DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. WARNING! To reduce the risk of electric shock, do not expose this equipment to rain or moisture! Usage restrictions The product uses a UHF transmission system, that is exclusively reserved for professional use.
  • Page 4 4 • HTX-28R • 160x32 dot matrix LCD display system information • Receiver can control the microphone status when powered off, such as clear or shutting off all micro- phones. • Designed accordance to UL and CE standards • Built-in USB recording module •...
  • Page 5 HTX-28R • 5 18. MIX OUT: Mixed audio output 19. MIX BAL: Mixed audio balance output 20. ANT B: Delegate mic RF antenna interface 21. ANT B: Delegate mic RF antenna interface 22. ANT A: Chairman mic RF antenna interface Specifications of the Main Unit Power supply ............
  • Page 6 6 • HTX-28R • After the battery has been removed and replaced, confirm that the power LED turns off Features of wireless delegate microphone HTX-28D • Electret condenser microphone fitted with windshield cover • LCD display microphone ID, battery level, microphone state, control channel, etc.
  • Page 7: Wireless Meeting System Lithium Battery

    HTX-28R • 7 BATTERY CHARGER HTX-28B CAUTION on battery charger handling • If the charging terminal is dirty, poor contact will prevent the battery from being charged properly. Perio- dically clean the charging terminals • The battery charger may become hot during charging. Use it in a well-ventilated area •...
  • Page 8: Specifications

    8 • HTX-28R CAUTION on battery handling • The battery is dedicated to the microphone unit. Do not use it for other applications • Use only the designated battery charger • If the battery leaks and the liquid contacts your skin or clothing, immediately flush with clean water •...
  • Page 9 HTX-28R • 9 Receiver unit to sound system a. Mono output: Please connect MIX OUT interface of receiver unit to input interface of sound equipment by 6.3 audio cable (for short distance) b. Balance output: Please connect MIX-BAL interface of receiver unit to input interface of sound equipment...
  • Page 10 10 • HTX-28R Please connect DATA interface of receiver unit to DATA interface of video processor by RJ45 network cable. Please read the user manual of video processor. Receiver unit to external antenna If the distance between receiver and microphone is not far, and there does not have any obstruct, antenna can be connect to the “ANT”...
  • Page 11: System Setting

    HTX-28R • 11 SYSTEM SETTING Receiver unit setting a. POWER ON/POWER OFF • POWER ON: Hold the “POWER” button on the left front panel of receiver till LCD displays “ “ and then release it. LCD will display “ “, after system self-detecting LCD will display “...
  • Page 12 12 • HTX-28R Setting method: please see 1MAX-LIMIT setting method • 3MAX-LIMIT: The system allows only 3 delegate microphones to be turned on at the same time. If other delegate microphones want to turn on, the user should turn off 1, 2 or 3 microphones first.
  • Page 13 HTX-28R • 13 • Receiver data (room) channel setting (Default channel is «ROOM 1»). You can choose among 16 data (room) channels (0-1-2-3-4-5-6-7-8-9-A-B-C-D-E-F). Select the channel via the UP and DOWN keys. Press SET to save the setting. The receiver will switch to the next setting part automatically.
  • Page 14: Usb Recording Module

    14 • HTX-28R • MUTE: Prevention of unwanted noise such as cough b. Microphone project setting Press MUTE key and turn on the microphone with POWER key at the same time, microphone will enter project setting. There are four setting in this part.
  • Page 15 HTX-28R • 15 Function key instruction: Function Key Instruction PLAY/PAUSE ▶ǁ Short press: Play/Pause Long press: Sub-menu switch interface (MSC/REC/BT/SYS/UDI) PREV ‫◀׀‬ PREV / V-: Short press for previous audio file, long press to decrease volume NEXT ▶‫׀‬ NEXT/ V+: Short press for next audio file, long press to increase volume MENU ≡...
  • Page 16 16 • HTX-28R Microphone can not turned on • Is the correct data channel nu- • Receiver and microphone data properly mber set channel should be same • Is the receiver antenna installed • Install the antenna in correct po-...
  • Page 17: Manuel D'utilisation

    HTX-28R • 17 MANUEL D’UTILISATION ATTENTION NE PAS OUVRIR LE BOITIER RISQUE DE CHOC ELECTRIQUE Le triangle avec le point d’exclamation attire l’attention de l’utilisateur sur des instructions d’utilisation ou de maintenance importantes. L’éclair dans le triangle attire l’attention de l’utilisateur sur un risque de choc électrique En conformité...
  • Page 18 18 • HTX-28R Restrictions d’usage Le produit intègre un système de transmission UHF, son usage est exclusivement réservé à un usage pro- fessionnel. Une licence officielle d’utilisation ou autorisation des autorités locales peut être requise dans certains pays. Consulter les autorités compétentes pour son usage qui demeure sous la seule responsabilité...
  • Page 19 HTX-28R • 19 1.2.3 Schéma du récepteur sans fil 1. Interrupteur M/A 2. Indicateur de niveau AF/RF ( 1er canal uniquement pour le micro Président, les 4 derniers canaux pour les micros délégué) 3. Contrôle de volume du micro Présendient (Canal 1) 4.
  • Page 20 20 • HTX-28R Caractéristiques techniques du récepteur Alimentation ..........12-15V�� 1A par adaptateur secteur 110-240V~50/60Hz Consommation ............................7W Canal Audio Méthode de transmission ................UHF sans fil (sens unique) Canal Audio ....................5 (1 Président, 4 délégués) Bande de fréquence porteuse ..................610MHz~665MHz Modulation ..............................
  • Page 21 HTX-28R • 21 Caractéristiques du micro Délégué sans fil HTX-28D • Microphone électret à condensateur avec bonnette an- ti-vent • Affichage sur écran LCD de l’ID du micro, du niveau de bat- terie, du mode du micro, canal, etc. • Interrupteur M/A et voyant •...
  • Page 22 22 • HTX-28R CHARGEUR DE BATTERIE HTX-28B PRECAUTIONS lors de la manipulation du chargeur de batteries • Si la borne de charge est sale, un mauvais contact empêchera la batterie de se recharger correctement. Nettoyez périodiquement les bornes de charge •...
  • Page 23: Caracteristiques Techniques

    HTX-28R • 23 PRECAUTIONS lors de la manipulation des batteries • La batterie est dédiée au microphone. Ne l’utilisez pas pour d’autres applications • Utilisez uniquement le chargeur de batterie dédié • Si la batterie fuit et que le liquide entre en contact avec votre peau ou vos vêtements, rincez immédiate- ment à...
  • Page 24 24 • HTX-28R Veuillez noter: Les antennes du récepteur doivent être connectées dans la bonne position, sinon le système ne peut pas fonctionner correctement. Branchement du Récepteur sur un système de sonorisation a. Sortie Mono: Branchez la fiche MIX OUT du récepteur sur l'entrée d'un système de sonorisation au moyen du cordon audio 6.3 (pour de faibles distances)
  • Page 25 HTX-28R • 25 Branchement du Récepteur sur un processeur vidéo Branchez la fiche DATA du récepteur sur l'entrée DATA d'un processeur vidéo au moyen d'un câble réseau RJ45. Reportez-vous au manuel d'utilisation du processur vidéo. Branchement du Récepteur sur une antenne externe Si la distance entre le récepteur et le microphone n'est pas trop élevée et qu'il n'y a pas d'obstacles entre...
  • Page 26 26 • HTX-28R Montage et démontage d'un microphone Montage du microphone: Insérez le microphone dans la prise en ligne droite, puis faites pivoter le micro- phone dans le sens des aiguilles d'une montre pour le fixer solidement. Démontage du microphone: Tournez le microphone dans le sens antihoraire, puis tirez le microphone vers le haut pour le démonter...
  • Page 27 HTX-28R • 27 les micros Délégué ne peuvent pas être allumés. • Configuration de ce mode: Appuyez une ou plusieurs fois sur la touche SET jusqu'à ce que“CFREE” cli- gnote. Appuyez sur DOWN, le message clignotant change en CONLY (appuyez sur UP pour revenir sur CFREE).
  • Page 28 28 • HTX-28R d. Réglage du canal audio Canal audio par défautl: 40[05-35-65-95] • Canal audio du micro Président • Configuration manuelle: Appuyez une ou plusieurs fois sur la touche SET jusqu'à ce que le caractère « 40 » clignote. Appuyez sur la touche DOWN ou UP pour sélectionner le canal. Appuyez sur SET pour enregistrer le réglage ou attendez environ 3 secondes jusqu'à...
  • Page 29 HTX-28R • 29 ne s'applique qu'aux situations urgentes. Veuillez contacter votre revendeur pour obtenir la solution. • Maintenez appuyé la touche SET et appuyez sur la touche POWER jusqu'à l'affichage LCD indique pour quitter le menu de configuration du système.
  • Page 30 30 • HTX-28R VOL - et VOL +, et appuyer sur MUTE pour enregistrer le réglage. Le microphone passera automatiquement au réglage suivant. Veuillez noter : Tous les ID des microphones dans un système doivent être différents. Si plusieurs microphones ont le même numéro d'identification, le système ne fonctionnera pas correctement.
  • Page 31 HTX-28R • 31 PREV ‫◀׀‬ PREV / V-: Appuyez brièvement pour le fichier audio précédent, appuyez longuement pour diminuer le volume NEXT ▶‫׀‬ NEXT/ V+: Appuyez brièvement pour le fichier audio suivant, appuyez longuement pour augmenter le volume MENU ≡...
  • Page 32 32 • HTX-28R Le micro ne s'allume pas cor- • Est-ce que le numéro de canal • Le canal data du récepteur et du rectement data est correct? microphone doit être le même • L'antenne du récepteur est-elle • Installez l'antenne dans la bonne installée correctement...
