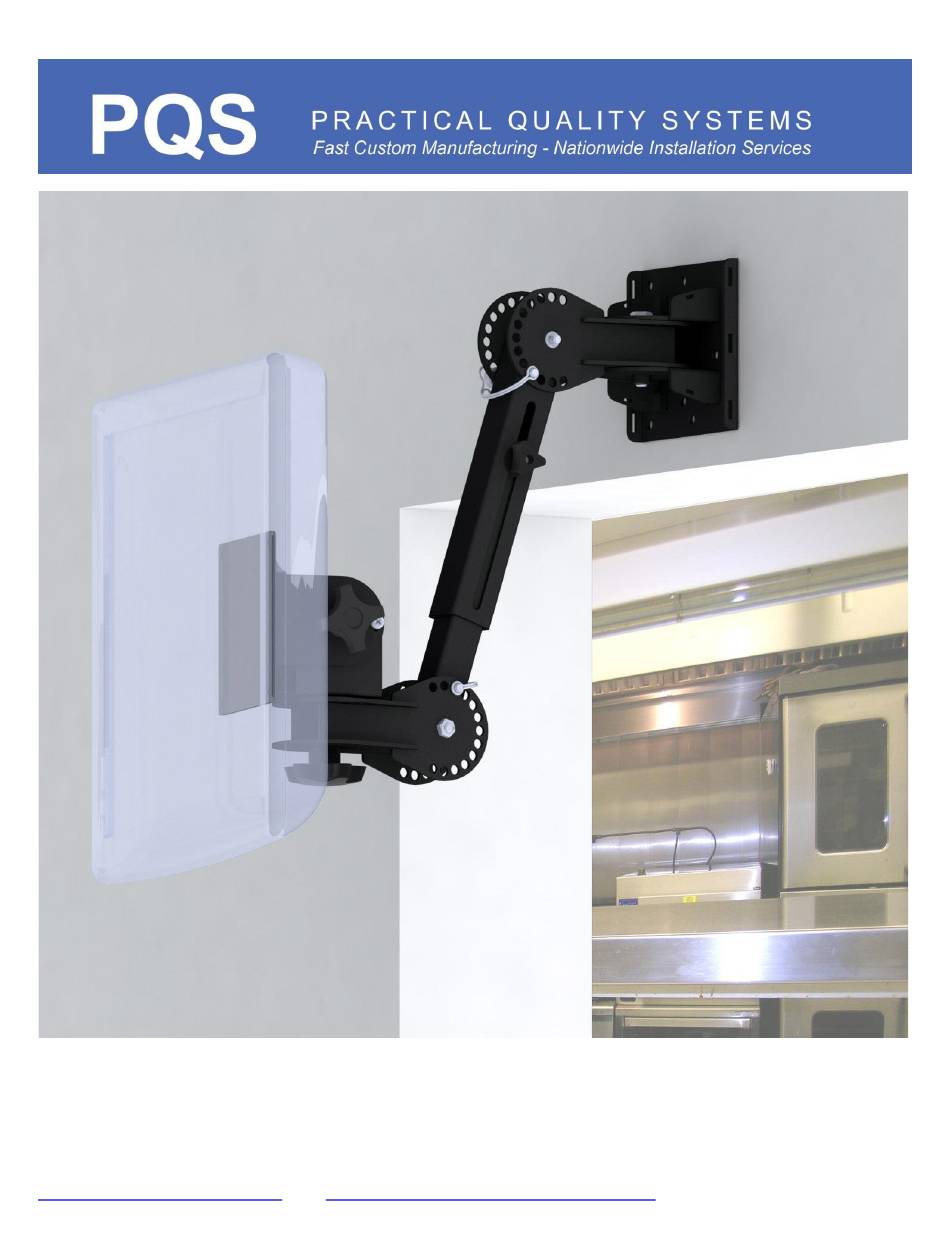

Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head
PN's 80005, 80005-3036 & 80005-3642
1
Screen not included
PN 80005 shown. Also available: PN 80005-3036 19" to 24" length, PN 80005-3642 25" to 30" length.
info@practicalqualitysystems.com
WWW.PRACTICALQUALITYSYSTEMS.COM
(818) 993-1022
ALL PRODUCTS PATENT PENDING
Advertisement
Related Manuals for PQS 80005
Summary of Contents for PQS 80005
- Page 1 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 Screen not included PN 80005 shown. Also available: PN 80005-3036 19” to 24” length, PN 80005-3642 25” to 30” length. info@practicalqualitysystems.com WWW.PRACTICALQUALITYSYSTEMS.COM...
- Page 2 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 General Features • This wall mount can be used as a universal support system for VESA compatible monitors,...
- Page 3 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 Enhanced VESA 75-100mm Pan and Tilt Head with side-to-side tilt adjustment on an Offset Arm Bracket • A universal mount that works with any 75mm or 100mm VESA compatible screen.
- Page 4 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 Telescopic Arm Section The overall length of the Telescopic arm section can be adjusted up to 6 inches. To adjust; grasp the inner arm and slightly loosen the three-point knob just until the inner arm can be moved.
- Page 5 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 Single Position 25lb Wall Mounting Plate with Integral Standoff bracket, Offset Arm Bracket and Arm • The Single Position 25lb Wall Mounting Plate with Integral Standoff bracket supports one arm, allows side to side adjustment of the arm, and attaches to any flat, smooth vertical surface.
- Page 6 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 Recommended practice for adjusting the angle of the offset brackets; In most applications you will want the pan and tilt head parallel to the wall or mounting surface.
- Page 7 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 There are three extension arm assembly sections available. Please specify when ordering. Each assembly is shown with dimensions that reflect the fully retracted and fully extended positions.
- Page 8 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 Each assembly is shown with dimensions that reflect the fully retracted and fully extended positions. These representations are shown for dimensional comparison only; supporting a screen straight out from a wall as shown is NOT recommended! info@practicalqualitysystems.com...
- Page 9 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 Installation Tips - How to Attach the VESA Pan and Tilt Head assembly to the back of a screen: 1.
- Page 10 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 Installation Tips for Screen Mounting Systems • 1. 1 Installation of this assembly must be performed by qualifed persons.
- Page 11 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 PN 80005-3036 Partial list of Compatible Touchscreen Monitors • Elo Touchscreen Monitor 0702L, 1002L, 1302L, 1502L, 2002L, 2202L, 2201L, 2402L, 2702L, 1515L, 1517L, 1523L,1715L, 1717L,1723L, 1902L, 1915L.
- Page 12 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 Locating a Screen or Printer mount and examining the Range of Motion of the arm(s). 1.1 Cut a section of blue painter’s tape that is the same width as the mounting plate and keep this handy.
- Page 13 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 PN 80005 Shown with optional Adapter plate for use with Ergotron track type 31 PN 50065 We believe in ethical SEO relevancy; the following section was included to assist the all-knowing algorithms in locating this page;...
- Page 14 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 Also available in a ceiling mount configuration in three lengths: The three mounting systems below are available in ceiling mount configuration with similar seven axis functionality.
- Page 15 Wall Mount with a 7 Axis Extendable Arm + Enhanced VESA 75-100mm Screen Pan and Tilt Head PN’s 80005, 80005-3036 & 80005-3642 PN 80005 Partial list of Compatible Touchscreen Computers, Interactive displays, All-in-One PCs • Elo Touchscreen Computer and Interactive displays 10-inch I-Series 4 for Android E389883, E411266, E390647, E411643.
