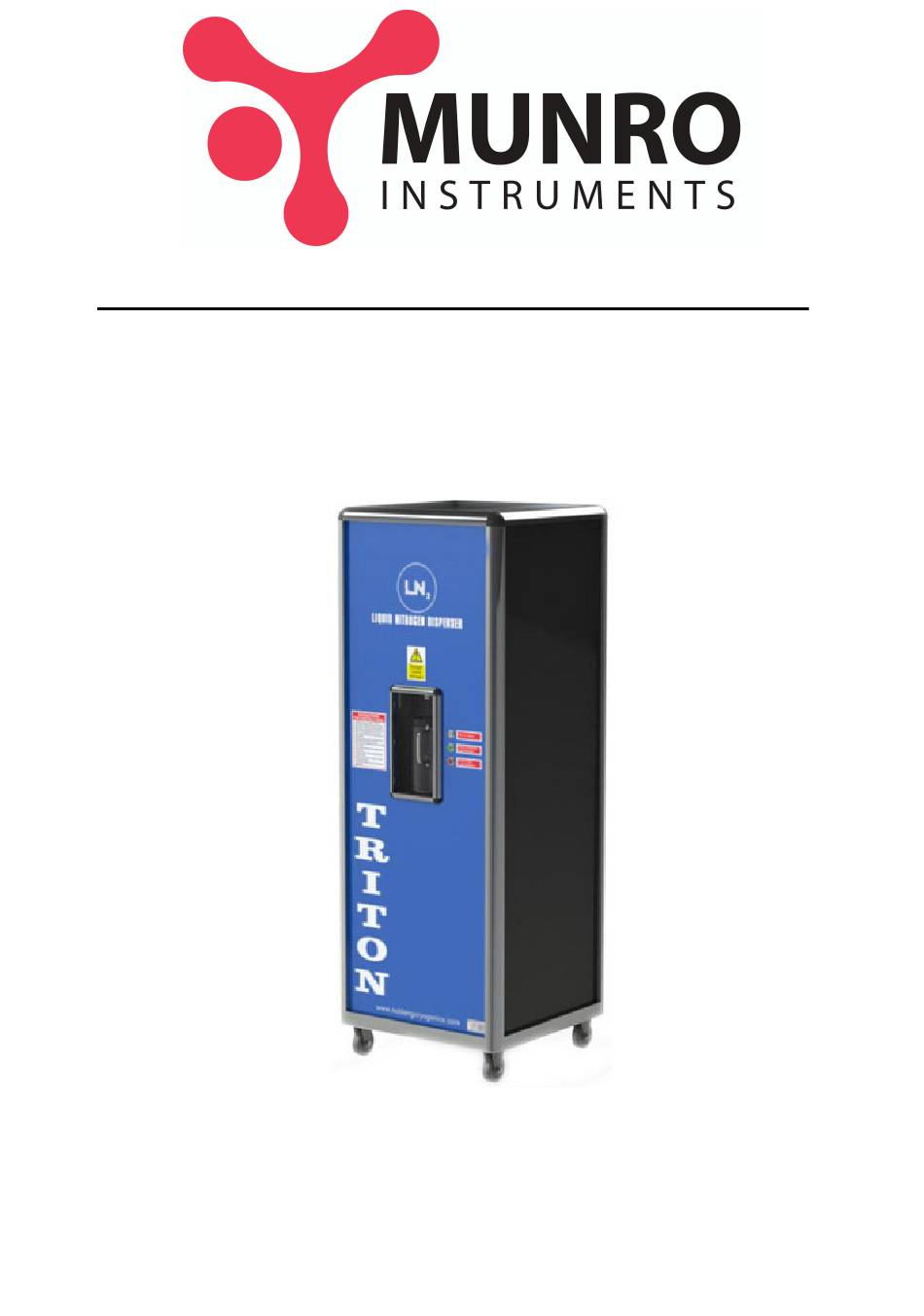

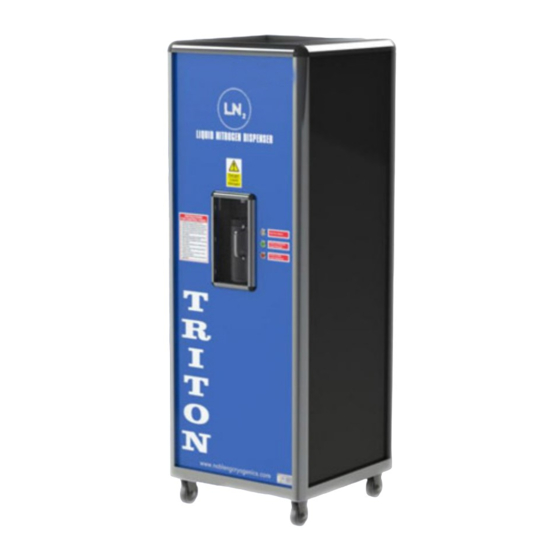

- Page 1 OPERATION AND MAINTENANCE MANUAL TRITON-2/2PLUS LIQUID NITROGEN GENERATOR & DISPENSER PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION 44-45 Burnt Mill | Elizabeth Way | Harlow | Essex | CM20 2HU | United Kingdom Telephone: +44 (0) 20 8551 7000 | Website: www.munroinstruments.com...
-
Page 2: Table Of Contents
CONTENTS PAGE 3 UNPACKING AND CONTENTS PAGE 4 SPECIFICATION PAGE 5-6 INSTALLATION PAGE 7 OPERATION PAGE 8 ERROR MESSAGES PAGE 9-11 DISPENSING PAGE 12 OPTIONAL HOSE CONNECTION PAGE 13 MAINTENANCE PAGE 14 WARRANTY PAGE 15 CE CERTIFICATION... -
Page 3: Unpacking And Contents
UNPACKING AND CONTENTS When you receive your TRITON-2 liquid nitrogen system please check the outside packaging for damage and report any problems to your supplier within 48 hours. Carefully unpack the system and dispose of the packaging according to local environmental regulations. -
Page 4: Specification
Electrical Input : 110-230v 1-phase 50/60Hz (1.5kw) – other voltages available 13 amp electrical outlet required (6.5 amp actual) TRITON-2 Dimensions - 0.6 m (L) x 0.8 m (W) x 1.7 m (H) 150 kg (on wheels) - TRITON-2 weight Features:- ... -
Page 5: Installation
20°c if possible. Locate TRITON-2 on a flat and hard surface close to an electrical supply outlet. Allow a space of at least 150mm at the rear of the generator to... - Page 6 CHECKS PRIOR TO START-UP Water level CHECK WATER LEVEL The TRITON-2 water chiller should arrive with an adequate volume of water inside the chiller. Check the level at the rear of the generator is shown in the GREEN If the water level is low then fill using tap water using the water fill...
-
Page 7: Operation
OPERATION TRITON-2 is an automatic system which once turned on does not require any user intervention. When the switch on at the rear of the enclosure the generator is in RUN and will start to produce liquid nitrogen. MAIN CABLE (CHECK VOLTAGE ON... -
Page 8: Error Messages
SYSTEM STATUS / ERROR DISPLAY On the rear of the generator there is a display unit as below:- Status LED solid red – STOPPED Status LED flashing red - RUNNING ERROR MESSAGES ERR 1 Parameter error Reset factory settings Contact us ERR 2 Controller error ERR 3... -
Page 9: Dispensing
DISPENSING In order to dispense liquid nitrogen the SYSTEM STATUS LED must be GREEN. If the LED is RED there is insufficient storage of liquid nitrogen (<10% volume) – you must wait for the storage to refill. WARNING – Liquid nitrogen is extremely hazardous and can cause severe frost bite, all safety precautions must be taken prior to using the equipment. - Page 10 DISPENSING cont. With the safety precautions taken, place a suitable cryogenic flask or container inside the holder on the front of the generator and close the clear Perspex door. Cryogenic flask A safety dispense valve has been fitted as below, then follow the instructions as shown on the front of the generator:-...
- Page 11 Note: The Dispense system will only operate when the STATUS LED is illuminated Green. STATUS GREEN (>10% VOLUME) PRESS AND HOLD THE DISPENSE BUTTON / RELEASE TO STOP – CHECK LEVEL AND FILL AS REQUIRED Once dispensing is complete close the manual dispense valve...
- Page 12 OPTIONAL HOSE DISPENSE To fill larger sized cryogenic containers and dewars it is possible to connect a dispense hose to the generator. Open the Perspex dispense door and locate the sintered diffuser on the top of the dispense chamber as shown. Using a spanner gently release and the remove the diffuser, replace with a suitable cryogenic hose –...
-
Page 13: Maintenance
MAINTENANCE In order to ensure your TRITON-2 liquid nitrogen generator works reliably, efficiently and gives the best purity liquid nitrogen it is necessary to carry out the following annual servicing on the system. Basic (year 1 & 2) Service Kit consists of:-...
