HOLOPHANE Dorchester Installation And Maintenance Instructions

HOLOPHANE HOLOPHANE
HOLOPHANE HOLOPHANE
AFTER INSTALLATION DELIVER THIS
MANUAL TO OWNER
IMPORTANT SAFETY INSTRUCTIONS
WARNING
– READ THESE INSTRUCTIONS
CAREFULLY BEFORE ATTEMPTING TO INSTALL OR
MAINTAIN THIS FIXTURE. WORK MUST BE DONE BY
QUALIFIED PERSONNEL.
WARNING
– BE CERTAIN THAT ALL ELECTRICAL
POWER IS DISCONNECTED
FROM THE FIXTURE BEFORE INSTALLING
OR MAINTAINING THE FIXTURE.
WARNING
– FOLLOW LAMP MANUFACTURER'S
OPERATING AND MAINTENANCE INSTRUCTIONS.
FAILURE TO FOLLOW THESE WARNINGS
MAY RESULT IN DEATH, INJURY OR SIGNIFICANT
PROPERTY DAMAGE.

1. INTRODUCTION

1.1 Product Description.

This product is designed to distribute specific patterns of light
•
on the surface below. The glass refractors have street side
"FRONT" orientations embossed on the flange.
The Dorchester luminaire is designed for easy maintenance.
•
The lamp can be accessed by disengaging the latch and
•
raising the top cover.
Electrical components are mounted on an easily removable
•
ballast assembly plate. Unlatch top cover and remove
refractor to access ballast assembly and socket.
®
Dorchester
GR1276
®
Installation and

1.2 Alternate Information Sources.

Holophane
Field Service Department
P.O. Box 3004
Newark, OH 43058-3004
(866) 759-1577

2. INSTALLATION

2.1 Tools and Material Required.

Table 1. Installation Tools and Materials
DESCRIPTION USE
Flat-end screwdriver Installation of electrical module
3/16" Allen wrench 3/8" set screws in pole fitter
Torque wrench Set screws
1/4" nutdriver or medium Ballast assembly plate
slotted screwdriver and wire way cover

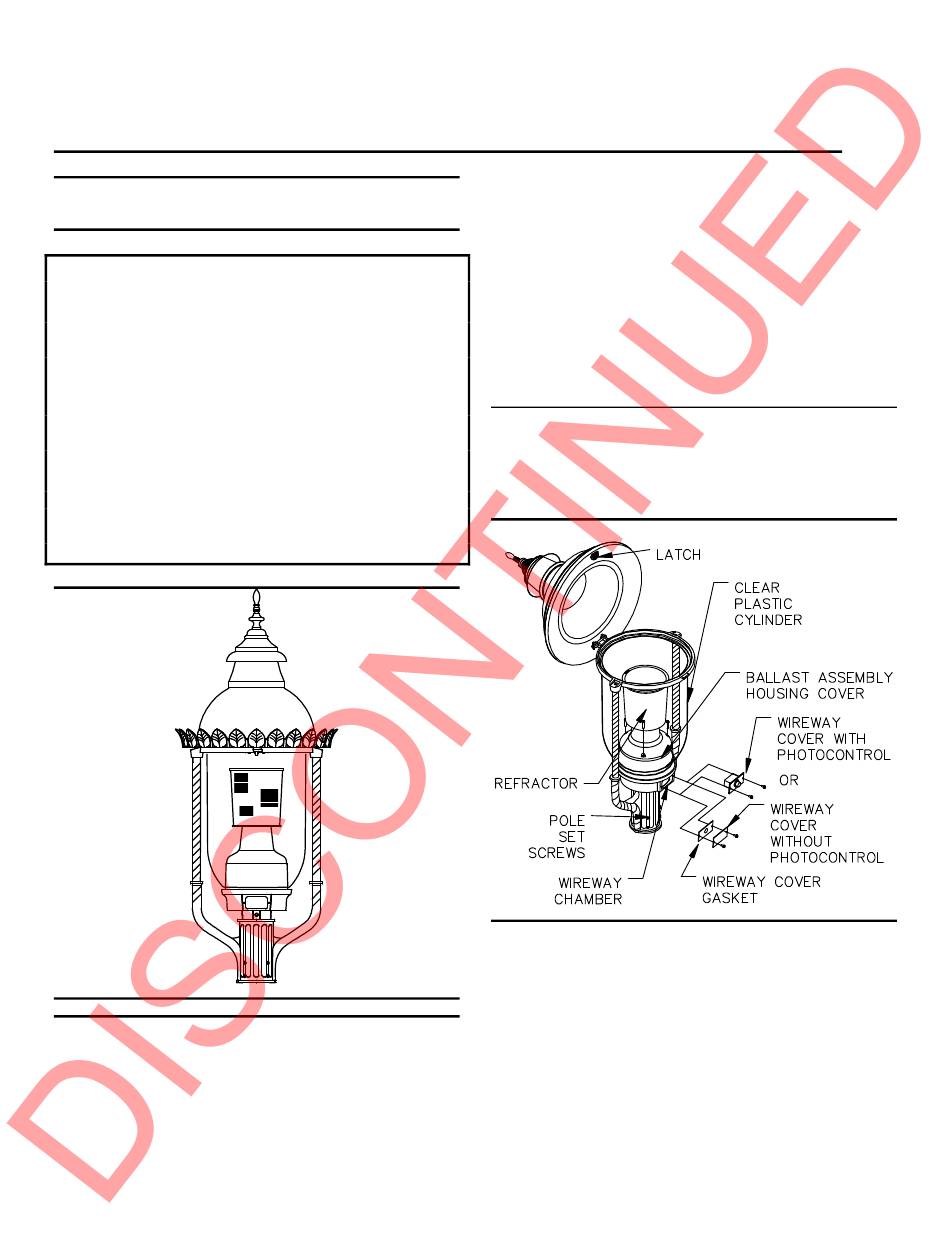

Figure 1

2.2 Fixture Installation.

2.2.1
Remove (2) screws to wireway cover and remove wireway
cover. See Figure 1. Feed supply leads from the pole through the
wireway hole.
2.2.2
Place and level the luminaire on the pole. Position with the
latch pointed toward the street. Alternate tightening of the eight
setscrews will assist in centering the luminaire on the post capital.
Tighten the eight setscrews to 10-12 ft. lbs.
2.2.3
Wire ballast and line leads accordingly. Connect incoming
ground wire to ground wire attached to inside of wiring chamber.
Connect incoming common wire to wire marked COM from the
ballast. If a single voltage ballast is used, check the voltage
number on the only remaining wire to verify the ballast voltage.
Connect this voltage wire. Note: Lead may require to be stripped.
If a multivolt ballast is used, find the correct voltage number
Maintenance
Manual
GR900
IM-142-A
