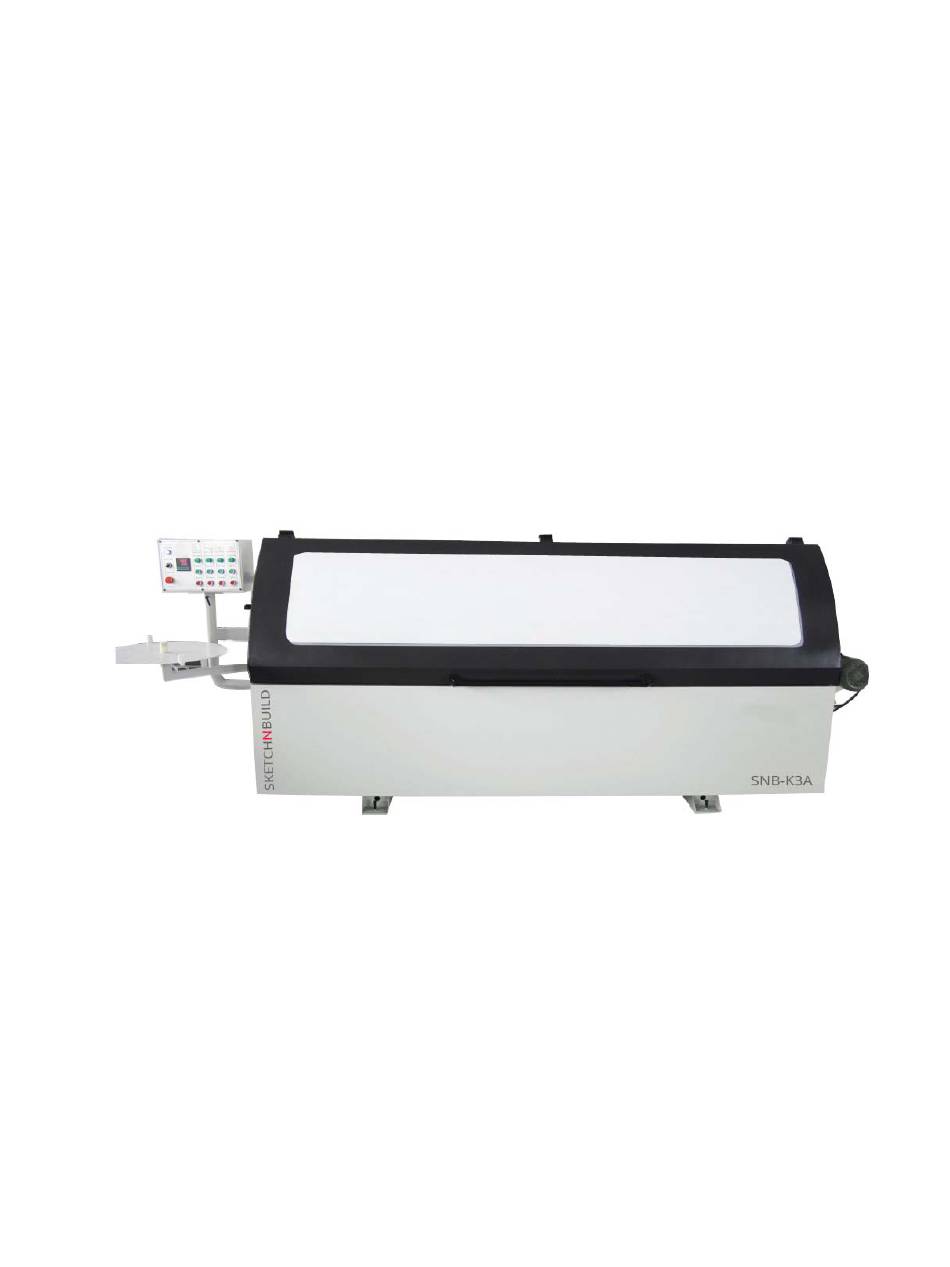

- Page 1 SNB‐K3A AUTOMATIC EDGE BANDER MANUAL SNB-K3A AUTOMATIC EDGE BANDER...
-
Page 2: Table Of Contents
Table of Contents Packing List…………………………………………………………………2 Foreword………………………………………………………………………3 Chapter 1：Safety feature flag graphic………………………………4 Chapter 2: Care and maintenance……………………………………….8 Chapter 3: Mechanical uses and features……………………………10 Chapter 4: Mechanical structure……………………………………….10 Chapter 5: The main technical parameters………………………….11 Chapter 6: Transport……………………………………………………….12 Chapter 7: Equipment Installation…………………………………….12 Chapter 8: Equipment use and adjustment…………………………….14 Chapter 9: Abnormal phenomenon and its elimination……………….23 Chapter 10: Thanks………………………………………………………….24... -
Page 3: Packing List
Packing List 1、 Automatic edge banding machine: 1 2、 Instructions: 3、 Tools： Allen wrench: 1 Cross screwdriver: 1 Flathead screwdriver: 1... -
Page 4: Foreword
Foreword Thank you for choosing our company's woodworking machinery products. Automatic edge banding machine Instructions mainly for construction, performance, safe operation, maintenance, and transportation, storage and so matters do a comprehensive, detailed, and efficient personnel to manage the economy, good use of the above equipment, provides the basic knowledge. This specification rules and guidelines will help you to safe and effective use of the machine. -
Page 5: Chapter 1：Safety Feature Flag Graphic
DANGER Said that if not evade the consequences of the risk will result in death or serious injury. CAUTION Said that if not avoid, potentially dangerous consequences that may result in lower or moderate injury or serious injury. Solemnly declare Due to property damage and personal injury caused by incorrect operation, the company is not responsible. - Page 6 （9） Before operating the operator shall conduct a comprehensive safety inspection, confirm the safety guards and safety devices of the machine before starting the machine to normal after all. （10） After machine maintenance, to ensure the safety devices and protective cover, complete and accurate installation in the original location.
- Page 7 EN847-1: blade and cutter, cutter blade and the rated speed of 1997 standard requirements should not lower than its maximum speed shaft. （3） Adjust the machine must be carried out in accordance with the provisions of this specification by professionals, avoid touching knives and dangerous moving parts.
- Page 8 the machine will last longer period of time, prohibit hand directly touch the surface of the melt glue pot and melt glue pot, to avoid burns. 1.3 Limitations of the surrounding environment： Place the machine on the operating environment requirements Referring to the Power Relative humidity...
-
Page 9: Chapter 2: Care And Maintenance
Chapter 2: Care and maintenance Disclaimer: This device is a high-precision machinery and equipment, the need for strict maintenance, strictly in accordance with the requirements of the equipment necessary maintenance. Due to lack of maintenance failures caused by maintenance, not free within the service range! In order to ensure the normal operation of the machine for a long time, it must perform regular maintenance and upkeep, partly due to the need of production, on the... - Page 10 Maintenance schedule Lubricants / Timetable Area Operation solvent a. The whole machine cleaning sweeps, wipe clean b. Clean up litter on the chain sprocket crawler c. Transmission parts Rust oil/ After the end The whole litter cleanup, waste silk 3﹟Molybdenum of the work machine d.
-
Page 11: Chapter 3: Mechanical Uses And Features
necessary to adjust Timely inspection, when the Air source The oil cup filled with Mobil VG32 IS0 oil container processor lubricating oil 3/4 level becomes Chapter 3: Mechanical use and characteristics USE The machine is set machine, electricity, gas as one of the high-tech, high-efficiency edge models. -
Page 12: Chapter 5: The Main Technical Parameters
Picture 1 Automatic edge banding machine 1、 Edge banding 2、end trimming 3、fine trimming 4、scraping 5、buffing 6、body Chapter 5: Technical parameter The main technical parameters of automatic edge banding machine sheet thickness 10-50mm edge thickness 0.4-3mm minimum working plate width ≥50mm minimum working length ≥140mm higher than the maximum size of... -
Page 13: Chapter 6: Transport
Fine trim motor 0.75kW*2.200Hz.18000r/min Buff motor 0.18kW*2.50Hz. 1400r/min heat 1.5kW Preheat 0.12kW Power 7.0kW Electric current Fine trim milling D=Ф68. d=Ф16(+0.017+0.006) End trim milling D=Ф100. d=Ф22 Hot melt (reference resources) 160-200℃ Machine size 3940×900×1800 (mm) Machine weight About 1500kg Chapter 6 : Transport 6.1 The machine can be carried through the body at the bottom of the forklift；... - Page 14 （6） the machine must be surrounded by the largest sheet and other obstacles to set aside 500mm free space. Warning: narrow working space can lead to serious personal injury. （7） in order to ensure the smooth machine, after placing the good machine, should adjust the adjustment screw, so that the central position of the fixed table vertical and horizontal horizontal meter readings are not more than 0.10/1000.
-
Page 15: Chapter 8: Equipment Use And Adjustment
be carried out. 7.2.4 Power after the first boot （1）After the power supply, turn on the power switch A. If the power indicator light is normal, the connection is correct. Such as electricity without the power indicator, should change the power supply to re open the power switch A, check the power indicator. （2）Confirm the correct connection, set the thermostat B to the required value. - Page 16 Figure 2 Figure 4 8.3 Control system（Figure 5） ： Turn on the power control switch "A" start button, control power on. Set the required temperature on the temperature control table B. When reaching the set temperature, after ten minutes press the conveyor belt switch "E" start button, conveyor belt running, press the corresponding switch motor operation.
- Page 17 feeding action. Edge with upstream and downstream zone with limiting blocks are high in the form of constraints and regulation to the attention of the press not loose not tight, in order to ensure the smooth and not to the upstream and downstream with. Cut off by quick exhaust valve with sealing, to ensure the rapid and effective cutting.
- Page 18 Figure 6 Figure 6-1 Figure 6-2 8.4.2 Edgeband other allowance adjustment 8.4.2.1 About: the workpiece edge material stretch adjustment; edgeband plate is higher than that of unilateral height adjustment; Note: the above two data ready standard adjustment at the factory, in the normal working state of the equipment without reset.
- Page 19 Actual temperature display Set temperature display Temperature increase key Temperature decrease key Figure 7 Temperature settings: hold down the temperature increase or reduce the temperature of the key to hold for 3 seconds, in the "set temperature display" in the number will gradually increase or decrease, in order to set the desired temperature value.
- Page 20 Figure 8 Glue quantity regulating handle 8.4.4 Cylinder working pressure adjustment： Due to changes in the edge thickness must be to pressure with a cylinder, edge compression roller cylinder, cut take the work pressure of the cylinder to make corresponding adjustment, value adjustment range is as follows: Working Working pressure Equipment...
- Page 21 All the equipment in the factory are the standard debugging, when the user to replace with different thickness of the edge should be readjusted. According to the different types of edge trimming machine, a cable repair (Figure 9) peace repair (Figure 10) two. 8.6.1.1 Tilt trim adjustment （1）Regulation edgeband thickness regulator (3), the counter shows the edge of the replacement of strip thickness;...
- Page 22 Figure 9 Figure 10 8.6.2 The cutting direction of the trimming knife should be opposite to the running direction of the plate (FIG. 11) Figure 11 8.7 Scraping system The edge banding machine, scraping edge system is to eliminate due to trimming non linear motion of the cutting caused by the traces, the sapwood on the lower part of the more smooth and clean.
- Page 23 arc regulating handle (2 and 5) is small, so that the amount of the circular arc is suitable. After adjustment, lock the handle. Note, in the regulation, because the regulating handle is more sensitive, so please do not substantially adjust the handle. Figure 12 8.8 Buffing system The edge machine buffing system is to clean up the plate processing and play a good...
-
Page 24: Chapter 9: Abnormal Phenomenon And Its Elimination
Figure 14 （1）Up and down buffing position: a. Loosen upper and lower buffing fastening screws (5 and 6) b. Move the motor to retreat to the appropriate location c. Tighten upper and lower buffing fastening screws (6 and 5) with a six angle wrench. （2）Top and bottom buffing up and down position: a. -
Page 25: Chapter 10: Thanks
welt position is not correct machine, it is kept in parallel with the feeding guide rail 9.2 End trimming system common abnormal phenomenon and its elimination： solution phenomenon reason The glue residue in the tool or Clear glue residue profiling on Endtimming is not perfect Saw blade too old or Install new saw blade or check...
