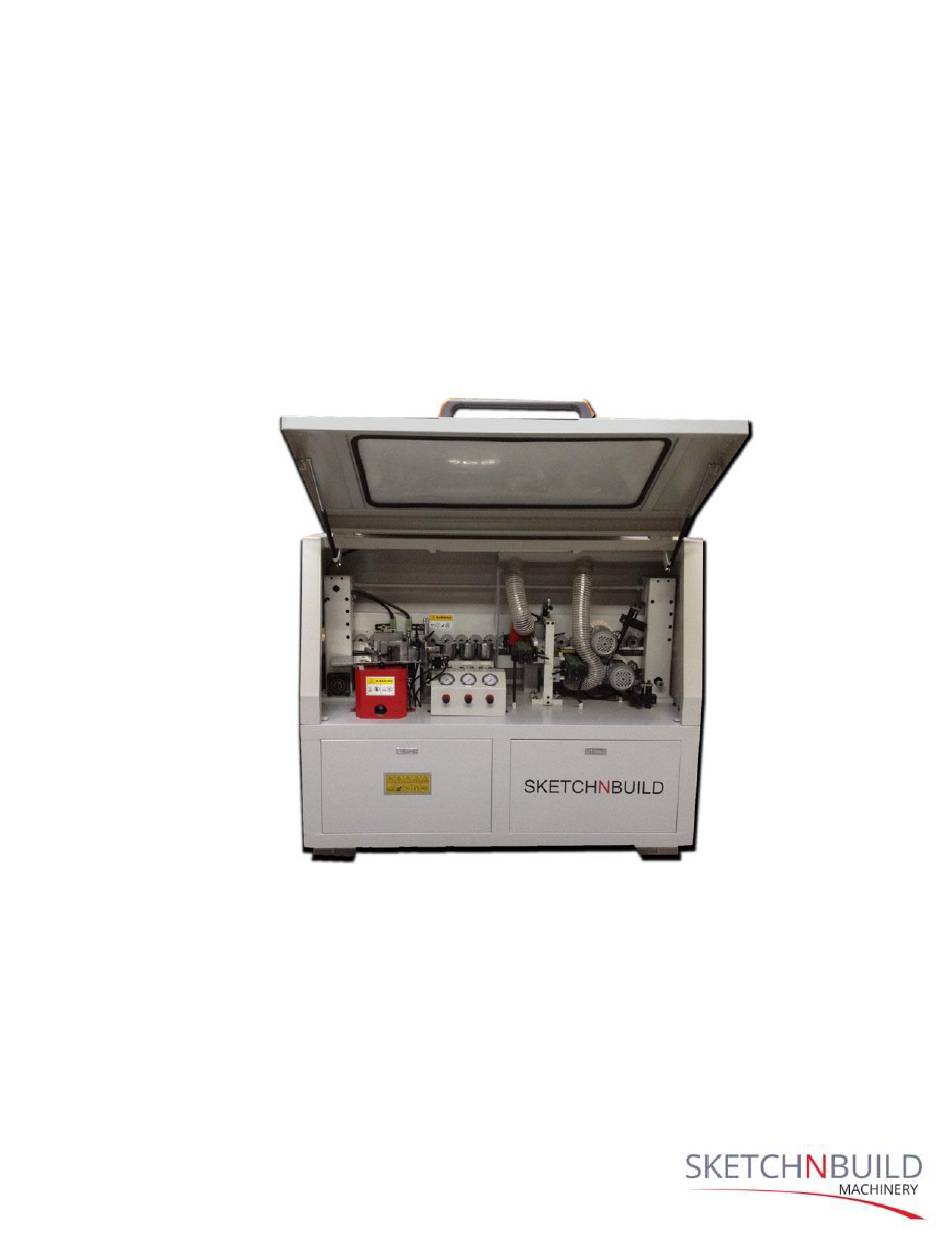

- Page 1 SNB-K96 SEMI-AUTOMATIC EDGE BANDER MANUAL SNB-K96 SEMI-AUTOMATIC EDGE BANDER 6/2016...
-
Page 2: Table Of Contents
Table of Contents Packing List…………………………………………………………………3 Foreword………………………………………………………………………4 Chapter 1：Safety feature flag graphic………………………………5 Chapter 2: Care and maintenance……………………………………….9 Chapter 3: Mechanical uses and features……………………………10 Chapter 4: Mechanical structure……………………………………….11 Chapter 5: The main technical parameters………………………….11 Chapter 6: Transport……………………………………………………….12 Chapter 7: Equipment Installation…………………………………….13 Chapter 8: Equipment use and adjustment…………………………….14 Chapter 9: Abnormal phenomenon and its elimination……………….22 Chapter 10: Thanks………………………………………………………….23... -
Page 3: Foreword
Foreword Thank you for choosing our company's woodworking machinery products. Automatic edge banding machine Instructions mainly for construction, performance, safe operation, maintenance, and transportation, storage and so matters do a comprehensive, detailed, and efficient personnel to manage the economy, good use of the above equipment, provides the basic knowledge. This specification rules and guidelines will help you to safe and effective use of the machine. -
Page 4: Chapter 1：Safety Feature Flag Graphic
Due to property damage and personal injury caused by incorrect operation, the company is not responsible. Chapter 1：Safety feature flag graphic 1.1 General Security （1） Before the operation, the operator must read the instructions carefully and completely understood. Security managers should confirm skilled operator can operate the machine. - Page 5 replacement and cleaning machine debugging. （12） Replacement parts must use original parts, otherwise it will cause danger or damage to the machine. （13） In the case of the machine must be running unattended operator when the operator leaves the machine, you must turn off the power. （14）...
- Page 6 should be of sufficient air volume and velocity, which air volume of 800m / h, a flow rate of 25m / s. （5） Must cut off the power supply, gas supply when changing tools. （6） Air Ministry during the repair work, disconnect the gas line to prevent accidental operation of pneumatic components danger.
- Page 7 1.4 Noise statement： Noise measurements were performed according to standard IS07960. The machine noise level when the load is not greater than 82dB (A). 1.5 Logo Graphic: ROLLING HIGH TEMPERATURE ROLLING DANGEROUS KEEP HANDS AWAY DO NOT TOUCH KEEP HANDS AWAY KEEP HANDS AWAY DANGEROUS ADD INFUSE...
-
Page 8: Chapter 2: Care And Maintenance
Chapter 2: Care and maintenance Disclaimer: This device is a high-precision machinery and equipment, the need for strict maintenance, strictly in accordance with the requirements of the equipment necessary maintenance. Due to lack of maintenance failures caused by maintenance, not free within the service range! In order to ensure the normal operation of the machine for a long time, it must perform regular maintenance and upkeep, partly due to the need of production, on the... -
Page 9: Chapter 3: Mechanical Uses And Features
Maintenance schedule Lubricants / Timetable Area Operation solvent a. The whole machine cleaning sweeps, wipe clean b. Clean up litter on the chain sprocket crawler Rust oil/ c. Transmission parts litter After the end of 3﹟Molybdenum The whole machine cleanup, waste silk the work day disulfide d. -
Page 10: Chapter 4: Mechanical Structure
Chapter 3: Mechanical use and characteristics USE The machine is set machine, electricity, gas as one of the high-tech, high-efficiency edge models. It is mainly used for roll edge type and hot melt adhesive and wood panels, particleboard, blockboard, medium density fiberboard and other sheet metal straight edge bonding and dressing, the processing after the sheet edge is evenly and firmly, trimming smooth and more durable and beautiful. -
Page 11: Chapter 6: Transport
Chapter 5: Technical parameter The main technical parameters of semi-auto edge banding machine sheet thickness 10-50mm edge thickness 0.4-3mm minimum working plate width ≥50mm minimum working length ≥140mm higher than the maximum size of sheet sapwood (per side) feed speed 13m/min(constant speed) compressed air pressure 0.7Mpa... -
Page 12: Chapter 7: Equipment Installation
（2） the operation room should be cement ground, and check whether the ground is smooth. Avoid shaking when the machine is adjusted. （3） should put the machine in close proximity to the power supply, air outlet, the waste pumping outlet position, the workplace should ensure adequate lighting, the luminous flux of not less than 500Lx. -
Page 13: Chapter 8: Equipment Use And Adjustment
Figure 2 （1）All emergency stop button reset. （2）When the protective cover is not opened, the total power switch is closed, and the starting switch of the control power switch A is opened, and the operation can be carried out. 7.2.4 Power after the first boot （1）After the power supply, turn on the power switch A. - Page 14 8.1 Plate thickness adjustment（Figure 3） When the change of the thickness of the plate must be of material pressing height corresponding adjustment: according to the thickness of the plate with special crank rotation adjustment rod (1) to realize the numerical and the plate thickness is consistent with that of the position of monitor.
- Page 15 Figure 5 8.4 Edge system： This system adopts the edge banding machine mounted under the hot glue box, double helix type glue feeding structure, ensure uniform glue glue feeding convenient. Edge belt into the machine, roll edge away straight edge banding conveyor belt with sealing device for workpiece linkage, with knurled wheel conveyor belt and the cylinder pressure zone, knurled wheel is used for thin and soft edge banding.
- Page 16 c. According to the edge with the height and the adjustment of edge with the height of the positioning rod (1) position, pay attention to rods with minimum position and edge with retention of the reasonable clearance, the edge belt is not stuck also will not shake, after a good tune, tighten the regulating handle (2).
- Page 17 Figure 6-1 Figure 6-2 8.4.2 Edgeband other allowance adjustment 8.4.2.1 About: the workpiece edge material stretch adjustment; edgeband plate is higher than that of unilateral height adjustment; Note: the above two data ready standard adjustment at the factory, in the normal working state of the equipment without reset.
- Page 18 b. This machine is recommended to use the hot melt adhesive, it is recommended (and temperature) temperature 190-200℃, sticky at best for machinery, slow running. Note: when the heating temperature exceeds 250 ℃, hot glue decomposition failure. c. Note: adhesive hot bath is heated to operating temperature, should be extended 10 minutes to be coated rollers to operating temperature before startup, otherwise it might damage cots.
- Page 19 This system is for the side edge of the upper part of the lower sealing material to repair the extra sheet edge after processing. Repair system using high speed variable motor (0.75KW*2.200Hz.18000RPM) and profile modeling tracking structure, ensure the motor trimming plate on the lower part of the smooth neat. Repair edge profiling at the factory has made a precise adjustment, but in the actual production process due to changes in the band edge and the edge plate specifications, material, may adjust the following parts:...
- Page 20 8.6.2 The cutting direction of the trimming knife should be opposite to the running direction of the plate (FIG. 11) Figure 11 8.7 Buffing system The edge machine buffing system is to clean up the plate processing and play a good role in polishing.
-
Page 21: Chapter 9: Abnormal Phenomenon And Its Elimination
Figure 15 Figure 16 8.8 Preheat In the low temperature environment, influence of edge effect, the preheating switch can be turned on the left side of the fuselage, for preheating plate. (Figure 16) Chapter 9： Abnormal phenomenon and its elimination 9.1 The common abnormal phenomenon and edge edgeing system：... -
Page 22: Chapter 10: Thanks
the beginning of the stage Edge gap Trimming knife edge The replacement of the knife material with broken or too edge repair, choose suitable wide edgeband width jagged edge Cutter radial too large Install new trimming knife Chapter 10： Thanks I sincerely thank you for your purchase of our company's woodworking machinery products, hope that our products can contribute to your career development! We will be happy to serve you!
