SSZN SR Series Quick Start Manual

Hide thumbs Also See for SR Series:

Hardware manual (63 pages)

Table Of Contents

Table of Contents

Quick Links

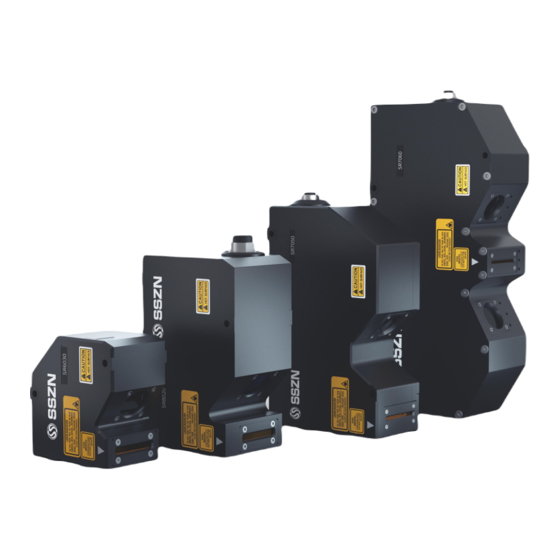

SR Series 3D Camera

——Quick Start Guide

Table of Contents

Need help?

Do you have a question about the SR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SSZN SR Series

Page 1: Sr6000/Sr7000/Sr8000 Series 3D Camera
SR Series 3D Camera ——Quick Start Guide...
Page 2: Table Of Contents
Connecting the Power Supply to the Controller................17 How to Use the Terminal Block......................18 Software Connection............................20 Install EdgeImaging software......................20 Connecting the controller and the PC....................21 Product Selection............................23 Dimensions..............................27 2 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 3: Preparation Before Installation
Be sure to read this guide before use. This guide aims to provide instructions for user to use the SR series 3D cameras quickly. For detailed user’s guide, you can download the Hardware Manual of SR Series 3D Camera from SSZN official home page website at http://www.cnsszn.com.
Page 4: Camera Description
Emit the laser beam for measurement. Sensor (transmitter) Protected by a glass cover. Connected with the camera cable. Cable connector Please refer to “6.2 Connecting the controller and the Camera”. 4 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 5: Description Of Camera Sr7000
Emit the laser beam for measurement. Sensor (transmitter) Protected by a glass cover. Connected with the camera cable. Cable connector Please refer to “6.2 Connecting the controller and the Camera”. 5 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 6: Description Of Camera Sr8000
Used for controlling signal input or output. Used for pulse signal input from the encoder. I/O terminal block Used for RS-232 connection; and used for power supply of I/O insulating part. 6 / 43 ©2021 SSZN All Right Reserved Quick Start Guide of SR Series...
Page 7: Precautions For Mounting The Camera
Shenzhen Sincevision Technology Co.Ltd www.cnsszn.com Please refer to “Hardware Manual of SR Series 3D Camera”. 24V power input Used for supply of the power source (DC24V). terminal block Left: +24V, middle: 0V, right: Shell and GND Ethernet port RJ45 Connect to a personal computer or a switch with the Ethernet cable. (RJ-45...
Page 8: Precautions For Cable Use
Be sure to connect the camera to a metallic plate for better heat dissipation. When using two cameras, pay attention to mutual interference area to prevent mutual interference from each other. For more information, please refer to “Software Manual of SR Series 3D Camera” provided together with the product.
Page 9 70mm from the connector plug to keep it relatively static with the camera. Figure 5- 5 Fixed Camera and Camera Cable Diagram 9 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 11 1” and “Figure 6 3 I/O Terminal Wiring Diagram 3”. For the “Trigger mode” Setting in EdgeImaging, please refer to “Software Manual of SR Series 3D Camera”. 11 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 12: Connection Method For Continuous Trigger Mode
Shenzhen Sincevision Technology Co.Ltd www.cnsszn.com 6.1.1 Connection method for continuous trigger mode Figure 6- 2 I/O Terminal Wiring Diagram 1 12 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 13: Connection Method For External Trigger Mode
Shenzhen Sincevision Technology Co.Ltd www.cnsszn.com 6.1.2 Connection method for external trigger mode Figure 6- 3 I/O Terminal Wiring Diagram 2 13 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 14: Connection Method For Encoder Trigger Mode
Shenzhen Sincevision Technology Co.Ltd www.cnsszn.com 6.1.3 Connection method for encoder trigger mode Figure 6- 3 I/O Terminal Wiring Diagram 3 14 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 15: Cautions For Wiring
When there is a input signal in PIN11 all the time, the start of measurement (PIN14) works in level mode and the end of measurement (PIN15) is invalid. Figure 6-6 shows the signal sequence diagram. 15 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 17: Connecting The Controller And The Camera
Use a wire between AWG14 and AWG20.  If you are using a solderless terminal, use a terminal that has the following size  and suits the M3 screw: 17 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 18: How To Use The Terminal Block
The wire should be inserted all the way into the terminal block.  Step1 Insert the wire into “part b” while pushing in “part a” of the terminal block with a flathead screwdriver. 18 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 19 Figure 6- 10 Terminal Block Wiring Diagram Step 2 When the wire is inserted to the end, remove the screwdriver. Then lightly pull the wire to make sure it is fixed firmly. 19 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 20: Software Connection
Follow the steps in the installation wizard. Figure 7- 1 On the Finish page, click Finish to exit. Then, the EdgeImaging software is installed successfully. Figure 7- 2 20 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 21: Connecting The Controller And The Pc
IP address refer to the Figure 7-4. Figure 7- 4 Start the EdgeImaging software, in the PC communication configuration window, the controller’s IP address is shown here. 21 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 22 In the list of the window, double click the controller’s IP address to connect the controller. When the controller is connected, all of the Edgeimaging software’s functions can be used. 22 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 23: Product Selection
Protection Structure IP67, Conforming with the IEC60529 Standard 160x98x 228.5x107 146x93x 146x93x 190x93x 190x93x 173x88x 275x98x 290x Dimension (mm) 100x59 Mass (g) 1500 1145 1300 1500 23 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 25 Conforming with the IEC 68-2-6 Fc Standard Protection Structure IP67, Conforming with the IEC60529 Standard Dimension (mm) 78.5x76x45.4 95.5x82.2x45.4 95.5x82.2x45.4 95.5x82.2x45.4 132.5x82.2x45.4 Mass (g) Camera cable specification SCB-HCAM-HB1-3m、SCB-HCAM-HB1-10m 25 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 26 Vibration Resistance Conforming with the IEC 68-2-6 Fc Standard Protection Structure IP67, Conforming with the IEC60529 Standard Dimension (mm) 125.5x74x55 123.5x84x55 Mass (g) Camera cable specification SCB-HCAM-HB1-3m、SCB-HCAM-HB1-10m 26 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
Page 27: Dimensions
Shenzhen Sincevision Technology Co.Ltd www.cnsszn.com 9 Dimensions Figure 9- 1 Camera SR7050 Dimension: unit (mm) 27 / 43 Quick Start Guide of SR Series ©2021 SSZN All Right Reserved...
