- Page 1 86192 Gloss Meter User Manual V2.1 Please read this manual carefully before using and reserve it for reference. 5-20-2021 Page 1 of 7...
-
Page 2: Product Introduction

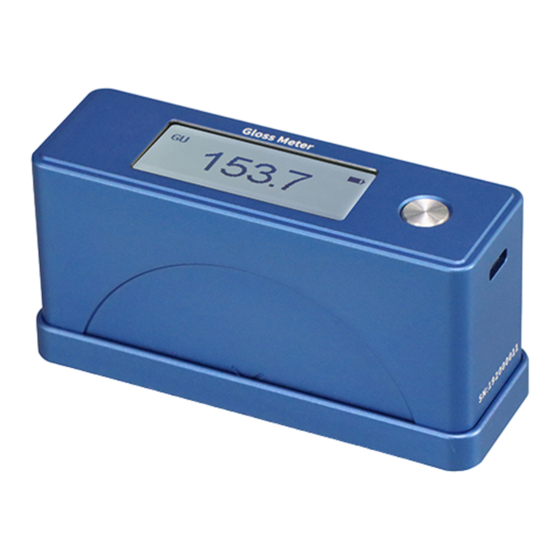

I. Product Introduction The instrument is a hand-held gloss meter for professional surface gloss test on paint, coating, ink, plastic, paper, ceramic tile, ceramic, stone, metal and electroplating layer, etc. The instrument is easy to use, put and measure, no need to press the button. In addition to the normal model, QC mode can be set for QC detection. -
Page 3: Operation
Working Temperature 10~45℃,0~85%RH (no condensation) Storage Temperature -10~60℃,0~85%RH (no condensation) III. Features Provide real time measurement and put-and-measure services without pressing button. Detect samples quickly with QC judging function. The environmental temperature compensation function guarantees long-term calibration stability. Support USB transmission and provide PC operating software, it can be on-line operated with PC to generate test report. - Page 4 3. Calibration If the meter gets powered on in calibration holder, it will enter the calibration interface. The user can perform the calibration operation according to the prompts, the instrument will enter measurement interface after the calibration. If it is not powered on in the calibration holder, it will skip the calibration and enter the measurement interface directly.
- Page 5 the measurement data is held on the display. To measure again, press the button to cancel the "HOLD" state and return to the "Measuring" state. (2) QC Mode If the instrument is set to QC mode, remove the calibration holder after calibration, place the measuring port of the instrument on the surface of the object to measure, short press the button to measure, the instrument will judge whether the measured value is qualified.
- Page 6 VI. Precautions 1. The temperature compensation function guarantees long-term calibration stability, it is recommended to calibrate once a week. If the environmental temperature changes significantly, please recalibrate 2. The measuring port of the instrument shall be attached to the surface of the object to avoid leakage of external light.
-
Page 7: Packing List
discharged and damaged. 9. The recommended calibration period is once a year and the factory provides calibration services. VII. Packing List Description Quantity Unit Gloss Meter USB Data Cable USB Disk (software) Special Lens Cloth User Manual Certificate / Warranty Card VIII.
