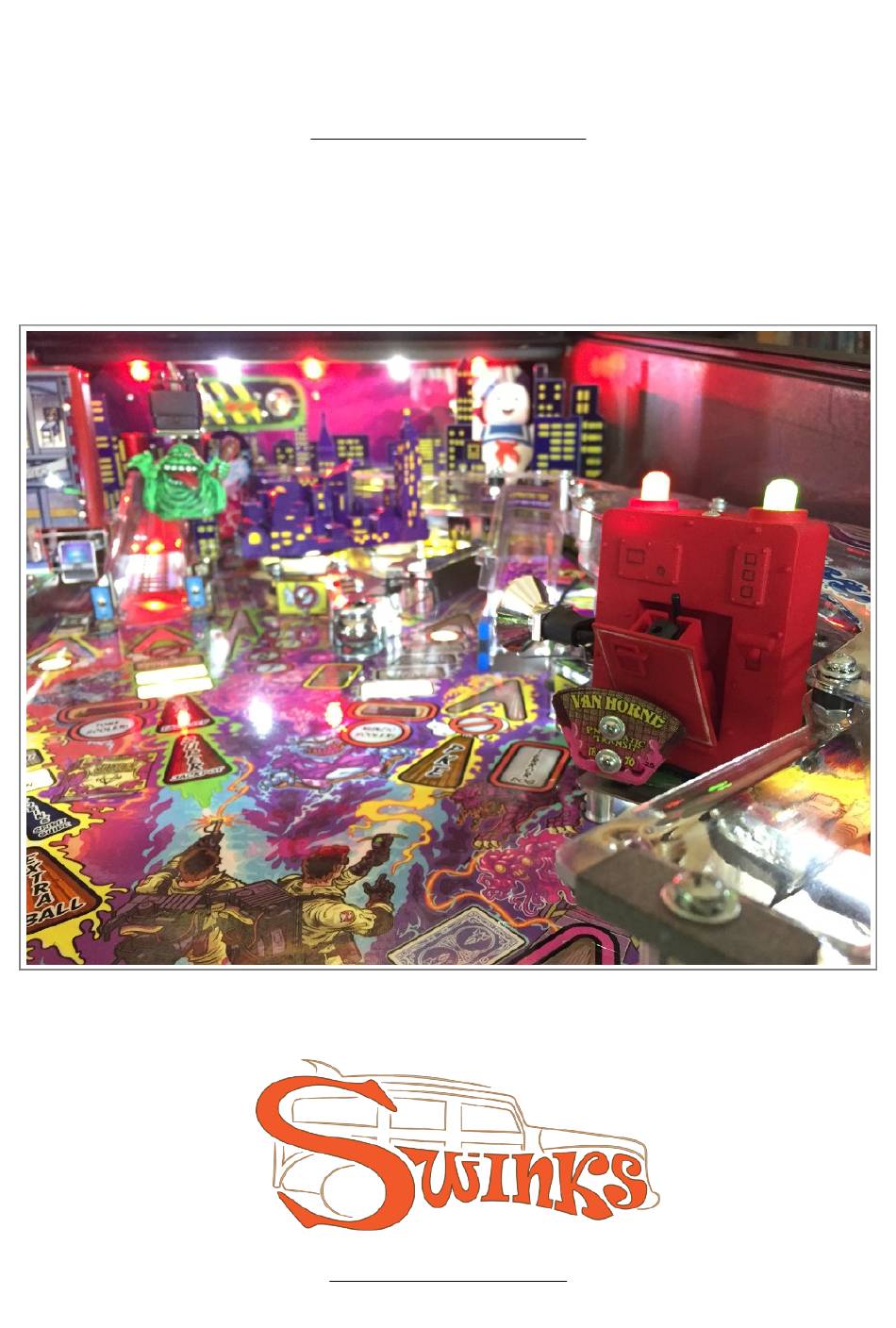

Stern Pinball
Ghostbusters (GB)
Storage Facility Mod
for Pro Level Machines
Thank you for your interest & support and I hope you will enjoy this mod for many years to come.
This is a mod that to owners of a Ghostbusters Pro and the mod is totally reversible. It uses the 2
light boards from the original plastic and still lights up to show your progress when you are
building up your multiball.
Proudly Designed and Manufactured by
www.swinks.com.au
Page
1
of
14
Rev 3 - manual
1-8-22
Advertisement
Related Manuals for Swinks Stern Pinball Ghostbusters
Summary of Contents for Swinks Stern Pinball Ghostbusters
- Page 1 This is a mod that to owners of a Ghostbusters Pro and the mod is totally reversible. It uses the 2 light boards from the original plastic and still lights up to show your progress when you are building up your multiball. Proudly Designed and Manufactured by www.swinks.com.au Page Rev 3 - manual 1-8-22...
- Page 2 1. Mod Parts All parts are purchased from a professional 3D printing company (therefore not home printed - these are solid nylon) and then I paint a few details (not shown in the below image) and do an assembly check before packaging and sending off to you to install & enjoy.
-
Page 3: Tools Required
2. Tools Required No tools are supplied but the following tools will be required to install this mod: • Small Shifter / Spanner • Screwdriver - Philips and Straight Blade Page Rev 3 - manual 1-8-22... - Page 4 3. Remove Parts from your Game You need to first power off your game and then remove the Spot Light Post as well as the Storage Facility Plastic which has the LED PCB panels as part of the plastic - these will be re-used in your new mod.
- Page 5 Remove the spotlight post from the top of the plastic - ensure not to loose any of the washers. Now remove the Storage Facility Plastic from 2 small 90 degree metal brackets by removing the 2 x screws - do not lose the screws or washers Page Rev 3 - manual 1-8-22...
- Page 6 4. Install the Mod Base and Spotlight Now re-use the screws that fastened the plastic to now fasten the base to the same brackets that supported the plastic Now re-install the spotlight post and spotlight as per originally mounted. Page Rev 3 - manual 1-8-22...
- Page 7 5. Fitting the Lighting & Bulb Set First remove the LED PCB boards and green and red caps from the original plastic. Put a little bit of tape on each LED PCB board so you know which is the green boards.
- Page 8 Now to install the LED lens and LED Boards into the Containment Mod as per the below 3D Model image as this will better detail the required assembly. First insert the semi clear domes into the provided holes - the shorter one goes into the RHS and thicker / longer one to the LHS.
- Page 9 You will notice a recess inside the cabinet this is for an extra Comet Star Post LED board to add extra lighting if desired and connect to a feature globe for extra effect - Note provided with the mod. Use a dab of hot glue to hold the board in place. Page Rev 3 - manual 1-8-22...
- Page 10 6. Installing the Containment Cabinet to the Mod Base Now that the feature lighting is installed, the Containment Cabinet can be located over the mod base mount. You will notice that the base and the bottom of the cabinet have a small box section of the base plate.
- Page 11 Then take the locking pin pin and drop it through the hole in the cabinet with the slot angled towards the flippers. Page Rev 3 - manual 1-8-22...
- Page 12 Then use a wide thick blade screw driver to turn 90 degrees which then locks the cabinet to the base. Also not in the above photo 2 pins behind the locking pin - the cabinet door has 2 x arms coming off with 2 holes in them.
- Page 13 The last part is installing the Ghost Trap. Slide the ghost trap into the door storage chute and your mod is complete - this will not fall out. Enjoy Page Rev 3 - manual 1-8-22...
- Page 14 Swinks Pinball reserves the right to deny any return to us or exchange. Refunds are not given. Freight will be covered by Swinks Pinball on the return trip back to you only and will not cover the postage to us.
