Stern Pinball
Ghostbusters (GB)
Containment Mod
for Pro Level Machines

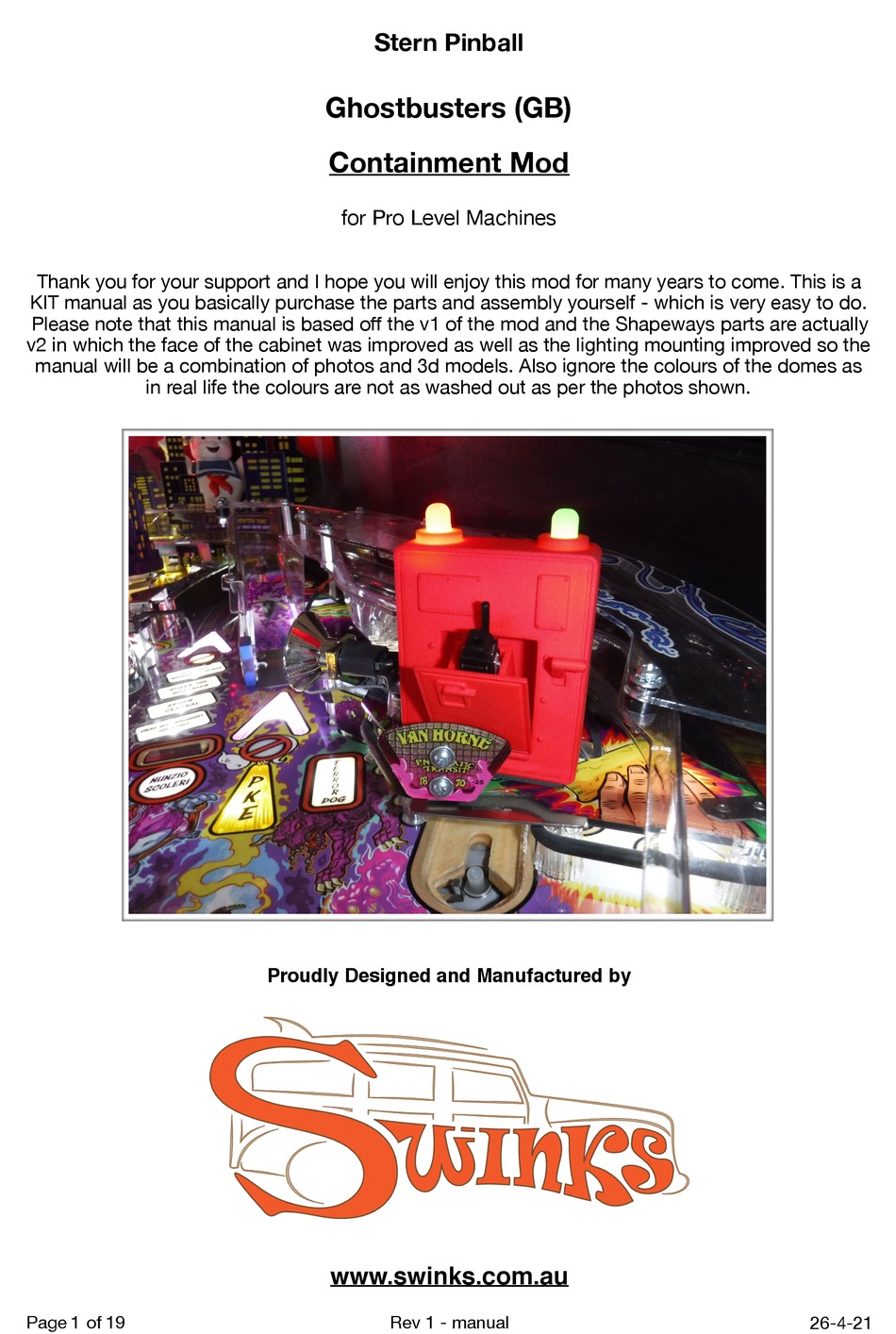

Thank you for your support and I hope you will enjoy this mod for many years to come. This is a
KIT manual as you basically purchase the parts and assembly yourself - which is very easy to do.
Please note that this manual is based off the v1 of the mod and the Shapeways parts are actually
v2 in which the face of the cabinet was improved as well as the lighting mounting improved so the
manual will be a combination of photos and 3d models. Also ignore the colours of the domes as
in real life the colours are not as washed out as per the photos shown.
Proudly Designed and Manufactured by
www.swinks.com.au
Page
1
of
19
Rev 1 - manual
26-4-21
Advertisement
Related Manuals for Swinks Stern Pinball Ghostbusters
Summary of Contents for Swinks Stern Pinball Ghostbusters
- Page 1 3d models. Also ignore the colours of the domes as in real life the colours are not as washed out as per the photos shown. Proudly Designed and Manufactured by www.swinks.com.au Page Rev 1 - manual...
- Page 2 1. Purchase your Parts All parts are purchased directly from Shapeways who are in the USA or The Netherlands, please use the link below or search swinkscontainment at Shapeways. https://www.shapeways.com/marketplace?q=swinkscontainment&sort= Note 1: I will have a ghost trap coming soon which will slide into the door compartment. Note 2: prices shown below are in USD on the 25-4-21 - these may increase or decrease - depending of Shapeways pricing system.
- Page 3 2. Part Preparation No parts need to be painted if you don’t want to, though you can enhance features with a little bit of paint if desired and if you have the skills to do so. 2 parts are made up of a few parts in one print: The black containment base also has a pin built in which is a separate part The containment bulb set Use a pair of side cutters or a sharp hobby knife to separate and then trim the small joining...
- Page 4 Now before installing the mod please practice assembling the mod so you understand the locking pin. Align these parts to practise the fitting together. Slide the top over the base and then drop the pin into the hole. Page Rev 1 - manual 26-4-21...
- Page 5 Then use a coin in the pin slot and turn the pin 90 degrees which will then lock the containment unit to the base. Now get the front containment door which will have 2 holes in it. Page Rev 1 - manual 26-4-21...
- Page 6 Then install the door with the 2 brackets with holes onto the pins inside of the cabinet and push down - do not force it - if tight STOP and remove and take a small drill and drill through the holes to make it fractionally larger so just a nice fit. Note 3: I will soon provide an option for a ghost trap to fit into the door.
- Page 7 Now back to preparing the parts for finally assembly. Take the individual bulb domes and install in the top of the containment unit and drop a dab of superglue or hot glue to ensure they stay in place. Note 4: v2 of the mod will not have a pin there it will have a hole where a screw is installed to hold all the parts (Stern’s LED Boards).
- Page 8 Here is a 3D model view of how the v2 will look in which you can see the differences in the bulb domes the remaining recess is filled in with the coloured inserts. It will look like this from the front once the bulb domes are installed. Page Rev 1 - manual 26-4-21...
- Page 9 Here is the view of the v2 as per 3D Model image. You will notice the slight differences in the 2 panels with some button markings now as well as bolts around the outer side of the cabinet. Also the handle does not move. Page Rev 1 - manual 26-4-21...
- Page 10 3. Remove Parts from your Game You need to first power off your game and then remove the Spot Light Post as well as the Storage Facility Plastic which has the LED panels as part of the plastic - this will be re- used in your new mod.
- Page 11 Remove the spotlight post. Now remove the Storage Facility Plastic from 2 small 90 degree metal brackets. Page Rev 1 - manual 26-4-21...
- Page 12 4. Install the Mod Base and Spotlight Now re-use the screws that fastened the plastic to now fasten the base to the same brackets that supported the plastic. Page Rev 1 - manual 26-4-21...
- Page 13 Now re-install the spotlight post and spotlight as per originally mounted. Page Rev 1 - manual 26-4-21...
- Page 14 5. Fitting the Lighting & Bulb Set Remove the LED boards and green and red caps from the original plastic. Put a little bit of tape on each LED board so you know which is the green boards. Note 7: Ensure to keep the bolts that hold the LED boards in place as well as the plastic incase you want to return the game back to it’s original state.
- Page 15 Now to install the LED lens and LED Boards into the Containment Mod as per the below 3D Model image as this will be your version of mod which is different to my original v1 design in which that design had a slight issue to installing these parts over a pin. In the v2 the lens and boards are locked into place with the components from the original plastic.
- Page 16 You will notice a recess for an extra LED board that you can install a small Comet Star Post LED board to add extra lighting if desired and connect to a feature globe for extra effect. Use a dab of hot glue to hold the board in place. Using this feature is up to you in what to link it to.
- Page 17 6. Installing the Containment Unit to the Mod Base Connect your wiring of the 2 x LED boards and then locate your containment mod over the bracket. Then take the pin and drop it through the hole and twist 90 degrees to lock the mod into place.
- Page 18 The last part is the Ghost Trap. My unit has one from an action figure set but I will soon recreate it so it can complete the look as well. Page Rev 1 - manual 26-4-21...
- Page 19 We will repair or replace/exchange components based on our analysis of the problem. Swinks Pinball reserves the right to deny any return to us or exchange. Refunds are not given. Freight will be covered by Swinks Pinball on the return trip back to you only and will not cover the postage to us..
