FEATURES
• Clockwise opening
• On/off volume control rough valve
• 3/4" NPT inlet/outlet
• Includes 2 3/4" extension kit. Extension may be cut to
length required.
• Back of valve to finished wall 2 ½" min., 4 3/8" max.
• Not suitable for deck installations
• Must order trim to complete
• Stem and cartridge are one piece
• Order cartridge kit with all thread to replace: BF17511KIT
• Made in Germany
Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com

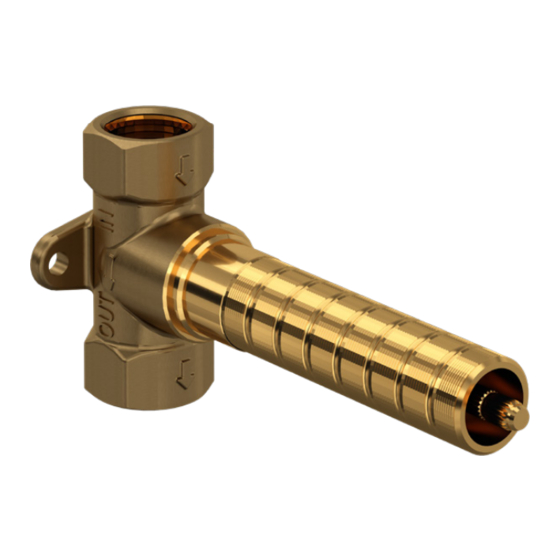

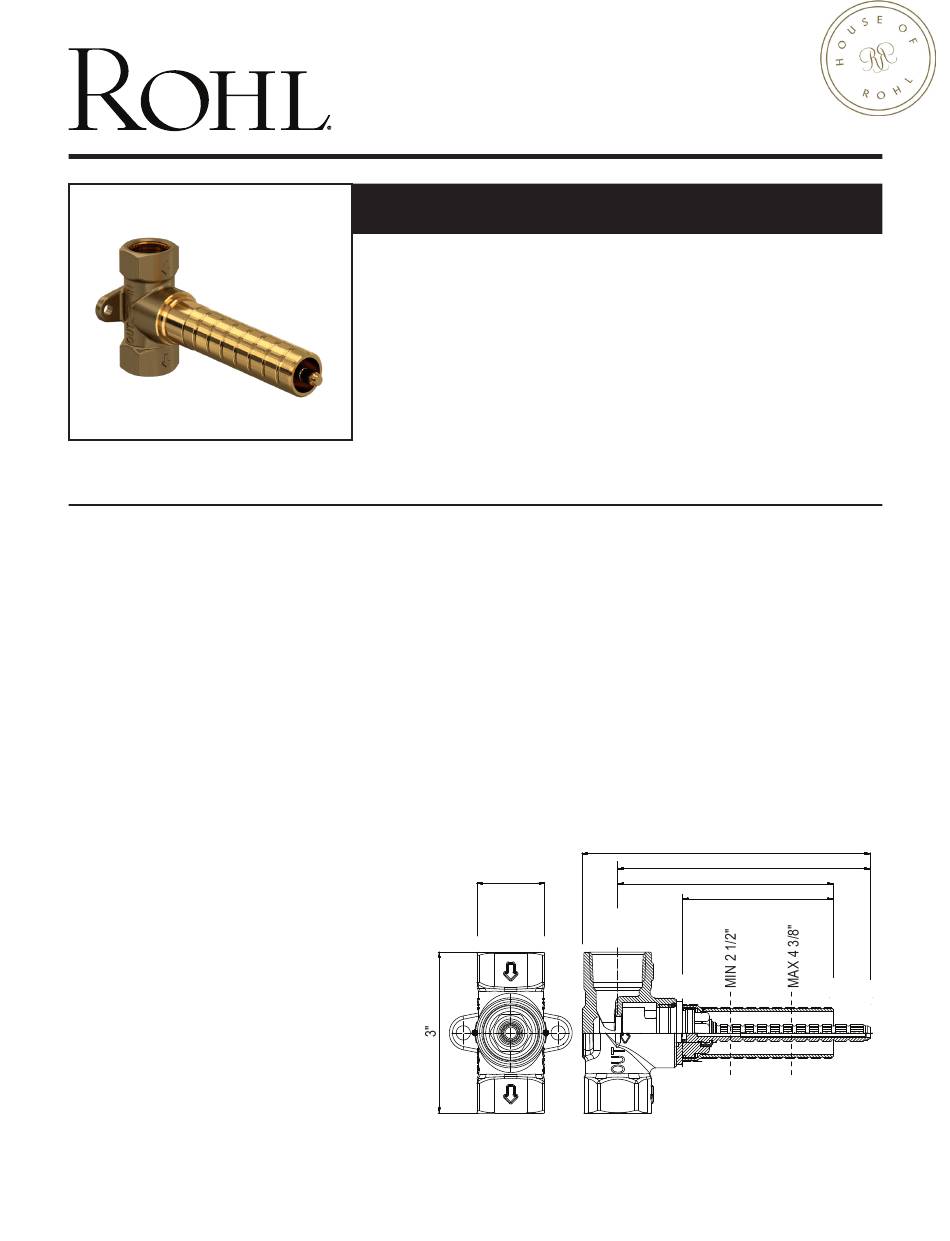

3/4" CLOCKWISE VOLUME CONTROL ROUGH-IN VALVE
R1041R (Clockwise Opening)
COLORS/FINISHES
•
1 1/4"
Rough only
5 1/4"
4 5/8"
3 15/16"
houseofrohl.com
WARRANTY
• Limited Lifetime
2 3/4"
Advertisement
Table of Contents
Related Manuals for Rohl R1041R
Summary of Contents for Rohl R1041R
- Page 1 • Order cartridge kit with all thread to replace: BF17511KIT • Made in Germany 5 1/4" 4 5/8" 1 1/4" 3 15/16" 2 3/4" Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
- Page 2 M O D E D ’ E M P L O I R1040 R1041 R1062 Product names: ROHL ¾" CLOCKWISE AND COUNTER-CLOCKWISE VOLUME CONTROL ROHL ½" THREE WAY DIVERTER-ONE INLET-3 OUTLETS Core product numbers: R1040: Single Function Counter Clockwise Volume Control R1041: Single Function Clockwise Volume Control R1062: Three Function Dedicated Diverter/ Volume Control Temperature Range: 50-120ºF...
- Page 3 INSTALLATION INSTRUCTIONS INSTRUCCIONES PARA LA INSTALACIÓN INSTRUCTIONS D’INSTALLATION R1062 DEDICATED DIVERTER • Must have both rough and trim to complete theinstallation. • Flush the plumbing system before installing this product. • Must follow dimensions supplied for installation and make sure allowance is made for finished wall material such as tile, etc.
- Page 4 FLUHS 3 WAY DEDICATED DIVERTER CARTRIDGE R1062 FLUHS 3 WAY SHARED DIVERTER CARTRIDGE R1062 FLUHS ALL THREAD 24 X 1 X 3" FLUHS CAP FOR CARTRIDGE R1062 MUD GUARD R1062 R30083 PLASTIC ADAPTOR FOR ROHL CONTROLS NOT PICTURED 9.15402 PERRIN&ROWE PLASTIC ADAPTOR NOT PICTURED...
- Page 5 INSTALLATION INSTRUCTIONS INSTRUCCIONES PARA LA INSTALACIÓN INSTRUCTIONS D’INSTALLATION R1040: SINGLE FUNCTION COUNTER CLOCKWISE VOLUME CONTROL R1041: SINGLE FUNCTION CLOCKWISE VOLUME CONTROL 5 1/4" 4 5/8" 1 1/4" 3 15/16" 2 3/4" NOTE: Valves must be installed according to direction of flow TOP VIEW ROUGH-IN DIMENSIONS.
- Page 6 R1041: SINGLE FUNCTION CLOCKWISE VOLUME CONTROL NO. DESCRIPTIONS Fluhs COUNTER CLOCKWISE CARTRIDGE R1040 Fluhs COUNTER CLOCKWISE CARTRIDGE R1040 FLUHS ALL THREAD 24 X 1 X 3" MUD GUARD R1040 R1041 R30083 PLASTIC ADAPTOR FOR ROHL CONTROLS NOT PICTURED 9.15402 PERRIN&ROWE PLASTIC ADAPTOR NOT PICTURED...
- Page 7 To contact one of our Customer Care Team members: El equipo de Atención al Cliente de House of Rohl tiene el compromiso de atender y apoyar eficientemente, y de hacerlo ®...
