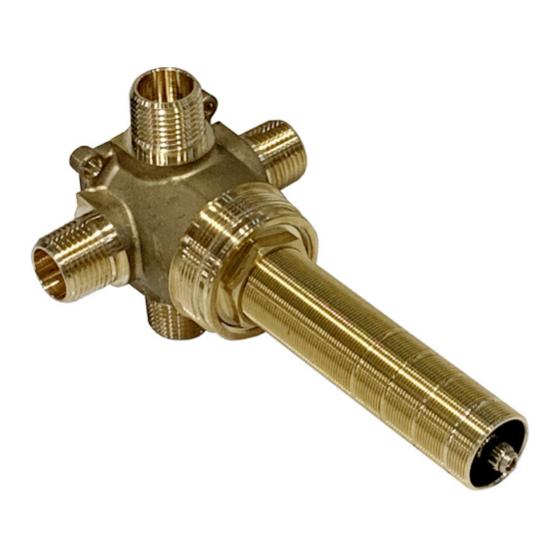

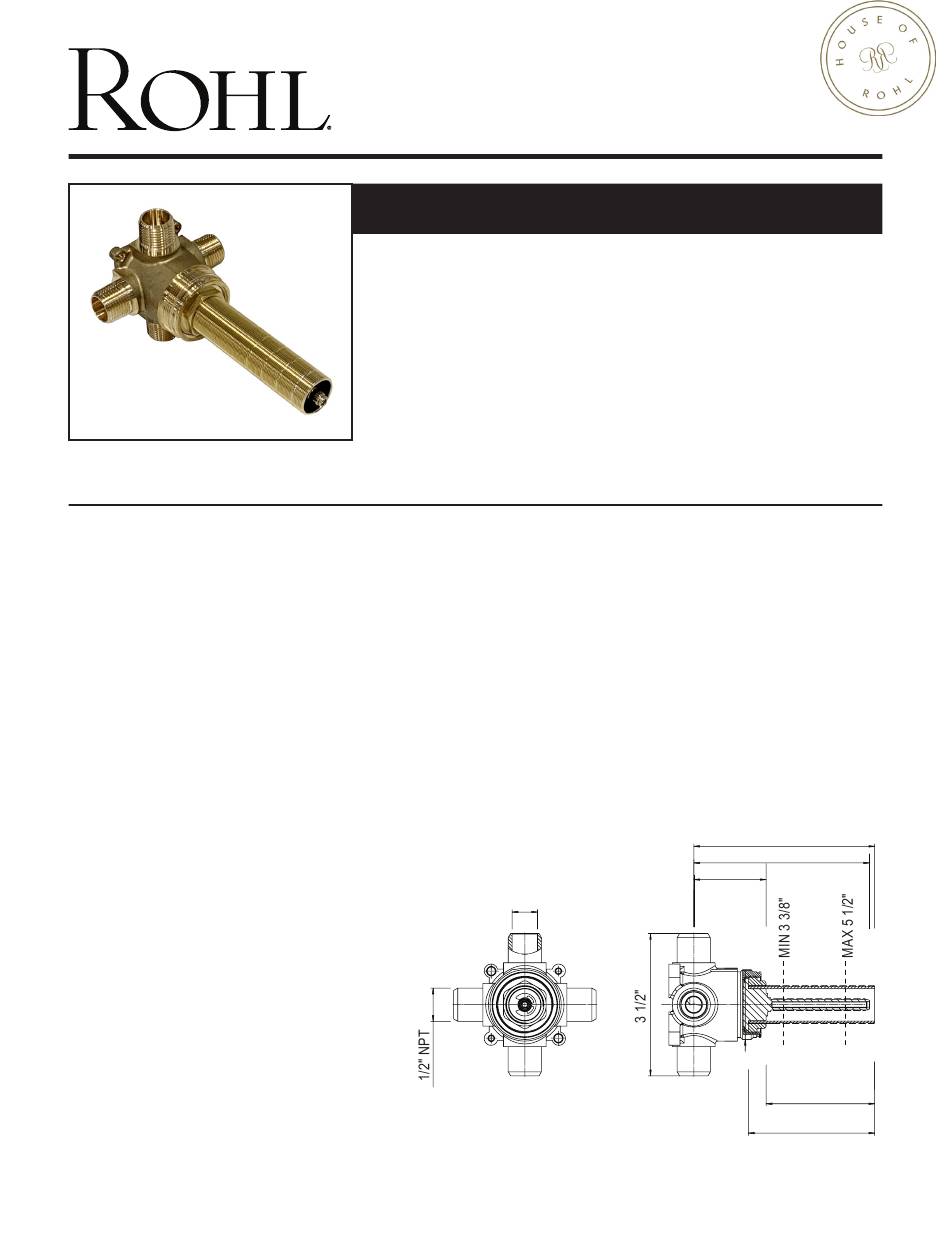

Rohl R1062BO1 Instruction Manual

FEATURES

• Rough valve only, no finish
• Solid brass construction
• Ceramic disc cartridge
• Must have both rough and trim to complete the
installation.
• Flush the plumbing system before installing this product.
• Must follow dimensions supplied for installation and
make sure allowance is made for finished wall material
such as tile, etc.
• Must use with volume control when used with
thermostatic valve: Order: R1040R
• 1 X 1/2"M NPT inlet
• 3 X 1/2"M NPT outlets
• Flow is dedicated
• May not be split into two outlets at once
• CalGreen compliant
• 5 GPM at 60 psi
• Outlets may be capped if not used
• Min. depth is 3 3/8" from middle of the valve outlet
• Max. depth is 5 1/2 " from middle of valve outlet (check
dimensions)
• Extension solution included in the rough package. Cut
barrel and extension to size as needed.
• Stem is part of the cartridge. To replace the cartridge
order: 15251KIT – Includes all thread
• Made in Germany
Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com
4-PORT, 3-WAY DEDICATED DIVERTER ROUGH-IN VALVE
R1062BO
COLORS/FINISHES
•
5/8"
Rough only
1 3/4"
houseofrohl.com
WARRANTY
• Limited Lifetime
4 1/2"
4 3/8"
2 9/16"
3 1/8"
