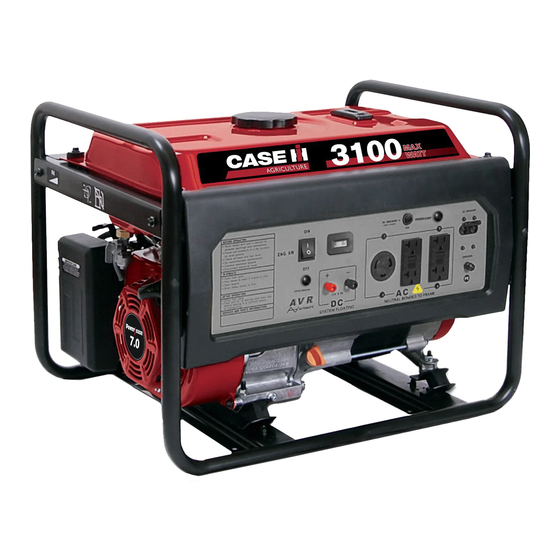

  • Page 1 MODEL NUMBERS MC3100PR MC6500ER MC9000ER 609.702...

  • Page 2: Table Of Contents

    table of contents Introduction Using the Operators Manual Product Identification Generator Engine Safety Safety Rules Hazard Symbols and Meanings Ground Fault Circuit Interrupter Protection Generator Components 13 3100W Component Chart 14 6500W Component Chart 15 9000W Component Chart Preparing the Generator 16 Grounding the Generator Pre-Operation Checklist 17 Engine Oil...
  • Page 3 table of contents Operation 22 Using Electric Power 22 AC Application 23 DC Application 23 Connection of Cable 23 Safety Precautions While Charging 24 Wattage Information 25 Spark Arrester 25 How To Remove The Spark Arrester 25 Clean The Spark Arrester Screen Stopping the Generator 26 Stopping the Generator 26 Oil Sensor...

  • Page 4: Introduction

    introduction Attention: Read through the complete manual prior to the initial use of your generator. Using the Operator’s manual The operating manual is an important part of your generator and should be read thoroughly before initial use, and referred to often to make sure adequate safety and service concerns are being addressed.
  • Page 5 product identification Record Identification Numbers Generator If you need to contact an Authorized Dealer or Customer Service line (1-855-850-6668) for information on servicing, always provide the product model and identification numbers. You will need to locate the model and serial number for the machine and record the information in the places provided below.

  • Page 6: Safety

    safety Save these Instructions Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards.
  • Page 7 safety WARNING Generator exhaust contains carbon monoxide, a poisonous gas that can kill you. You CANNOT smell or see this gas. • Use the generator outdoors, away from open windows, vents, or doors that could allow the carbon monoxide gas to come indoors. Keep the generator at least 1 meter (3 feet) away from any structure or building during use.
  • Page 8 safety WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. When Adding or Draining Fuel • Observe all safety regulations for the safe handling of fuel. Handle fuel in safety containers. If the container does not have a spout, use a funnel.

  • Page 9: Ground Fault Circuit Interrupter Protection

    safety Ground Fault Circuit Interrupter Protection These generators are equipped with a GFCI (Ground Fault Circuit Interrupters) 120V duplex receptacles for protection against the hazards of electrical shock from defective attachments such as, tools, cords, and cables. WARNING The GFCI may not function unless the generator is properly grounded.
  • Page 10 safety This product has been designed with internal grounding or floating bonded neutral. If it should malfunction or breakdown, grounding pro- vides a path of least resistance for electric current to reduce the risk of electric shock. DANGER Improper grounding can result in a risk of electrocution. Check with a qualified electrician for your local requirements if you are in doubt as to whether the unit is properly grounded.
  • Page 11 safety Important Safety Instructions WARNING To reduce the risk of injury, read this operator’s manual completely before using. When using this product, the following basic precautions should always be followed. • Do not enclose the generator or cover it. The generator may become overheated if it is enclosed.
  • Page 12 safety • It is absolutely essential that you know the safe and proper use of the power tool or appliance that you intend to use. All operators must read, understand and follow the tool / appliance owners manual. Tool and appliance applications and limitations must be understood.

  • Page 13: Generator Components

    generator components Read this operator’s manual and safety rules before operating your generator. IND ICA TOR LO W OIL D’H UILE DE NIV EAU TÉM OIN 17. 12. 10. DC Connection 1. Control Panel 11. DC Breaker 2. Fuel Tank 12.
  • Page 14 generator components Read this operator’s manual and safety rules before operating your generator. LOW OIL IND ICA TOR TÉM OIN D’HU ILE NIVE AU 12. DC Connection 1. Control Panel 13. DC Breaker 2. Fuel Tank 14. Hourmeter 3. Fuel Gauge 15.
  • Page 15 generator components Read this operator’s manual and safety rules before operating your generator. LOW OIL IND ICA TOR TÉM OIN D’HU ILE NIVE AU 12. DC Connection 1. Control Panel 13. DC Breaker 2. Fuel Tank 14. Hourmeter 3. Fuel Gauge 15.

  • Page 16: Preparing The Generator

    preparing the generator Grounding Instructions DANGER Improper connection of the equipment grounding conductor can result in a risk of electrocution. Check with with a qualified electrician if you are in doubt as to whether the unit is properly grounded for your local regulations. The ground terminal on the frame can be used to connect the generator to a suitable ground source.

  • Page 17: Pre-Operation Checklist

    operation checklist Engine Oil Before checking or refilling oil, be sure generator is located on stable and level surface with engine stopped. This generator uses SAE 10W30 oil. 1. Remove oil dipstick and check the engine oil level. 2. If oil level is below the lower level line, refill with suitable oil to upper level line.

  • Page 18: General Recommendations

    operation checklist WARNING DO NOT overfill the tank, leave room for the fuel to expand. 1. If fuel level is low, refill with unleaded automotive gasoline. 2. Check fuel gauge while filling. 3. When using the generator for the first time or stopping due to the fuel running out, pull the recoil handle several times after filling the tank.

  • Page 19: Check Generator Surroundings

    operation checklist Check Generator Surroundings When listening to the radio near the generator, the radio sound may be disturbed on account of the radio wave condition and the radio performance. WARNING Keep area clear of flammables or other hazardous materials. •...
  • Page 20 starting your generator 3. Pull the recoil starter handle slowly until passing the compression point (resistance will be felt), then return the handle to its original position and pull briskly. Pull Briskly 4. After starting, allow the recoil starter handle to return to its original position with the handle still in your hand.

  • Page 21: Electric Start

    starting your generator Electric Start 1. Make sure all appliances are disconnected from the generator. 2. Turn engine choke switch to the START (ON) position. (When the engine is warm or temperature is high, start engine with the choke switch in the “OFF” position). 3.

  • Page 22: Operation

    operation Using Electric Power WARNING Risk of electrocution. Make sure that the appliance is switched off before connecting it to the generator. • DO NOT move the generator while it is running. AC Application 1. Make sure the voltage indicated on the voltmeter is at the normal level (approx.

  • Page 23: Dc Application

    operation DC Application The DC terminal is used for trickle charging 12 volt batteries or low amperage drawing DC tools or appliances.. It provides 12V - 8.3A (100W) of maximum power. Connection of Cable Connect positive terminal (red) on generator to positive (+) terminal on battery.

  • Page 24: Wattage Information

    operation Wattage Information Some appliances need a “surge” of energy when starting. This means that the amount of electrical power needed to start the appliance may exceed the amount needed to maintain its use. Electrical appliances and tools normally come with a label indicating voltage, cycles / Hz, amperage (amps) and electrical power needed to run the appliance or tool.

  • Page 25: Spark Arrester

    operation Spark Arrester The spark arrester must be cleaned regularly to keep it functioning as designed. A clogged spark arrester: • Prevents the flow of exhaust gas • Reduces engine output • Increases fuel consumption • Makes starting difficult CAUTION If engine has been running, the muffler and the spark arrester will be very hot.

  • Page 26: Stopping The Generator

    stopping the generator Stopping The Generator 1. Turn off the power switch of the electric equipment and unplug the cord from receptacle of the generator. 2. Allow the engine about 3 minutes to cool down without load before stopping. 3. Push the engine switch to the OFF position. 4.

  • Page 27: Troubleshooting

    troubleshooting Troubleshooting Chart If you are experiencing a problem that is not listed in this chart, or have checked all the possible cause listed and you are still experiencing the problem, see your authorized dealer. Problem Cause Correction Engine will not start 1.

  • Page 28: Maintenance

    maintenance Maintenance Schedule CAUTION Make sure the engine is stopped before starting any maintenance, servicing or repair. NOTE: It is recommended to use ear protection when performing operation, maintenance and repair of the generator. Maintenance, replacement or repair of the emission control devices and systems must be performed by an authorized service provider.

  • Page 29: Changing Engine Oil

    maintenance Changing Engine Oil Change oil after the first 20 hours of operation. Thereafter it should be changed every 100 hours. This generator uses SAE 10W30 oil. 1. Drain oil by removing the drain plug and the oil filler cap while the engine is warm.

  • Page 30: Transporting

    maintenance 1. Check the fuel (gasoline), engine oil and air cleaner. 2. Start engine. 3. With appliance such as lighting activated, run the engine for over ten minutes. 4. Check the following items: • Engine running properly. • Adequate output. •...

  • Page 31: Storage

    storage Preparation for Storage The following procedures should be followed prior to storage of your generator for periods of 6 months or longer. 1. Drain fuel from fuel tank carefully by disconnecting the fuel line. Gasoline left in the fuel tank will eventually deteriorate making engine starting difficult.

  • Page 32: Warranty

    warranty CALIFORNIA AND FEDERAL EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS The California Air Resources Board, the United States Environmental Protection Agency and Chongqing Rato Technology Co., Ltd. (Rato), are pleased to xplain the exhaust and evaporative emissions (“emissions”) control system warranty on your 2019/2020 small off-road engine/equipment.
  • Page 33 warranty You are responsible for presenting your small off-road engine/equipment to a Rato distribution center or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact BE POWER EQUIPMENT at 1-800-663-8331 (free phone) or Email at info@bepressure.com...
  • Page 34 warranty 1. Repair or replacement of any warranted part under the warranty provisions must be performed at no charge to the owner at a warranty station. 2. Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided at distribution centers that are franchised to service the subject engine/equipment.
  • Page 35 warranty 5. Air Injection System • Air pump or pulse valve. • Valves affecting distribution of flow. • Distribution manifold. 6. Catalyst or Thermal Reactor System • Catalytic converter. • Thermal reactor. • Exhaust manifold. 7. Particulate Controls • Traps, filters, precipitators, and any other device used to capture particulate emissions.
  • Page 36 If you need assistance with the assembly or operation of your Generator please call 1-855-850-6668...
