- Page 1 Cast Iron Cable Weight Control and Pump Switches USER GUIDE PART NUMBER: 7039...
-
Page 2: Table Of Contents
Cast Iron Cable Weight - USER GUIDE Contents Introduction ................................. 3 Safety Guidelines ..............................3 Product Included ..............................4 Features ................................. 5 Installation .................................. 6 Installing Float Switch Cable ..........................6, 7 Installing Float Switch Cable in Application Area ....................8 Testing .................................. -
Page 3: Introduction
4. DO NOT use this product with or near flammable liquids. 5. DO NOT install this product in locations classified as hazardous or in explosive atmospheres as defined by any applicable electrical safety code. Alderon Industries™ - Leading Edge Control Products | 3... -
Page 4: Product Included

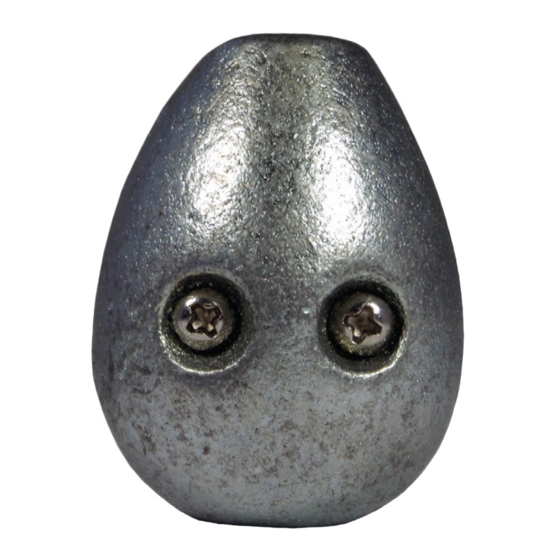

The cast iron cable weight is used as a pivot point for the desired activation level of the float switch. (2) Screws Secures the cast iron cable weight to the float switch cable. 4 | Alderon Industries™ - Leading Edge Control Products... -
Page 5: Features
(3) Threaded Screw Holes - Two threaded screw holes are located on the inside back portion of the cable weight. Alderon Industries™ - Leading Edge Control Products | 5... -
Page 6: Installation
Length Control Switches (Narrow Angle) (*) Correct installation position example, narrow end up. Minimum recommended tether length is 6 inches Pump Switches (Wide Angle) Minimum recommended tether length is 6 inches 6 | Alderon Industries™ - Leading Edge Control Products... - Page 7 (3B). Perform a pull test, if the float switch cable slips, tighten the screws until securely fastened to prevent slipping of the cable, this will maintain an accurate activation level (control switches) or pumping range (pump switches). Alderon Industries™ - Leading Edge Control Products | 7...
-
Page 8: Installing Float Switch Cable In Application Area
Check the installation of the float switch by cycling the float on and off to ensure proper system operation. Activation Level Activation Range Deactivation Level (narrow angle control switch, normally open example) 8 | Alderon Industries™ - Leading Edge Control Products... -
Page 9: General Operation
▪ Activates 5° below horizontal ▪ Deactivates 15° above horizontal Normally Open - High Level Alarms or Pump Down (empty) applications Normally Closed - Low Level Alarms or Pump Up (fill) applications (normally open example) Alderon Industries™ - Leading Edge Control Products | 9... -
Page 10: Medium Angle Control Switch Information
▪ Activates 5° below horizontal ▪ Deactivates 45° above horizontal Normally Open - High Level Alarms or Pump Down (empty) applications Normally Closed - Low Level Alarms or Pump Up (fill) applications (normally open example) 10 | Alderon Industries™ - Leading Edge Control Products... -
Page 11: Wide Angle Control Or Pump Switch Information
Middle Float = Start Pump Bottom Float = Stop Pump Normally Closed (fill): Control Switch “Start” Top Float = Stop Pump Middle Float = Start Pump Bottom Float = Low Alarm Control Switch “Stop” Alderon Industries™ - Leading Edge Control Products | 11... -
Page 12: Troubleshooting
Incorrect installation of float switch Refer to instructions that came with the float switch for recommended tether length guides, mounting location, total operating angle, and activation levels for normal operation 12 | Alderon Industries™ - Leading Edge Control Products... -
Page 13: Specifications
18 AWG to 14 AWG type cable sizes (diameter 0.28 - 0.39 inches) Operating Temperature: For use in liquids up to 200° F Diameter: 1.94 inches Height: 2.50 inches Weight: 1.20 lb Alderon Industries™ - Leading Edge Control Products | 13... -
Page 14: Warranty Information
Three-Year Limited Warranty - Standard Products LIMITED WARRANTY: Subject to the conditions of this Three-Year Limited Warranty, Alderon Industries, LLC (“Alderon”) war- rants to the original user or consumer of an Alderon product (the “Product”) that, for a period of three (3) years from the date of manufacture, the Product will be free from defects in materials and workmanship under normal use and service, and provided the Product is installed, operated and maintained in accordance with instructions supplied by Alderon. - Page 15 Cast Iron Cable Weight - USER GUIDE This page intentionally left blank Alderon Industries™ - Leading Edge Control Products | 15...
-
Page 16: Company Information
UG00078_Rev03_Cast Iron Cable Weight | August 27, 2019 1:07 PM Company Location: 151 16th Street South, Hawley, MN 56549 Mailing Address: PO Box 827, Hawley, MN 56549 Main Office Phone: 218.483.3034 Website: alderonind.com General Inquiry Email: info@alderonind.com Submit New Orders: orders@alderonind.com...
