SJ LTS Manual

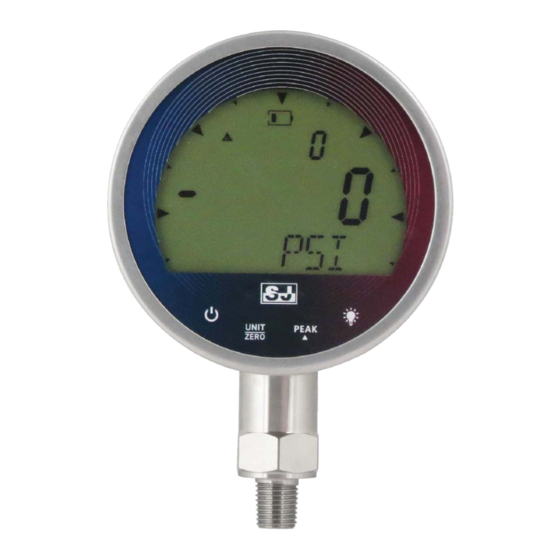

Touchscreen Digital Pressure Gauge
Product Description
Touch screen buttons are more durable
and easier to operate than traditional
buttons
Circular arc percentage chart can simu-
late pressure values, helping prevent
overpressure
Product Specification
Connection location
Bottom mount
Nominal size
4"
Scale ranges
0 ... 5 kPa to 0 ... 100 MPa, or other
equivalent units of pressure, vacuum
or compound
Pressure units
MPa, kg/cm , bar, psi, mmH
2
Pa, inWC, mbar, mH
Torr (Up to 8 units can be switched,
if not specified, the engineer will
select it according to the pressure
range)
O, kPa,
2
O, inHg, mmHg,
2
Accuracy
±0.4% F.S. (standard), ±0.2% F.S.
Process connection
304 SS
PT: 1/4", 1/2"
G: 1/8", 1/4", 3/8", 1/2", 7/8"
NPT: 1/4", 1/2"
M: 12*1.5, 10*1.0, 10*1.5, 14*1.5,
20*1.5
Case/Ring
304 SS
Sensor element
316 SS
1/4
Copyright © 06/2022 by SIN JIA ENTERPRISE COMPANY LIMITED. All rights reserved.
Digital Pressure Gauge
Model: LTS
