SJ MXB Quick Start Manual

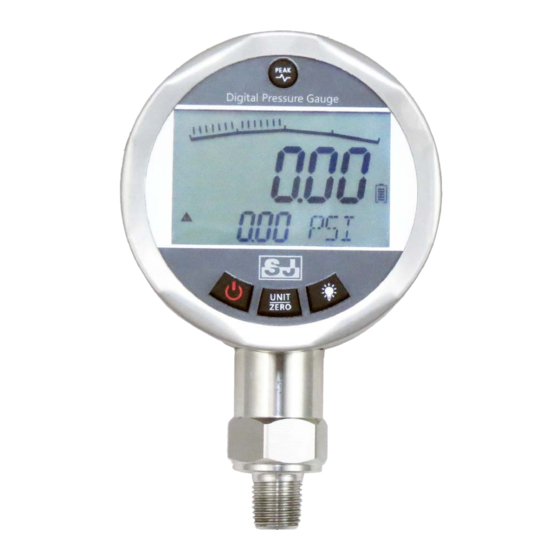

Digital Pressure Gauge: LCD Display
Product Description
Bar graph display can prevent over-
pressure
Helps record highest and lowest peak
values effectively
Same material as PCE Deutschland
GmbH
Product Specification
Connection location
Bottom mount, back mount,
with/without flange, bottom mount
with cooling element
Nominal size
2.5", 3", 4"
Scale ranges
0 ... 5 kPa to 0 ... 100
equivalent units of pressure, vacuum
or compound
MPa, or other
1/6
Pressure units
MPa, kg/cm , bar, psi, mmH
2
Pa, inWC, mbar, mH
Torr (Up to 8 units can be switched,
if not specified, the engineer will
select it according to the pressure
range)
Accuracy
±0.4% F.S. (standard), ±0.2% F.S.
Process connection
304 SS
PT: 1/4", 1/2"
G: 1/8", 1/4", 3/8", 1/2", 7/8"
NPT: 1/4", 1/2"
M: 12*1.5, 10*1.0, 10*1.5, 14*1.5,
20*1.5
Copyright © 04/2022 by SIN JIA ENTERPRISE COMPANY LIMITED. All rights reserved.
Digital Pressure Gauge
Model: MXB
O, kPa,
2
O, inHg, mmHg,
2
