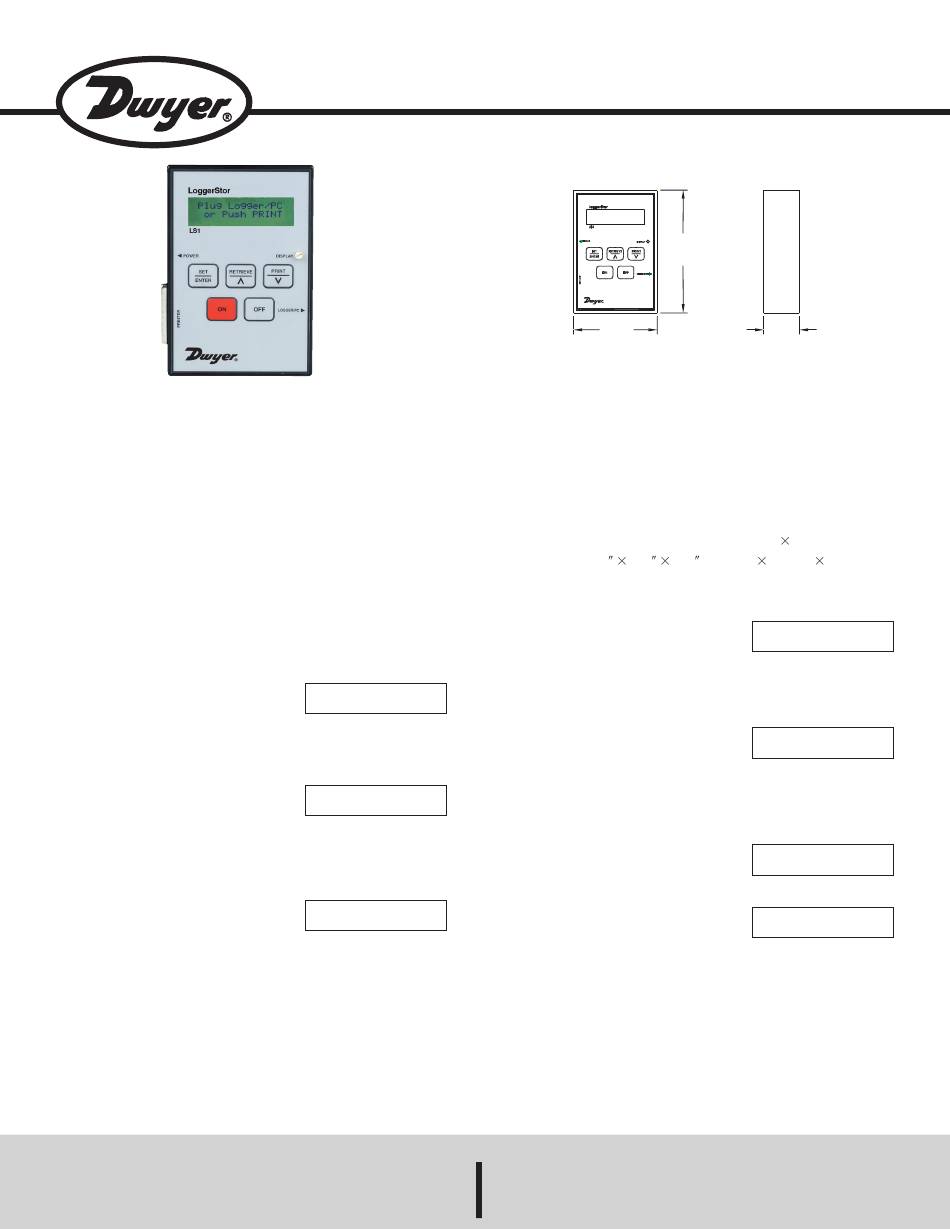

Dwyer Instruments LS1 Specifications-Installation And Operating Instructions

Description
The LoggerStor is a battery powered, hand-held instrument
that allows the user to retrieve and store up to 31 full record-
ings made with any of Dwyer's Series LCL data loggers. The
user can then transfer the stored recordings to a PC or print
them on the spot to virtually any parallel printer without using
a PC. Each recording is individually numbered for easy track-
ing and the user can transfer the saved recordings to a PC
using the software supplied with Model LCL05. An alphanu-
meric display and structured menus provide easy, intuitive
operation.
Getting Started
Place a fresh 9V alkaline battery into the unit. Any other type of
battery will result in unsatisfactory performance and may
cause damage to the instrument. Press and hold the "ON"
button on the front panel until the opening message appears in
the display. The display will show the
instrument name and software version
number. If no display is visible, or if the
display is all black, adjust the display control until the lettering
is visible.
After a few seconds the display will
change to the opening menu. The
LoggerStor is now ready for operation.
To Retrieve A Data Logger Recording
To retrieve a data logger recording plug the data logger you
want to retrieve information from into the LoggerStor using the
supplied cable. The LoggerStor will
automatically recognize the logger and
indicate what type of logger it is and
the first 16 characters of the user message. The LoggerStor
records logger information into Bins. Each of the 31 Bins will
hold a full logger recording.
This means that you can hold 31 logger recordings before you
will have to record over a previously loaded Bin. It is not neces-
sary to erase a given Bin to re-use it. Simply select the Bin you
wish to re-use and save the recording to it.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, ,U.S.A.
Model LS1 Data Logger Storage
Specifications – Installation and Operating Instructions
LoggerStor
Version 2.0
Plug Logger/PC
Or Push PRINT
Found LCL22
Dwyer LCL22 Data Logger
5.125
[130]
3.500
[89]
PHYSICAL DATA
Storage Capacity: Full recordings from up to 31 data loggers.
Logger Connection: Custom cable (included).
Printer Connection: Parallel printer cable (not included).
Operating Temperature: 32˚F to 140˚F (0˚C to 60˚C).
Storage Temperature: -40˚F to 170˚F (-40˚C to 76˚C).
Power: 9 V Alkaline Battery.
Display: Alphanumberic LCD, 16 Characters
Dimensions: 58 32
Weight: 13 oz. (369 g).
Press SET/MENU once and the
display will indicate:
Use the RETRIEVE/UP ARROW and PRINT/DOWN ARROW
buttons to scroll through the available Bin numbers.
The top line of the display will show
the Bin number and the bottom line of
the display will show the first 16 char-
acters of the user message stored in the Bin. If the second line
of the display is blank, then the Bin has no information stored
in it or the user message in the logger was left blank. When you
have selected the desired bin number, press SET/MENU.
The display will show:
When you push SET/MENU the logger
will begin to retrieve information and
the display will indicate the progress of
the recording. After the LoggerStor
has finished retrieving the recording, it will return to the display
indicating the type of logger connected and the first 16 char-
acters of the user message. At this point you may remove the
logger and can view or print the information. You may also
connect an additional logger to retrieve if you are working on
more than one logger.
Phone: 219/879-8000
Fax: 219/872-9057
Lit-By Fax: 888/891-4963
BULLETIN E-90-LS1
1.500
[38]
2 Lines.
12 (130mm 89mm 38mm).
User Arrow Keys
To select Bin #
Select Bin #: 01
Dwyer LCL22 Data Logger
Push ENTER to Start
Other to Cancel
Retrieving Data
27%
