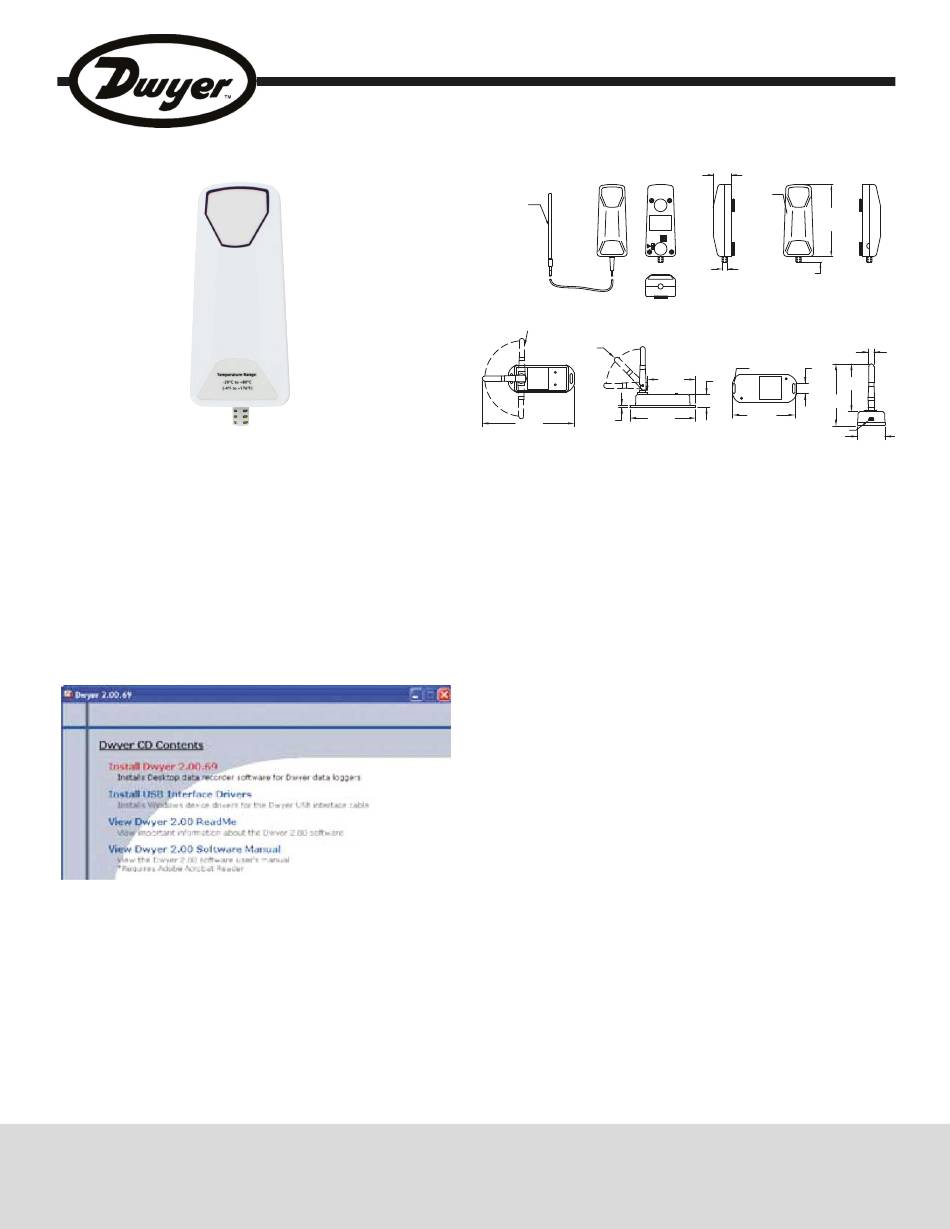

Dwyer Instruments WTDL-30 Installation And Operating Instructions

The Series WTDL Temperature/Humidity Data Logger is perfect for applications
which require real time monitoring or in areas that are not as accessible to
periodically retrieve the loggers The data loggers can transmit up to 500 feet
indoors and up to 2000 feet outdoors The distance can be increased by using
additional receivers Wireless data is transmitted on a 2 4 GHz frequency allowing
it to be used anywhere in the world A network of data loggers can be separated
into a smaller subnet These subnets can all be controlled by a single PC The
Series WTDL data loggers also feature a user programmable alarm This alarm
can be configured to show an on screen alarm send a text message (standard
SMS rates apply) or an email if an alarm condition is met
SOFTWARE INSTALLATION
1 nsert installation software and click install Dwyer 2 00
Figure 1: Software/Driver Installer
2 Follow on screen instructions
3 Next click on the nstall USB nterface Drivers on the CD contents screen
4 Click nstall
5 Next click on nstall RFLogNET on the CD contents screen
6 Click nstall
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
Series WTDL Wireless Temperature/Humidity Data Logger
Specifications - Installation and Operating Instructions
TestEquipmentDepot.com
PROBE
ATTACHMENT
WTDL-30
180° HORIZONTAL
ROTATION
90° VERTICAL
ROTATION
2.753
3.780
.120
5.296
Wireless Transceiver
SPECIFICATIONS
Temperature Range: WTDL-10/WTDL-20 -4 to 176°F (-20 to 80°C) WTDL-30
-328 to 500°F (-200°C TO 260°C) for probe
Humidity Range: WTDL-20 0 to 95% RH
Temperature Accuracy: WTDL-10/WTDL-20 0 9°F (0 5°C) from 32 to 122°F (0
to 50°C) WTDL-30 0 18°F (0 1°C) from -4 to 176°F (-20 to 80°C) 0 9°F (0 5°C)
outside of specified range
Humidity Accuracy: WTDL-20 ±3 0% RH ±2% typical at 77°F (25°C)
Temperature Resolution: 0 018°F (0 01°C)
Humidity Resolution: WTDL-20 only 0 1% RH
RF Carrier Frequency: 2 45 GHz
Band: SM band 2 405-2 48 GHz
Maximum Power Output: +0 dBm typical
Wireless Transmission Range: 2000´ (610 m) outdoors line of sight 500´ (152
m) indoors
Receiver Sensitivity: -95 dBm typical
Memory Size: WTDL-10/WTDL-30 30 000 Readings WTDL-20 15 000
readings per channel software configurable memory wrap
Sampling Method: Stop on memory full or continuous recording
Sampling Rate: 2 sec to 24 hrs
Temperature Limits: -4 to 176°F (-20 to 80°C)
Humidity Limits: 0 to 95% RH
Computer Requirements: Windows
Computer Interface: WTDL-RX
Power Requirements: 3 6 V TL-5104 lithium metal battery installed functional
user replaceable
Battery Life: 2 years (approx )
Housing Material: ABS plastic
Weight: 0 25 lb (113 4 g)
FCC Approval: FCC D# OA3MRF24J40MA
Agency Approvals: CE
Windows and Windows Vista are registered trademarks of Microsoft Corporation
® ®
Bulletin PC-WTDL
1-17/64
[32.00]
WHITE
BODY
4-61/64
[125.72]
3/8
27/64
[9.40]
[10.67]
WTDL-10/20
.300
Ø.137 X 2 .600
.760
2.753
3.575
3.580
MINI USB
PORT
Xp Sp3 Windows Vista Windows
® ® ®
1.570
