Summary of Contents for CoComm F740

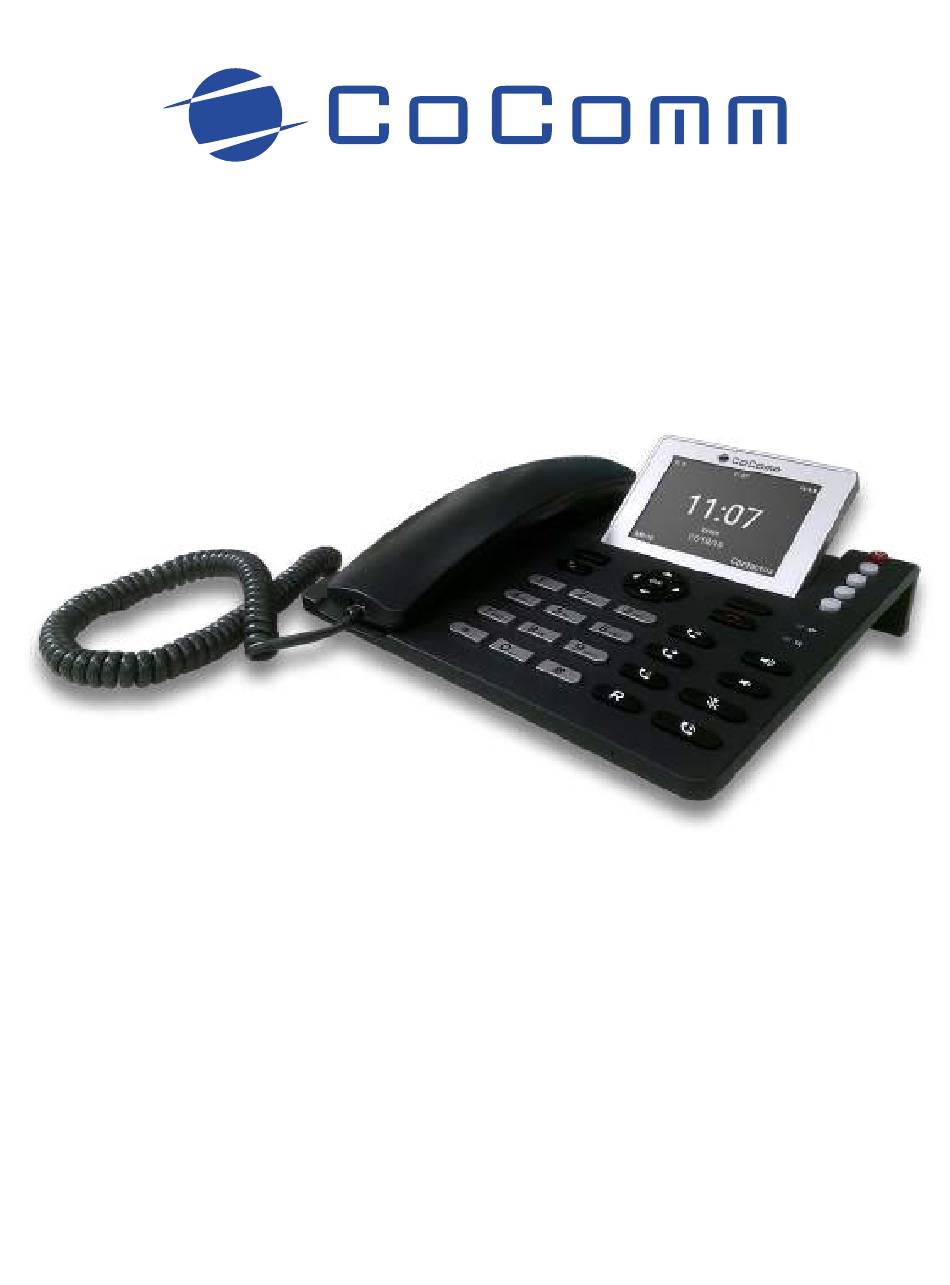

Page 1 F740 User manual...
Page 2 Index Introduction �� Sales package contents �� Precautions for use �� Overview �� Installation �� Keyboard �� Numeric keypad �� Display �� System icons �� Widget �� Applications menu �� Settings �� Calling�� Messages �� Contacts �� Bluetooth connection �� ®...
Page 3 F740 User manual * Read carefully the instructions contained in this user manual before starting to use the device...
Page 4: Security Instructions
Introduction Thank you for choosing COCOMM F740 device. This phone is designed for being used with GSM 900/1800, UMTS 900/2100 MHz, LTE FDD B1/2100MHz, B3/1800MHz, B7/2600MHz, B20/800MHz and LTE TDD B38/2600MHz networks and for operation requires a valid SIM card from your network operator. Please consult your network operator for more information.
Page 5: Sales Package Contents
DOMICILIO ADDRESS TELÉFONO TELEPHONE Read carefully the instructions contained in this operation manual before you start using the device User manual Guarantee card Co-Comm F740 wireless phone AC/DC power Li-Po rechargeable Security screw, key adapter battery and QC PASS sticker...
Page 6: Precautions For Use
Precautions for use Operating Environment Your COCOMM F740 phone is a RF transmitter, so please turn off your terminal or disable radio functions within following situations: ● ● W hen you are in an airplane. ● ● ● W hen you are in the vicinity of flammable atmospheres and is indicated by the entity responsible for risk management.
Page 7 Precautions for use ● Turn down the volume or stop using the product if your ears are ringing. ● ● Do not raise the volume too much, doctors warn against the prolonged exposition to high volume. ● ● Excessive acoustic pressure from headphones can cause hearing loss. ●...
Page 8 Precautions for use Care and maintenance ● Listening to a music player at a very high volume can damage the user’s hearing and cause hearing problems (temporary or permanent deafness, ringing in the ears, tinnitus, hyperacusis). Therefore, it is strongly recommended that you do not use the player at full volume or for more than one hour a day at medium volume.
Page 9 Precautions for use Measures that affect the safety of users ● Do not use the mobile phone in certain situations (while driving) and certain places (airplanes, hospitals, schools, gas stations and professional workshops). ● For mobile phones, remember the prohibition of using the phone manually by the driver of a moving vehicle.
Page 10: Battery Use
Precautions for use Battery use ● Never use any charger or battery if damaged. Use the battery correctly. Do not short- circuit the battery, as this may damage the battery or cause a fire. ● Do not subject the battery to high temperatures or fire as it may explode. ●...
Page 11 Overview PQRS WXYZ 1� LCD screen 11� [ ] Hash key 2� Turn on / off 12� [ Speed dial keys Pantalla LCD 10. [ ] Tecla asterisco Tecla de encendido / apagado 11. [ ] Tecla almohadilla 3� Handset / Receiver 13�...
Page 12 Overview 21� Hands-free indicator 28� DC 5V power connector 22� Micro-USB data port for software 29� Wall mounting holes Indicador de carga Conector de alimentación DC 5V Indicador de manos libres Orificios para montaje en pared update 30� Rechargeable battery compartment Puerto de datos micro-USB para Compartimento de la batería 23�...
Page 13: Installation
Installation Follow below steps to install the SIM card and different accessories of your wireless phone COCOMM F740: Disconnect power adapter and remove battery cover compartment located behind the device to install the SIM card and the micro-SD memory card. To install the SIM card, slide the metal tab in the direction shown to unlock it, turn it up, and place the card as shown in the figure.
Page 14 Installation Insert the battery within dedicated compartment, making sure that connector electrodes on the terminal match the slots in the top of the battery as shown in the figure. Replace the lid of the battery compartment, making sure it is securely locked in place.
Page 15 Installation Conecte el cable rizado del auricular en la base del teléfono. Conecte uno de los extremos del cable al conector situado en el lateral izquierdo de la base del teléfono. Conecte el otro extremo del cable rizado en la toma del auricular, tal como se indica en la ilustración.
Page 16: Battery Charge
Installation Connect power supply cable to the connector on the back of the phone and then plug the power supply into a household AC power outlet. Battery level will be displayed on the screen showing charging process status. Battery Charge When battery level is low, the phone will issue a warning tone and a low battery message.
Page 17 Keyboard Function Turn On / Off When terminal is off, press for 3 seconds to turn on the phone. When terminal is on, press for 5 seconds to turn off the phone. Up / Down Move the cursor up/down by accessing on-screen menu or submenus.
Page 18 Keyboard Function Memory Programmable keys to store up to four telephone numbers. keys Hold button During an active call, press to hold current call. During two active calls, press to switch from Call 1 to Call 2. Transfer button When you have two calls, one active and one holded, press to make a call transfer between both calls.
Page 19: Numeric Keypad
Numeric keypad Check the below table when using alphanumeric keypad. When introducing some form of text on your phone, you can switch between entering numbers (123), lower case (abc) or uppercase (ABC) by pressing the # key. Lowercase (abc) Uppercase (ABC) .
Page 20 Display Press the key for 3 seconds to turn on the terminal. The first time a SIM card is inserted the terminal will ask for a PIN code. Then, the following user interface will be shown on the screen. 1� 2G/3G/4G Coverage Indicator 5�...
Page 21: System Icons
System icons Following illustration explains the meaning of system main icons that can be displayed on your phone: Signal level Notifications Data network connection Status information No signal No SIM card Message received Low battery Call Charging battery Call end Microphone off Call transfer Bluetooth active...
Page 22 Widget The main user interface changes when there are notifications or when an application is running in the background. In this case, the following user interface will appear on the device screen. 1� Notification Bar: missed calls and new 3� Quantity of each notification 4�...
Page 23: Applications Menu
Applications menu Once the device is turned on and the configuration process is completed, the main menu will be shown on the screen. Press the left selection key to access the applications menu and the next user interface will be displayed on the screen. 1�...
Page 24 Applications menu From the application menu you can also customize the main menu. Press the left selection key to display the available options: ● Wallpapers: choose the wallpaper of the main menu among the available backgrounds. ● Softkeys: select the application associated with the right soft key in the main menu. Under the application menu, use the arrow keys to select one of the icons, and press...
Page 25 Applications menu Contacts Select the icon from the applications menu, and press to access the telephone contact list, press the left selection key to access the options to delete, add or import/export contacts Gallery Select the icon from the applications menu, and press to access the image gallery.
Page 26 Applications menu FM Radio Select the icon from the applications menu, and press to access the FM Radio application. Use the arrow keys to select the search mode, manual ( or automatic ( ), then press to search for radio stations. Telephone Select the icon from the applications menu, and press...
Page 27 Settings NETWORK Mobile network Data usage Hotspot & tethering Airplane mode CONNECTED DEVICES Bluetooth APPS & NOTIFICATIONS Recently opened apps Notifications App permissions Advanced Default apps Special app access...
Page 28 Settings BATTERY Standby intelligent power saving Battery saver Battery percentage Sleep DISPLAY Brightness level Wallpaper Sleep Font size Advanced Display size Screen saver...
Page 29 Settings SOUND Media volume Do not disturb preferences Phone ringtone Advanced Default notification sound Default alarm sound Other sounds STORAGE SECURITY Show passwords SIM card lock SYSTEM Language & input Date & time Reset options About phone...
Page 30 Calling There are different methods to make a call from your COCOMM F740 terminal: Calling using alphanumeric keypad In standby mode pick up the handset, dial the phone number using the alphanumeric keypad and press the key to make the call.
Page 31: Calling From Phonebook
Calling Calling from call log In standby mode, press or press the left softkey to access the applications menu, then select the icon to access the call log. Use the arrow keys to show on the screen the list of outgoing, incoming or missed calls.
Page 32 Calling Three way calling During an incoming call, pick up the handset or press the key to answer the call. Press the key to pause the incoming call and initiate a second call to another phone number or to a contact from the phonebook. When the second call is active, press the key, or press Options...
Page 33 Messages The COCOMM F740 terminal support SMS text and MMS multimedia messages. This section explains how to send and receive messages, and other related features. Create and send messages Access the applications menu, select the icon and press to launch the...
Page 34: Delete Messages
Messages Delete messages Access the applications menu, select the icon and press to launch the messages application. Select one of the messages in the list and press to view it. Use the arrow keys to select the message. Press Options then Delete to delete the message from the inbox.
Page 35 Messages ● Texte Messages (SMS): press to access all the text messages settings: Request delivery report: enable this option to request a delivery confirmation ● every time a message is sent. ● Manage SIM card messages: use this option to delete messages and check the ●...
Page 36 Messages ● Notifications: press to access to the message notification settings: Message notifications: enable or disable message notifications. ● Mute: use this option to temporarily mute message notifications. ● Sound: select notification tone for messages. ● ● Pop-up notification: shows pop-up notifications for push messages. Push ●...
Page 37: Import/Export Contacts
Contacts This section explains how to create and manage your phonebook contacts. Creating a new contact In standby mode, use the alphanumeric keypad to enter the number of a new contact. Press Options and select Add Contacts in the pop-up menu. Select where the contact will be saved (SIM card, phone, etc.).
Page 38 Import contacts through Bluetooth For this, you need to enable Bluetooth both on your Co-Comm F740 terminal and on your smartphone, and pair them. Once they are paired, access to the...
Page 39: Edit Contacts
Contacts Edit Contacts Access the applications menu, select the and press to access the contacts menu. Use the keys to select a contact and press to access it. Press Options and select Edit in the pop-up menu. Fill in the form with the information you want to enter for the new contact, press Options and select Save...
Page 40: Bluetooth Connection
Bluetooth connection ® The Bluetooth� function allows you to pair your terminal with other Bluetooth devices, to perform certain actions. ● ● Connect various Bluetooth accessories like, for example, Bluetooth headphones to answer calls received by the terminal. ● ● Exchange contacts and audio, video or photo files with other devices. Pairing to a Bluetooth�...
Page 41: Troubleshooting
Troubleshooting Phone can not be turned on ● Be sure to hold down the button for more than 5 seconds. ● Make sure battery is properly connected to your phone. ● ● ● R emove the battery, reinstall it and restart your phone. ●...
Page 42: Network Failure
Troubleshooting Network failure ● It is possible that the phone is located in a weak signal area, move to a place with a stronger signal. It is out of network service coverage ● SIM card is not valid, contact your network provider. You have entered a number but the phone is not calling ●...
Page 43 Troubleshooting Your correspondent can not hear you ● Increase handset volume. ● ● ● C heck that handset cable is securely connected to the phone. Battery duration in standby mode is too short ● Battery standby duration is related to network configuration. You may be in a weak signal area.
Page 44 You can obtain a copy of the declaration of conformity with the directive mentioned by sending an email to clientes@cocomm.es, adding the word DoC in the Subject line, and specifying the lot number of the product in the body of the message.
Page 45: Sar Certification Information
Regulation SAR certification information This mobile device meets guidelines for exposure to radio waves. It is a radio transmitter and receiver low power. It is designed not to exceed the limits for exposure to radio waves as recommended by international guidelines. These guidelines were established by the International Commission on Non-Ionizing Radiation (ICNIRP), which is an independent scientific organization, and include safety measures designed to ensure the protection of persons, regardless of age or health...
Page 46 Regulation This product complied with Directives 2012/19/EU (WEEE Directive) and 2011/65/EU (RoHS2 Directive) and Regulation (EC) Nº1907/2006 (REACH), and bears selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.
