w w w . l u z n e g r a . n e t
CCT DIMMER CONTROLLER FOR 6 ZONES
Ref:
41.018

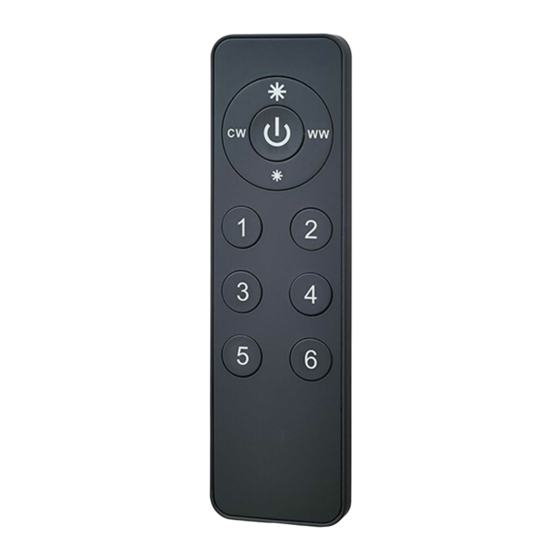

Controller
Features
• Compact size with simple and easy-to-use interface.
• Accurate and smooth colour temperature and brightness adjustment for
warm white and cold white.
• 256 level brightness adjustments for each white to archive millions of colour
temperatures.
• Smooth dimming without any flickering from 0.1% to 100% enables the
dimmer controller to archive millions colours.
• Control 6 different zones separately or synchronously with endless receivers
in each zone.
• Save kelvins / scenes for each zone.
• Control distance around 20-30m.
• To work with power repeater to expand output unlimitedly.
Compatible with controller:
• 41.019
38.9
C/ Carles Buhigues, 13
Tel: +34 938 402 598
136.3
10.7
BARCELONA
08420 Canovelles
Info@luznegra.net
Voltage (V)
Frequency
Control
Signal distance
Waterproofing
Working temperature
Measurements
Packaging
Guarantee
Approved by:
MADRID
C/ Adaptación, 27
28906 Getafe
centro@luznegra.net
Tel: +34 916 416 081
SEQUENCERS FOR LEDS
3V
voltage
IP20
3V (1 units of CR2025
not included)
868/915/434MHz
6 zones
20 - 30m
IP20
0°C / 40°C
136.3x38.9x10.7mm
1 unit
2 years
PARIS
113 Avenue Joffre
77450 Esbly
france@luznegra.net
Tel: +33 (0) 160 426 585
