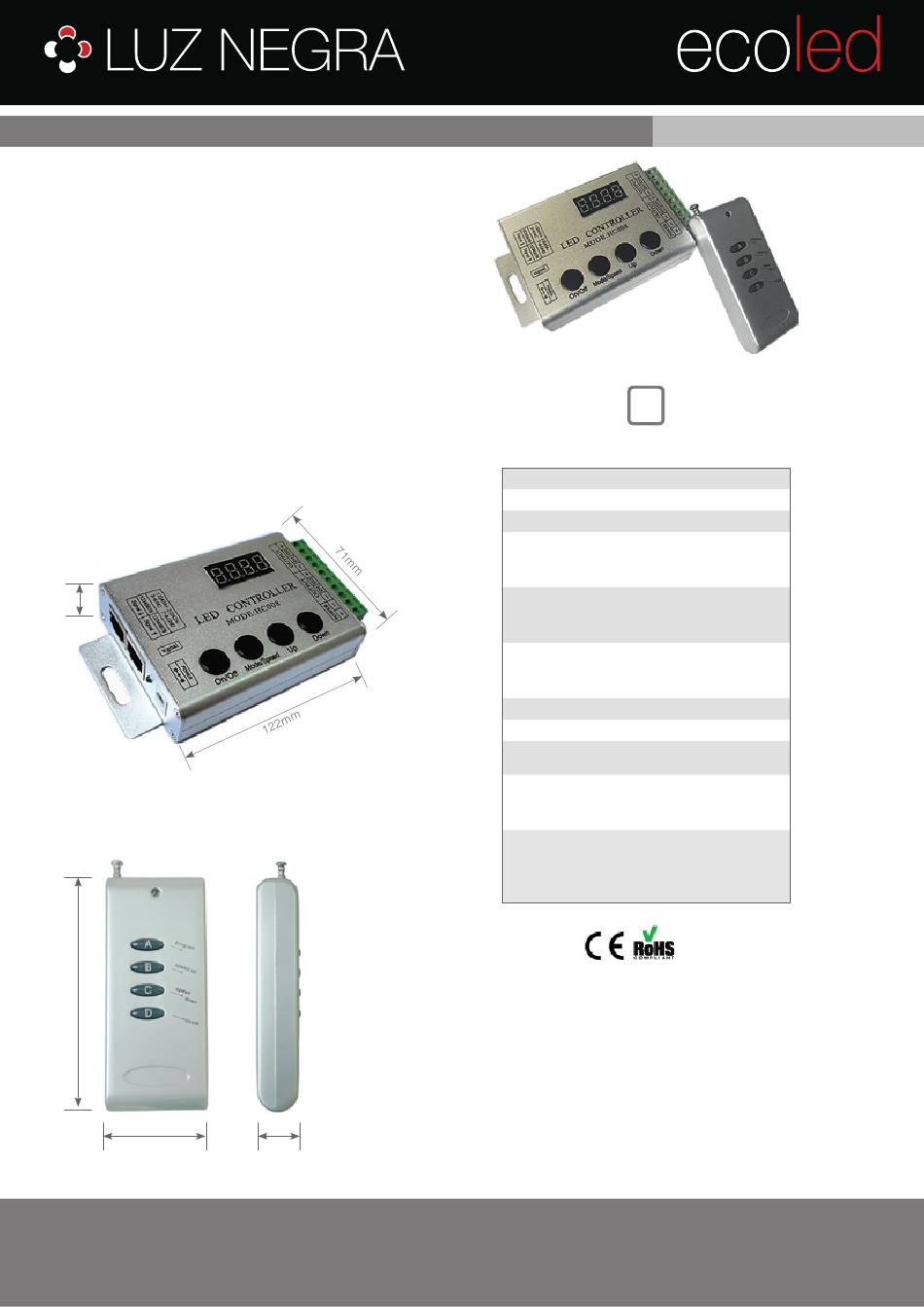

DIGITAL CONTROLLER WITH IP20 SENSOR
Ref:
41.038
12V

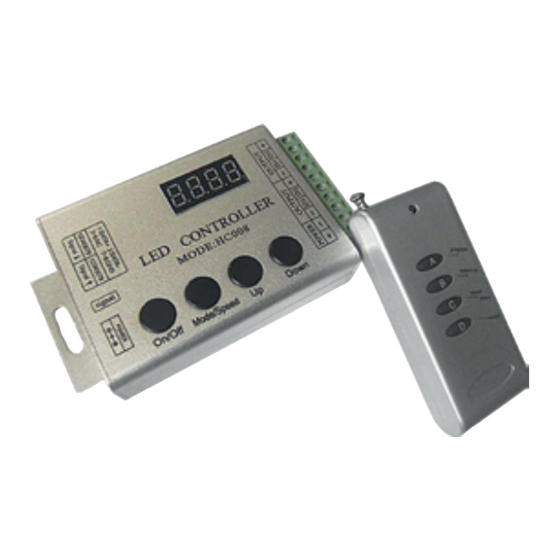

Digital controller with 133 effects.
It is controlled by means of the buttons on the controller or with
a small remote control.
Working tension 12V, maximum pixel load of 1024 points (in low
mode) or 2048 points (in high mode).
Controller:
24mm
Remote control:
90mm
36mm
C/ Carles Buhigues, 13
Tel: +34 938 402 598
15mm
BARCELONA
08420 Canovelles
Info@luznegra.net
Product
Working voltage
Working current
Electric feed
Maximum pixel load
IC compatible models
Working temperature
Effect modes
Product dimensions
Control types
Synchronous
controller
Aprobado por:
MADRID
C/ Minas, 35-37
28923 Alcorcón
centro@luznegra.net
Tel: +34 916 416 081
DOGITAL LED
12V
voltage
Led digital controller
12V
< 60mA
By
means
of
Jack
connector or terminal with
screws for cables
1024 points (in low mode)
or 2048 points (in high
mode).
WS2811, WS2812B,
TM1809, UCS1903 y
TM1812
-20ºC / +60ºC
133
L137xW70xH25mm
by means of the buttons
on the controller or with a
small remote control.
yes, they can be
synchronised by means of
a mains cable connection
and a RJ45 connector
PARIS
113 Avenue Joffre
77450 Esbly
france@luznegra.net
Tel: +33 (0) 160 426 585
Advertisement
Table of Contents
Related Manuals for LUZ NEGRA 41.038
Summary of Contents for LUZ NEGRA 41.038
- Page 1 . l u z n e g r a . n e t DIGITAL CONTROLLER WITH IP20 SENSOR DOGITAL LED Ref: 41.038 Digital controller with 133 effects. It is controlled by means of the buttons on the controller or with a small remote control.
- Page 2 w w w . l u z n e g r a . n e t DIGITAL CONTROLLER WITH IP20 SENSOR DOGITAL LED Operation Manual: Configuration and functions: Configuration: Connect the charging cable at the beginning, followed by the power cord. Make sure that a short circuit cannot occur between the connecting cable before turning on the power.
- Page 3 w w w . l u z n e g r a . n e t DIGITAL CONTROLLER WITH IP20 SENSOR DOGITAL LED The standard color changes as follows: Static red Static green Static blue Static yellow Static cyan Static purple Static white Three color jumpy change Seven color jumpy change...
- Page 4 w w w . l u z n e g r a . n e t DIGITAL CONTROLLER WITH IP20 SENSOR DOGITAL LED Seven color jumping trail to right double direction Seven color queue trail to right double direction Seven color alternation trail to right double direction Full color wave to right direction Seven color water move to left direction Purple background trail to right double direction...
- Page 5 w w w . l u z n e g r a . n e t DIGITAL CONTROLLER WITH IP20 SENSOR DOGITAL LED The following two diagrams are for connecting them in synchronous mode (operate simultaneously). Standard and easy way. Connect them with an RJ45 cable using the Input and Output terminals. Master Sub-Control In cascade, the first controller will have the connection in Output (MASTER) and the rest of the controllers will have the input, which means that...
