SmartLink SL-2-DC-002 Operating Manual
Disclaimer
OutdoorLink recommends all electrical codes are studied and adhered to during the installation of SmartLink controllers
and assumes no liability for injury or death incurred during the process.
Questions
Contact OutdoorLink's support team at (256) 885-9768 ext. 1 or support@outdoorlinkinc.com.
Table of Contents
2
3
4
5
6
7
9
© 2022 OutdoorLink, Inc. | Updated 7.1.2022
(256) 885-9768 | www.outdoorlinkinc.com
1
SL-2-DC-002 Operating Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for outdoorlink SmartLink SL-2-DC-002
Summary of Contents for outdoorlink SmartLink SL-2-DC-002
-
Page 1: Table Of Contents
SL-2-DC-002 Operating Manual SmartLink SL-2-DC-002 Operating Manual Disclaimer OutdoorLink recommends all electrical codes are studied and adhered to during the installation of SmartLink controllers and assumes no liability for injury or death incurred during the process. Questions Contact OutdoorLink’s support team at (256) 885-9768 ext. 1 or support@outdoorlinkinc.com. -
Page 2: Product Overview
SmartLink controllers are hardwired to devices in the field and communicate through an independent Machine to Machine cellular connection. From there, data passes through Outdoorlink’s AWS server and is available to users in the SmartLink portal through cellular or internet access. -
Page 3: Controller Interface

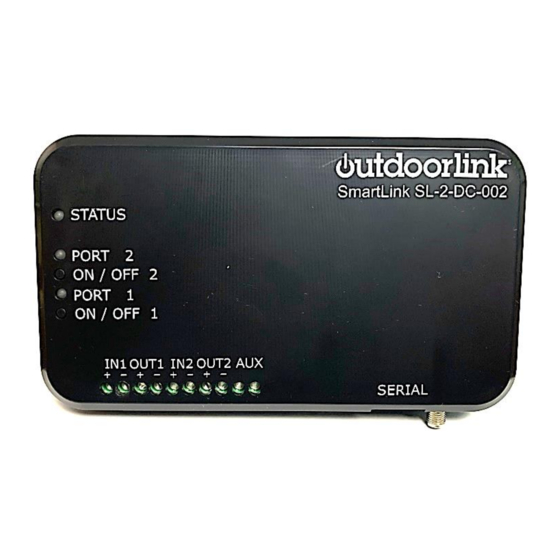

DC power OUT to Port / Device 2 Auxiliary device connection (i.e. battery thermistor) USB 2.0 Micro B USB connection for troubleshooting device RJ45 Serial port for network connection SERIAL External antenna connection (SMA/F) © 2022 OutdoorLink, Inc. | Updated 7.1.2022 (256) 885-9768 | www.outdoorlinkinc.com... -
Page 4: Hardware Specifications
0-95% humidity, non-condensing, RoHS Wiring Connection Terminal block, 18AWG supply and load wires Alarms Loss of Power, Low Voltage, High Voltage, Power Restore, Offline Manufacturing Origin Huntsville, AL, USA (Buy America Compliant) © 2022 OutdoorLink, Inc. | Updated 7.1.2022 (256) 885-9768 | www.outdoorlinkinc.com... -
Page 5: Split Power Supply Wiring Diagram
Kiosks and Digital Advertising Figure 4. Wiring diagram for split power supply Auxiliary OUTPUT (sensor device) DC INPUT 1 DC OUTPUT 2 (managed device) DC INPUT 2 DC OUTPUT 1 (managed device) © 2022 OutdoorLink, Inc. | Updated 7.1.2022 (256) 885-9768 | www.outdoorlinkinc.com... -
Page 6: Single Power Supply Wiring Diagram
Figure 5. Wiring diagram for single power supply Auxiliary OUTPUT (sensor device) DC INPUT 1 DC OUTPUT 2 (managed device) 18 AWG Jumper Wire DC OUTPUT 1 Connects IN+ to IN2+ (managed device) © 2022 OutdoorLink, Inc. | Updated 7.1.2022 (256) 885-9768 | www.outdoorlinkinc.com... -
Page 7: Installation Guidelines
3. The SL-2-DC controller requires 18 AWG wiring for both input and output connections. For devices with barrel jack connectors, OutdoorLink can provide a Connector Kit with female and male barrel connectors for 12V and 19V DC devices, upon request. - Page 8 The SL-2-DC includes an integrated cellular modem to enable communication between the device and Outdoorlink’s servers and uses LTE CAT M1 cellular technology, which is designed for IoT devices. The SL-2-DC has two antenna modes – internal and external – and is configured to internal mode when shipped.
-
Page 9: Sl-2-Dc-002 Special Features
9. Confirm System Health Confirm incoming voltage and each Relays load by clicking on the three vertical dots on the header of the OutdoorLink Control Box and select “Get Unit Status.” Then check the Power Readings for battery voltage and output loads. - Page 10 Relay is closed and its associated schedules are ignored. The relay schedules will continue to be Close Relay, ignored until another relay action is taken or a manual relay on or off is issued from the web Ignore Schedules portal. © 2022 OutdoorLink, Inc. | Updated 7.1.2022 (256) 885-9768 | www.outdoorlinkinc.com...
