MACHINIST X79-Z9-D7 User Manual

Hide thumbs Also See for X79-Z9-D7:
Table of Contents

Advertisement

Quick Links

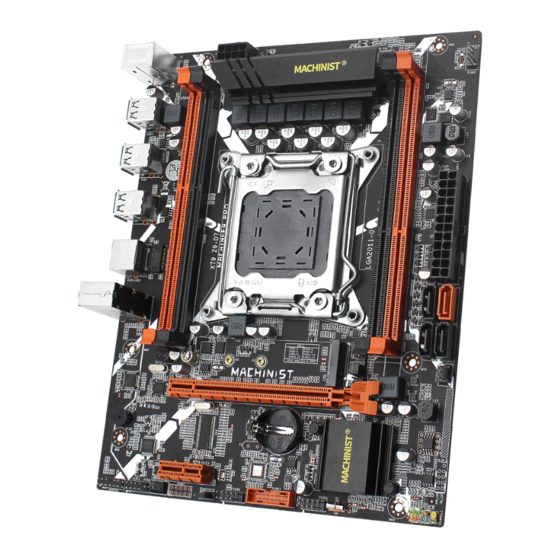

X79-Z9-D7
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for MACHINIST X79-Z9-D7

Summary of Contents for MACHINIST X79-Z9-D7

  • Page 1 X79-Z9-D7 User's Manual...

  • Page 2: Table Of Contents

    Any problem, please feel free to contact us. Contents Specifications .......................... 1 Overview of Components .................... 2 Install CPU & Fan........................3 Install Memory..........................4 Install Expansion Card........................ 5 Back Panel Connectors....................... 5 USB 2.0 Port.........................5 RJ45 LAN Port........................6 Audio Port..........................6 PS/2 Port..........................6 Internal Connectors........................

  • Page 3: Specifications

    Any problem, please feel free to contact us. Specifications X79 Z9 D7 Processor Supporting Intel Xeon E5 V1/V2 and Core i7 series CPU. Southbridge X79 Chipset Technology Dual Channel DDR3 Maximum 64GB (16GB*4) Capacity Memory Slot 4 * DDR3 PS/2 Green: mouse.

  • Page 4: Overview Of Components

    Any problem, please feel free to contact us. Overview of Components Package List: X79 Motherboard * 1 SATA Cable * 1 I/O Blocking * 1 CPU fan bracket * 1 — 2 —...

  • Page 5: Install Cpu & Fan

    Any problem, please feel free to contact us. Install CPU & Fan Please install the CPU into the CPU socket as shown below. Important • Make sure that the motherboard supports the CPU. • Always unplug the power cord from the power outlet before installing or removing the CPU to prevent hardware damage.

  • Page 6: Install Memory

    Any problem, please feel free to contact us. Install Memory The motherboard provides 4 DDR3 ECC DIMM slots with a maximum capacity of 64GB. 1. Wrench the latches on both sides of the memory slot outwards. 2. Insert the memory into the slot by aligning it with the notch in the slot. 3.

  • Page 7: Install Expansion Card

    Any problem, please feel free to contact us. Install Expansion Card The motherboard provides a PCI Express 3.0 X16 expansion slot. Place the expansion card in an available PCI Express slot and press the expansion card until it is fully inserted into the slot. Important •...

  • Page 8: Rj45 Lan Port

    Any problem, please feel free to contact us. RJ45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 1000Mbps/s data rate. The following describes the states of the LAN port LEDs. Audio Port Line-in Port The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc. Line-out Port The line out jack.

  • Page 9: Internal Connectors

    Any problem, please feel free to contact us. Internal Connectors F_PANEL1 Connector SPEAK1 Connector JAUDIO1 Connector This connector allows you to connect audio jacks on the front panel. Important • An incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it.

  • Page 10: Sata 2.0 Slots And 1* Sata 3.0 Slots

    Any problem, please feel free to contact us. 3* SATA 2.0 slots and 1* SATA 3.0 slots These SATA 3.0 connectors are SATA 6Gb/s interface ports. Each SATA connector supports a single SATA device. M.2 Slot Insert your M.2 SSD into the M.2 slot at a 30-degree angle. Secure the M.2 SSD in place with the screw.

  • Page 11: Jcom1: Serial Port Connector

    Any problem, please feel free to contact us. JCOM1: Serial Port Connector The COM connector can provide one serial port via an optional COM port cable. ATXPWR1, JATXPWR1: Power Connectors With the use of the power connector, the power supply can provide enough stable power to all the components on the motherboard.

  • Page 12: Cpu_Fan1, Sys_Fan1~3: Fan Connectors

    Any problem, please feel free to contact us. CPU_FAN1, SYS_FAN1~3: Fan Connectors CPU_FAN is a interface for CPU radiator. The 4pin fan has PWM intelligent speed regulation function, which can intelligently control the fan speed based on load and temperature changes.

  • Page 13: Bios Setup

    Any problem, please feel free to contact us. BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. BIOS identifies, configures, tests and connects computer hardware to the OS immediately after a computer is turned on. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading the operating system, etc.

  • Page 14: Enter Bios Setup

    Any problem, please feel free to contact us. Enter BIOS Setup Entering BIOS Setup When the computer starts up, BIOS enters the self-test process. When the self-test is completed, the following message is displayed: Press DEL key to enter Setup Menu. At this time, Press <Delete>...

  • Page 15: Reset Bios

    Any problem, please feel free to contact us. Reset BIOS When you need to restore the default BIOS settings to resolve certain issues, there are several ways to reset the BIOS: ∙ Go to BIOS and press F6 to load optimized defaults. ∙...
