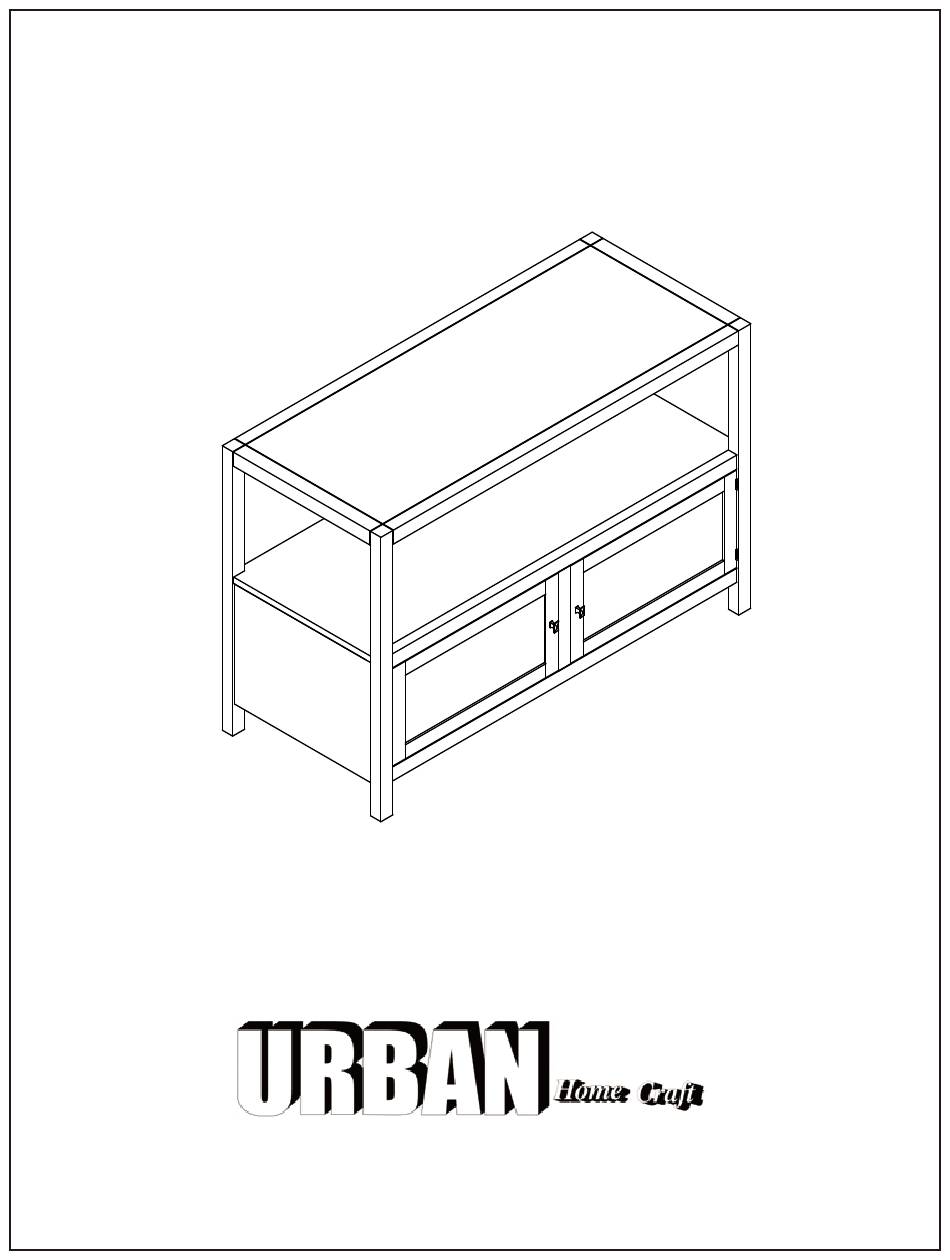

THANK YOU FOR PURCHASING OUR UHC
FOLDING TV STAND
MODEL# 100323-42F • OAK
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
PO BOX 7282 • HIGH POINT, NC 27264
URBAN HOME CRAFT CUSTOMER SERVICE: 1 866-985-9990
11/15/2010
Advertisement
Summary of Contents for Urban 100323-42F
- Page 1 THANK YOU FOR PURCHASING OUR UHC FOLDING TV STAND MODEL# 100323-42F • OAK THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. PO BOX 7282 • HIGH POINT, NC 27264 URBAN HOME CRAFT CUSTOMER SERVICE: 1 866-985-9990 11/15/2010...
-
Page 2: Warning Safety Precautions
ASSEMBLY INSTRUCTIONS - IMPORTANT PLEASE READ ALL THE INSTRUCTIONS BEFORE STARTING. CAREFULLY UNPACK & IDENTIFY EACH COMPONENT BEFORE ATTEMPTING TO ASSEMBLE REFER TO PARTS LIST. PLEASE TAKE CARE WHEN ASSEMBLING THE UNIT AND ALWAYS SET THE PARTS ON A CLEAN, SOFT, UNCLUTTERED SURFACE. OUR FURNITURE USES AN INNOVATIOVE, PATENT PENDING, QUICK ASSEMBLY AND NON- TOOL METHOD. -
Page 3: Parts List
PARTS LIST PIECE FRONT & REAR FOLDING LOK ASSEMBLY SIDE PANELS BOTTOM SHELVES SHELVES PLASTIC WEDGE PINS HANDLES ALLEN BOLT P. 3... - Page 4 BE CAREFUL. WATCH YOUR HANDS. • SEPARATE PIECES TO BE ABLE TO START ASSEMBLY. • TAKE PART 1 (FRONT & REAR FOLDING LOK) SET UNIT UP RIGHT, OPEN UNIT BY EX PANDING UNIT BY THE FRONT TO FULL EX PANS ION. P.
- Page 5 TO FIX THE SEMICIRLE INDENTATION TO WOOD PIECE. • TAKE PART 2 (SIDE PANELS) INSERT END PANELS INTO SIDE BY THE GROOVE BELOW SIDE RAIL, GENTLY SLIDE TO BOTTOM UNTIL BEVELED BOARDS INTERLOCK EACH OTHER. REPEAT PROCEDURE FOR OTHER END PANEL. P.
- Page 6 CORNER EDGE • TAKE BOTTOM SHELVES (3) AND LAY ON THE SHELF PINS WHICH WAS PRE-INSTALLED ON THE UNIT. • PLEASE ALSO PAY ATTENTION TO THE CORNER EDGES OF BOTTOM SHELVES (3), FACE THE CORNER EDGES TO SIDE PANELS (4) AND SLIDE DOWN TO FIX. P.
- Page 7 • TAKE SHELVES (4) PLACE 4 HOLES ON BOTTOM OF SHELVES ONTO WOOD DOWELS WHICH BUILDED ON FRONT & REAR FOLDING LOK ASSEMBLY (1). P. 7...
- Page 8 • INSERT PLASTIC WEDGE PINS (6) THROUGH HOLES IN SHELF (4) AND INTO FRONT& REAR FOLDING LOK ASSEMBLY (1). • ATTACH HANDLES (7) TO DOORS USING ALLEN BOLTS (8). P. 8...
- Page 9 • INSERT PLASTIC WEDGE PINS (6) THROUGH HOLES IN SHELF (4) AND INTO FRONT& REAR FOLDING LOK ASSEMBLY (1). • TAKE TOP (5) AND PLACE 6 BRACKETS WHICH BUILT ON THE BOTTOM OF TOP INSERT INTO THE HOLES OF BAR. P.
- Page 10 • INSERT PLASTIC WEDGE PINS (6) THROUGH HOLES IN TOP (5) AND INTO FRONT& REAR FOLDING LOK ASSEMBLY (1). P. 10...
