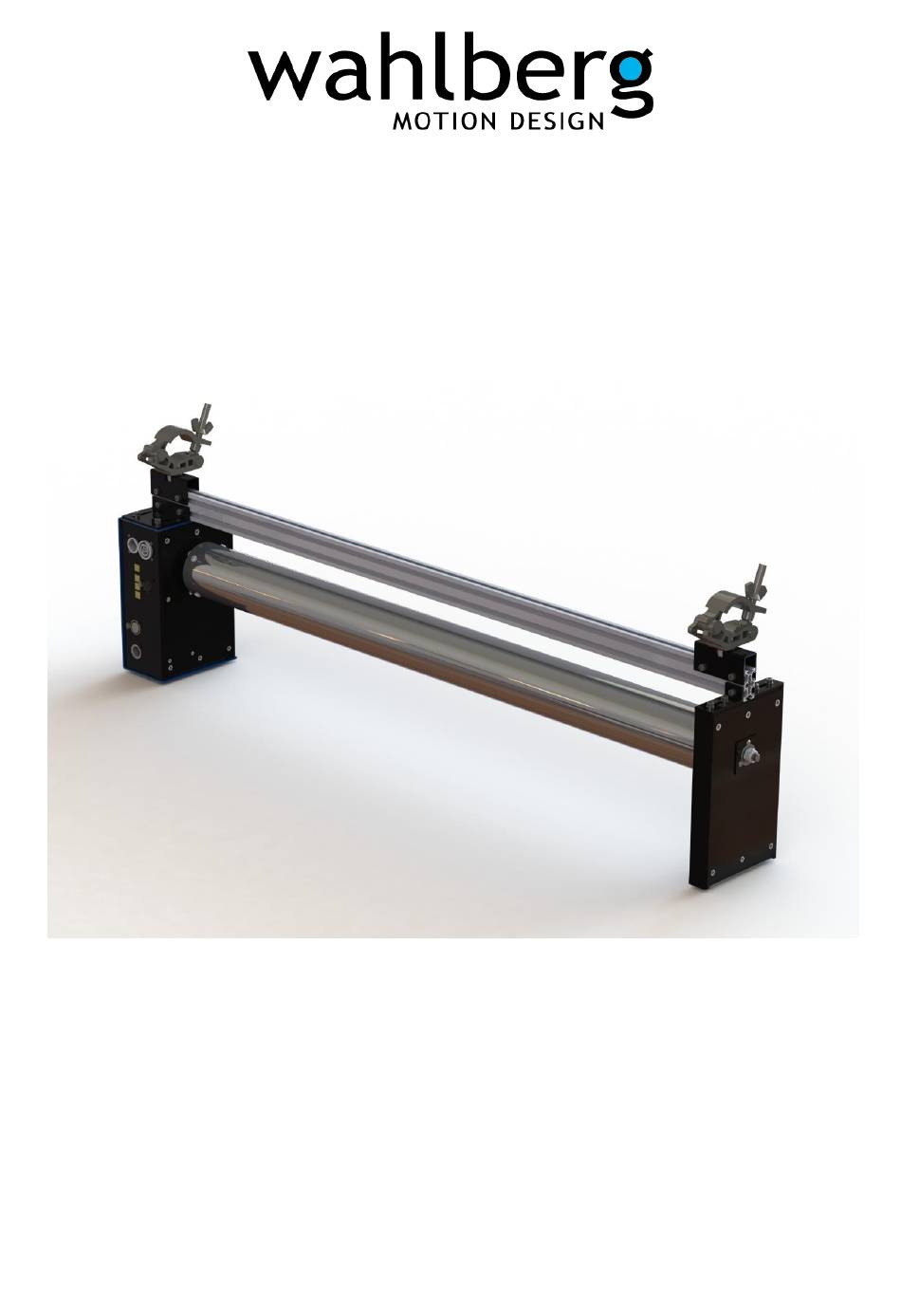

- Page 1 Mini Roll Down Series Item No. 289.701 (Slow Motor) and No. 289.702 (Fast Motor) User Manual WWW.WAHLBERG.DK AXEL GRUHNS VEJ 3 TELEPHONE: +45 86 18 14 20 8270 HØJBJERG EMAIL: sales@wahlberg.dk DENMARK...
-
Page 2: Safety Information
Mini Roll Down. If you have questions about how to operate the Mini Roll Down safely, please contact you Wahlberg Motion Design supplier or Wahlberg Motion Design. PROTECTION FROM ELECTRIC SHOCK −... -
Page 3: Index
Only use the Mini Roll Down to lift static loads. Disposing of this product Wahlberg Motion Design products are supplied in compliance with Directive 2012/19/EU of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), including amendments where applicable. -
Page 4: Table Of Contents
Index SAFETY INFORMATION INDEX TECHNICAL SPECIFICATIONS DRAWING INTRODUCTION ............................7 ACKAGE CONTENT ............................... 7 ESCRIPTION ............................... 8 REA OF USE ..........................8 SING FOR THE FIRST TIME ..............................8 RANSPORT PHYSICAL INSTALLATION ..................9 ASTENING THE OWN TO A FLAT SURFACE ) ................ -
Page 5: Technical Specifications
Technical specifications Model: Mini Roll Down Series Item no.: Dimensions: (L×W×H) Tube length max. 4m (13.1 ft) × 150 × 295 mm. (5.9 × 11.6 in.) without Manfrotto clamps Power supply: 100-240 V AC 50-60 Hz. Power consumption: Max. 150 Watt... -
Page 6: Drawing
Drawing Mini Roll Down Series (289) More detailed drawings can be found in Appendix 1 on page 21 289.805.003 Date: 2018-11-28... -
Page 7: Introduction
Introduction Thank you for selecting the Mini Roll Down, a DMX controlled roll down system from Wahlberg Motion Design. Before using the Wahlberg Mini Roll Down for the first time, please read this manual carefully. Failure in handling can cause injury of persons and/or damage the roll down. -
Page 8: Area Of Use
Exceeding the load rating may cause failure of the equipment. Do not modify the Mini Roll Down. For any modification of your Mini Roll Down, contact Wahlberg. It is the customers' responsibility that any local restrictions concerning the use of the Mini Roll Down are fulfilled. -
Page 9: Physical Installation
10 times the combined weight of all Mini Roll Downs and equipment to be installed on 2. Use the supplied rigging clamp or contact Wahlberg Motion Design for a replacement. 3. Fasten the clamp to the Mini Roll Down with the supplied M12 bolts, nuts, and washers in the hole in the mounting clamp of the Mini Roll Down. -
Page 10: Ac Power
AC power WARNING! Read “Safety Information” on page 2 before connecting the Mini Roll Down to AC mains power. WARNING! For protection from electric shock, the Mini Roll Down must be grounded (earthed). The power distribution circuit must be equipped with a fuse or circuit breaker and ground-fault (earth-fault) protection. -
Page 11: Data Link
Data link A DMX 512 data link is required in order to control the Mini Roll Down via DMX. The Mini Roll Down has 5-pin XLR connectors for DMX data input and output. The pin-out on all connectors is pin 1 = shield, pin 2 = (data -), and pin 3 = (data +). Pins 4 and 5 in the 5-pin XLR connectors are not used in the Mini Roll Down but are available for possible additional data signals as required by the DMX512-A standard. -
Page 12: Setup
WARNING! Read “Safety Information” on page 2 before installing, powering, operating, or servicing the Mini Roll Down. WARNING! Only experienced DMX users should operate the Mini Roll Down. Contact Wahlberg for further information and education on DMX protocol. Mounting the load... -
Page 13: Mode Setting
Mode setting The mode switch is found on the front panel left to the DMX address switches and this can be used to select various functions and ramps for normal operation, setup and diagnostic purpose. Mode setting overview MODE Function Description Note DMX Positioning slow ramp... - Page 14 DMX channel overview channel Function Description Position rough This channel controls the position of the Mini Roll Down, with the speed (DMX channel 3). This rough position works together with the fine position (DMX channel 2). The rough position and the fine position are multiplied in to a 16 bit channel. The rough position is the MSB.
-
Page 15: Setting The Top And End Positions
Setting the top and end positions When the Mini Roll Down is ready, the first step is to set the soft-limit top and bottom positions. See channel description for channel 4, 5 and 6 above. When the range has been set once on channel 6 it is saved and does not need to be set again unless a new range is needed. -
Page 16: Positioning
Positioning When the Mini Roll Down has been setup and the top position is set, it is possible to use it for positioning run. The position is set on the DMX channel 1 and 2, which controls the rough-and fine-position. Where 100 % is the top-position and 0 % is the bottom-position. -
Page 17: Manual Operation Using The Control Box
Manual operation using the Control Box Insert the control box (not included) into the limit switch connector and apply mains power to the product. Procedure: State Step Description Setup/ Select mode 7 on the MODE switch and set a slow motor speed using the DMX Adjustment address switches, approx. -
Page 18: Duty-Cycle
Duty-cycle When the unit is continually operated for more than 30 minutes at full load, speed and high ambient temperatures, the below duty-cycle (DC) limitation will need to be considered. The duty-cycle (DC) is the fraction of a period where the motor is active. The duty-cycle is commonly expressed as a percentage or ratio. -
Page 19: Service And Maintenance
Mini Roll Down, and the Mini Roll Down should be taken out of operation until the error is eliminated. Spare parts Only parts ordered at or approved by Wahlberg should be used in the Mini Roll Down to ensure product function and stability. Contact Wahlberg to inquire about spare parts. On-site service On-site service and maintenance can be provided by the Wahlberg Motion Design, giving owners access to Wahlberg Motion Design’s expertise and product knowledge in a partnership that will... -
Page 20: Checklist
Checklist Use the checklist accordingly; before each use, each month etc. Check Type Result Installed / mounted correct Inspection Load and LEDs visible for the operator Inspection Load mounted safely Inspection powerCON TRUE1 Inspection powerCON TRUE1 Regularly check the condition of the powerCON TRUE1 connector system (cable connector and chassis) for clear signs of wear and tear. -
Page 21: Appendix 1 - Dimensions
Appendix 1 - Dimensions Mini Roll Down 289.805.003 Date: 2018-11-28... -
Page 22: Appendix 2 - Power Connector
Appendix 2 – Power Connector 289.805.003 Date: 2018-11-28... - Page 23 289.805.003 Date: 2018-11-28...
-
Page 24: Appendix 3 - Block Diagram
Appendix 3 - Block Diagram Input/output plugs Power out Power in Control Box 100-240 & Hard-limit DMX signal DMX signal Switch powerCON powerCON XLR 5 pole XLR 5 pole TRUE 1 TRUE 1 XLR 4 pole Power Controller Control supply input DMX signal Motor controller... -
Page 25: Mini Roll Down - Cheat Sheet
Mini Roll Down – Cheat Sheet MODE Function channel Function Positioning with slow ramp Position rough (Hi of a 16 bit DMX channel) Positioning with medium ramp Position fine (Lo of a 16 bit DMX channel) Positioning with fast ramp Set the maximum speed Positioning with slow ramp hard-limits active 60-65%...
