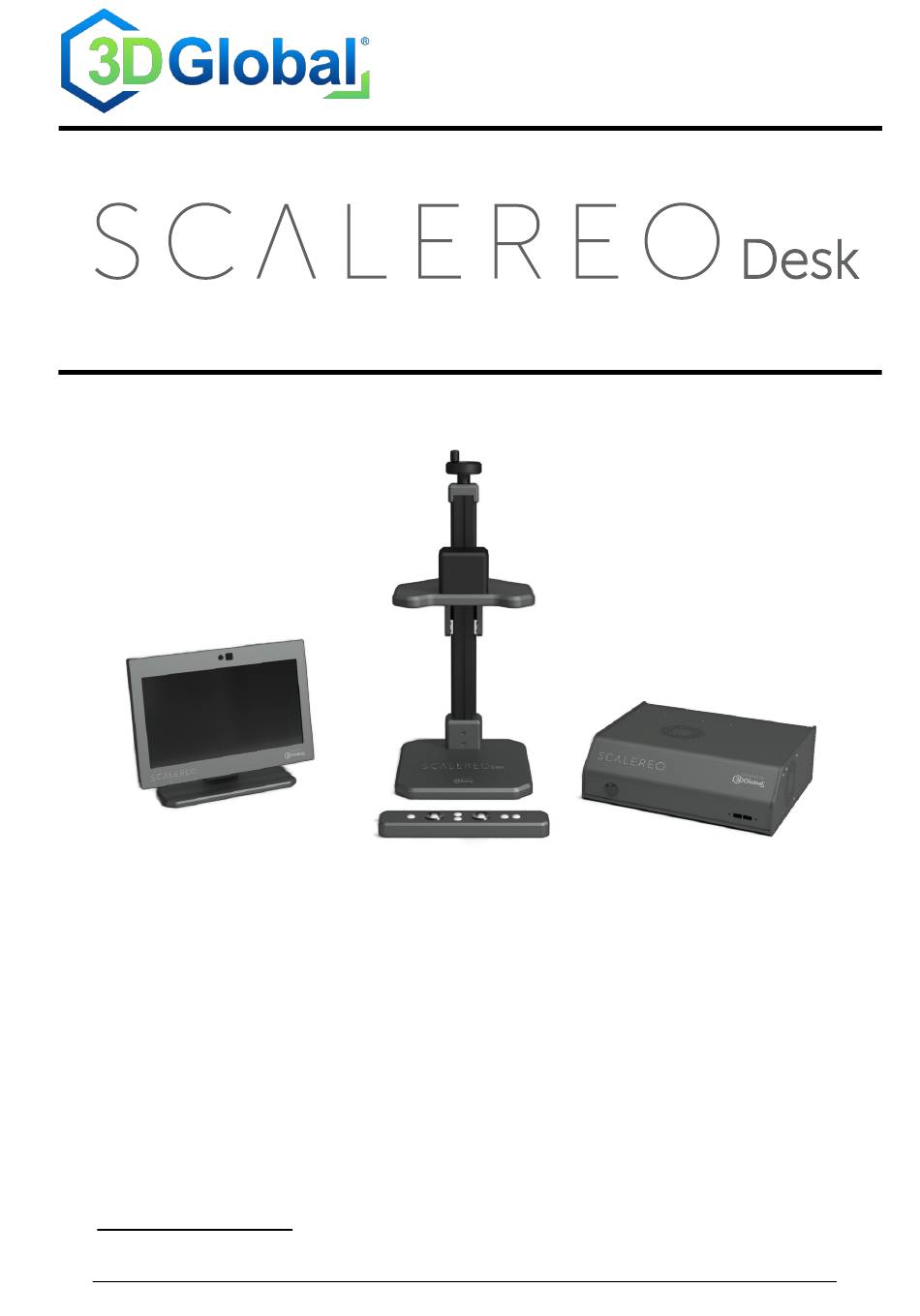

3D Global Solutions GmbH
Am Krebsgraben 15 / Geb. 2.2
DE-78048 Villingen-Schwenningen
www.3dgs.eu / info@3dgs.eu
Tel.: +49 (0) 7721-916 19 60
User Manual
Stereo 3D Video Microscope System
Article designations
SCALEREO-Desk_13xyyC
whereby x is a placeholder for A-Z and y a placeholder for 0-9 as possible product variants
TD_UserManual_SCALEREO-Desk_13xyyC
Rev. 1.4 / 25.02.2022
1 / 29
Advertisement
Table of Contents
Related Manuals for 3D Global SCALEREO Desk
Summary of Contents for 3D Global SCALEREO Desk
- Page 1 3D Global Solutions GmbH Am Krebsgraben 15 / Geb. 2.2 DE-78048 Villingen-Schwenningen www.3dgs.eu / info@3dgs.eu Tel.: +49 (0) 7721-916 19 60 User Manual Stereo 3D Video Microscope System Article designations SCALEREO-Desk_13xyyC whereby x is a placeholder for A-Z and y a placeholder for 0-9 as possible product variants TD_UserManual_SCALEREO-Desk_13xyyC Rev.
- Page 2 © 2021-2022 / 3D Global Solutions GmbH All rights reserved Duplication (in whole or in part) only with the express written permission of 3D Global Solutions GmbH. ® 3D Global and the “3D Global Logo” are registered trademarks of 3D Global GmbH.
-
Page 3: Table Of Contents
Table of Contents General ............................5 Introduction ..........................5 Purpose of this document ...................... 5 The device ..........................6 1.3.1 Device features ............................6 1.3.2 Scope of supply ............................6 1.3.3 Optional special accessories ........................7 1.3.4 Technical function............................ 7 Safety ............................ - Page 4 4.7.3 Copying recordings to USB stick ......................23 Settings ..........................24 4.8.1 Camera ..............................24 4.8.2 Foot switch ............................25 4.8.3 Headtracking ............................25 4.8.4 Data ............................... 25 4.8.5 Logging ..............................25 4.8.6 Advanced .............................. 26 4.8.7 Information ............................26 Problem remedies / FAQ ......................
-
Page 5: General
1.3.1, unless otherwise stated. 3D Global Solutions GmbH reserves the right to make changes to its products, their documen- tation or specifications without prior notice. All information and functions described in this doc- ument refer to the device status (hardware &... -
Page 6: The Device
1.3 The device 1.3.1 Device features Your “SCALEREO-Desk” is a complete digital 3D video microscope system for 3D imaging with- out glasses. No additional equipment is required to use the system. The system consists of the following assemblies: 1 - Signal Processing Unit (SPU) Central control &... -
Page 7: Optional Special Accessories
(magnification & focus), as well as for creating photo/video documentation To purchase optional accessories, please contact your dealer or contact 3D Global Solutions directly. We are also happy to offer additional accessories or specially developed customised solutions. -
Page 8: Safety
2. Safety Start of the safety instructions • Read this section particularly carefully before using the device! • Always keep this information close at hand! 2.1 Application limits 2.1.1 Intended use The product is intended exclusively for the following use: The SCALEREO-Desk is a stereo 3D real-time video working microscope with integrated light- ing and glasses-free ("autostereoscopic”) 3D screen, for magnified, spatial real-time visualisa- tion of objects with a maximum object size of 22x12x17cm and for manual backup of displayed... -
Page 9: Spatial Limits
2.2 Spatial limits 2.2.1 Required areas/space The following areas/spaces are required for the intended use (in cm): • Floor space (W x D): (minimum required area on a sufficiently stable, level table with ergonomically expedient working height) 100 x 60 •... -
Page 10: Interfaces
2.2.3 Interfaces The system has the following interfaces that mark the border between the system and the op- erating environment. Requirements of any kind beyond these interfaces are the responsibility of the operator/owner. 2.2.3.1 System <-> Human • Display => Representation of the image content •... -
Page 11: Further Limits
Only accessories or devices that have been explicitly approved for the purpose in writing by 3D Global Solutions GmbH may be used as optional accessories. All possible uses not described in the intended use and its conditions, as well as modifications in or to the device, are not permitted. -
Page 12: Symbols Used
2.5 Symbols used Within this user manual, various symbols are used for specific indication of dangers, risks or information. Warning of a danger zone Read, observe and comply with this information! Possible consequences of non-observance: • Danger to persons • Malfunction or damage to the system •... -
Page 13: Warning - Lighting
Opening the housing, repairs, modifications or conversions to the device or attempts to do so will result in the immediate voiding of any warranty/liability claims against 3D Global Solutions unless these have been expressly approved in writing by 3D Global Solutions. -
Page 14: Commissioning
3. Commissioning 3.1 General instructions To achieve the best possible results with your system, please observe the following general instructions: • The optimum image quality on the display is achieved after a warm-up period of approx. 20-30 minutes. • Make sure that your system is positioned so that the display is operated at an angle of 90°... -
Page 15: Unpacking Box 2
3.2.2 Unpacking box 2 • Open the upper side of box 2. • Remove the upper foam padding. • Due to the weight of approx. 10 kg and the size of the desk microscope unit, it may be expedient to have two people to lift out the device. •... -
Page 16: Commissioning
3.3 Commissioning 3.3.1 Cables and connections The SPU is the central control unit of the system, i.e. the cables of all other devices are connected to this device. The corresponding inter- faces are marked ac- cordingly. • Ensure that the mains switch on the back of the SPU, below the mains connection socket, is set to 0 (OFF). -
Page 17: System Start
3.3.2 System start • Turn the mains switch on the back of the SPU, below the mains connection socket to 1 (ON) to make the system ready for operation. • Briefly press the button on the front of the SPU to start the system. •... -
Page 18: Operation
4. Operation 4.1 Positioning of the specimens Depending on the actual height of the specimens to be viewed under the microscope, the height- adjustable camera/illumination head has to be brought into a suitable position. To do this, use the turning device attached to the upper end of the rail. A scale on the front of the rail shows you the ideal setting height for the respective specimen height. -
Page 19: Operation Of The Lighting
4.3 Operation of the lighting The SCALEREO-Desk system is equipped with a very helpful and variable multi-segment lighting unit. In addition, the lighting can be steplessly dimmed. All lighting settings can be changed with the lighting buttons on the ControlBar. 4.3.1 Lighting mode Use the middle button to switch through the different lighting modes until you have found a mode that suits your application. -
Page 20: Operation Of Camera Functions
4.4 Operation of camera functions The system is equipped with a very reliable and convenient automatic focus system. This auto- matically performs an auto-focus adjustment with each zoom operation. This function not only adjusts the focal point, or the plane of focus, but also optimises the alignment of the two stereo images to each other, so that a natural and convenient 3D image is obtained on the 3D display. -
Page 21: Headtracking System
4.5 Headtracking system It is not necessary to operate the headtracking system or change the settings as the system works autonomously in the background and optimised settings are already stored ex works. Depending on the current use and personal preferences, however, different headtracking modes may be found to be ideal. -
Page 22: Automatic 2D Visualization
4.5.3 Automatic 2D visualization In the two headtracking modes “FINE” and “COARSE” it is essential for the headtracking system to be able to recognise the user as a person without interference for a 3D image to be displayed! If there is no user in front of the system, the system automatically switches to a 2D image and displays only a "flat"... -
Page 23: Still Image / Live Image
4.6 Still image / live image The current image can be paused at any time to view a corresponding still image. This can be helpful, for example, with moving specimens (watch movements, etc.). • A short press on “Freeze Image” “freezes” the currently displayed image (still image). -
Page 24: Settings
• Select whether the data just copied to the USB stick should be permanently deleted from the SPU's local system memory. • If “Yes” is selected, the data is deleted from the local memory and is only available on the USB stick. •... -
Page 25: Foot Switch
4.8.2 Foot switch Here you can configure the wireless foot control unit that is available as an optional accessory. Details can be found in the documentation on the accessory. 4.8.3 Headtracking Optional headtracking modes can be activated or deactivated here => see paragraph 4.5.1 on page 21. -
Page 26: Advanced
4.8.6 Advanced Advanced service menu (PIN-protected) that can only be used at the request of our Support department. => For service purposes only 4.8.7 Information Information on the current software version number, system type and the possibility of updating individual applications. =>... -
Page 27: Problem Remedies / Faq
5. Problem remedies / FAQ The following list is intended to help you localise possible errors and to suggest possible causes and solutions. If necessary, contact the manufacturer’s Support department (see page 29). Problem Possible cause Possible remedies Remarks • Check the connections •... -
Page 28: Annex
Simplified EU Declaration of Conformity in accordance with Directive 2014/53/EU / Annex VII: 3D Global Solutions GmbH hereby declares that the radio equipment type SCALEREO-Desk_13xyyC is in compli- ance with Directive 2014/53/EU. The complete text of the EU Declaration of Conformity can be found at the following Internet address: https://t1p.de/3DGS-DoC... -
Page 29: Support
Please note that goods sent to the manufacturer without prior consultation or unannounced may NOT be accepted and may be returned to you by the transport company at your expense. Manufacturer’s address: 3D Global Solutions GmbH Am Krebsgraben 15 / Gebäude 2.2 78048 Villingen-Schwenningen / Germany Tel.:...
