Z3 Technology Z3-DM8169-VI-RPS User Instructions

Video infrastructure 1080p60 system, high definition video processor module dm8169 rapid prototyping system
Hide thumbs Also See for Z3-DM8169-VI-RPS:
Table of Contents

Advertisement

Quick Links

Download this manual

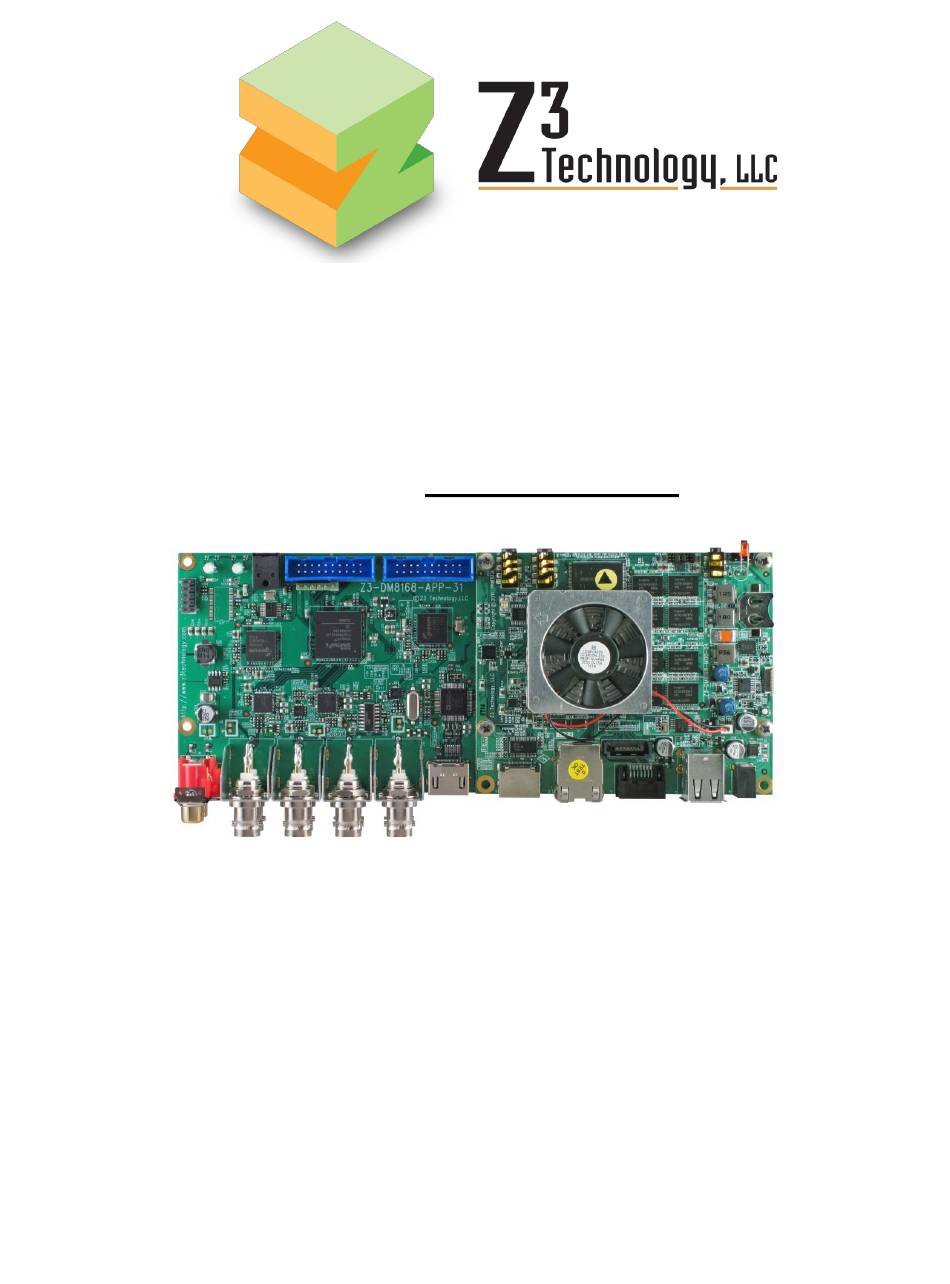

User Instructions
Video Infrastructure 1080p60 System
High Definition Video Processor Module
DM8169 Rapid Prototyping System
Z3-DM8169-VI-RPS
Model Name:
DOC-USR-0010-02
Manual Version 1.05.03b
Software Version 1.05.02
July 26, 2013
Before attempting to connect or operate this product, please read these
instructions carefully and save the manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z3-DM8169-VI-RPS and is the answer not in the manual?

Questions and answers

Related Manuals for Z3 Technology Z3-DM8169-VI-RPS

Summary of Contents for Z3 Technology Z3-DM8169-VI-RPS

  • Page 1 User Instructions Video Infrastructure 1080p60 System High Definition Video Processor Module DM8169 Rapid Prototyping System Z3-DM8169-VI-RPS Model Name: DOC-USR-0010-02 Manual Version 1.05.03b Software Version 1.05.02 July 26, 2013 Before attempting to connect or operate this product, please read these instructions carefully and save the manual for future use.
  • Page 2 105.03a 7/26/13 Updated supported resolutions on p.7, corrections on p.12/14, formatting tweaks on p.27 1.05.03b 7/26/13 Added note about “Supported Outputs” section ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 3: Table Of Contents

    NAND Recovery Procedure ..................31 14.1 Purpose ......................31 14.2 Overview of the Process ..................31 14.3 Reloading the Flash ................... 32 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 4 Flash Programming Setup ..................33 14.5 Test and Programming Setup ................. 34 14.6 Log of Successful Flash Programming ............... 35 15. Troubleshooting ....................... 39 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 5: General Description

    Z3-DM8169-VI-RPS V1.05.03b 1. General Description The Z3-DM8169-VI-RPS development system that allows encode/decode of 1080p60 video to/from a variety of different sources. It consists of both hardware and software. The hardware provided includes one Z3- DM8169-MOD System on Module card and a carrier or application board, the Z3-DM8169-APP-3x (x is the HW release version), which provides advanced video input capabilities.
  • Page 6 CONFIDENTIAL Z3-DM8169-VI-RPS V1.05.03b An application board, the Z3-DM8169-APP-3X, is available from Z3 Technology and is included with the Z3- DM8169-VI-RPS system. This application board uses the I/O expansion capability of the Z3-DM8169-MOD to implement additional functions not present in the base module. The Z3-DM8169-APP-3X application board has an HDMI input, 3G SDI input/output, ASI input/output, YPbPr input and two analog stereo audio inputs.

  • Page 7: Features

    1080p60, 1080p50, 1080i60, 1080i50, 720p60, 720p50, 576p50, 576i25, 480p60, and 480i30 Component: 1080i60, 1080i50, 720p60, 720p50, 576p50, 576i25, 480p60, and 480i30 Note: Composite is not supported in this release. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 8: Applications

    Whether the end application requires encode or decode of media from storage or streaming, the readily available, production-ready Z3-DM8169-MOD will simplify the overall system design, reducing time to market and cost. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 9: Thermal Considerations

    The maximum continuous power consumption by the whole Z3-DM8169-MOD system during normal operation should be less than 18W, with up to 12W dissipated by the main processor. Please plan the cooling strategy appropriately. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 10: Serial Interface Control

    5. Serial Interface Control 5.1 Serial Connection to PC 1.) Plug-in a supplied serial cable from the Z3-DM8169-VI-RPS to your PC 2.) Set up TeraTerm on the PC for 115k, 8, N, 1, N, 1ms/char, 50ms/line 3.) Connect to the proper COM port 4.) Connect the supplied 12V power to the Z3-DM8169-VI-RPS...

  • Page 11: System Menu Control (Encoder)

    B-Frame GOP Structure B-Frame Interval Custom (default: 3) Custom (default: 1) B-Frame Temporal Layer Audio Delay Custom (default: blank) Custom (default: blank) Video Delay ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 12 1 = None, 2 = analysis, 3 = dataflow, 4 = debug2, 5 = debug 3, 6 = debug 4, 7 = debug5, 8 = enc, 9 = print User Settings Load User Settings Save User Settings Load Factory Default Settings Exit ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 13: Decode Menu

    RTP:IP Port or UDP IP:Port Custom STC-PCR Offset (ms) Custom HDMI, SDI, Component Output Interface Display Resolution 1080p-60, 1080p-50, 1080i-60,1080i-50, 720p- 60, 720p-50, 480p, 576p ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 14 5 = debug 3, 6 = debug 4, 7 = debug5, 8 = enc, 9 = print User Settings Load User Settings Save User Settings Load Factory Default Settings Exit ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 15: Web Interface Control

    2.) Connect the Ethernet cable from the Z3-DM8169-VI-RPS unit directly to the PC 3.) Disable all wireless connections 4.) For a client PC to access the Z3-DM8169-VI-RPS factory default settings, set the IP address of the PC to 192.168.81.XX (The default IP address of the Z3-DM8169-VI-RPS is 192.168.81.68)

  • Page 16: System Menu Control (Encode)

    6.5 System Menu Control (Decode) **Please see section 5.5 above which will contain the exact same information for each of these parameters** ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 17: Demos

    7. Connect HDMI out of Brite-View Box to the HDMI in of the TV One 3G SDI converter. 8. Connect Ethernet from Z3-DM8169-MOD to a PC. 9. Verify the PC IP address is on the same subnet mask as the Z3-DM8169-VI-RPS. 10. Connect 12V Power supply to the Z3-DM8169-MOD.
  • Page 18 CONFIDENTIAL Z3-DM8169-VI-RPS V1.05.03b 12. Power on the Z3-DM8169-VI-RPS system 13. After booting up and running through initialization, a menu will appear. You will have the option to manually change the mode of the system to encode or decode mode. Below is a screenshot of a terminal console of the system as an encoder.
  • Page 19 CONFIDENTIAL Z3-DM8169-VI-RPS V1.05.03b 17. Under Media, press “Open File” and open the SDP file (provided by Z3 Technology on your Z3 Server Account). 18. You should now see video playing on VLC. *It is possible that you may need to reboot if you do not see video in VLC For UDP (MPEG-2 TS) Streaming: 14.

  • Page 20: Encode & Stream With Z3-Mvp-02 Decode (Rtp Only)

    7. Connect HDMI out of Brite-View Box to the HDMI in of the TV One 3G SDI converter 8. Connect 12V Power supply to the Z3-DM8169-MOD *Before powering up the Z3-DM8169-VI-RPS system, make sure the Brite-View Box and TV One converter are running 9.
  • Page 21 13. On the encoder menu, press “M” to change the Destination IP address. We are using a Z3-MVP-02 as the decoder. 14. Press “S” to start streaming. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 22 Z3-MVP-02 is 192.168.1.111), and then press “S” to start streaming 9. You should now see video playing on the monitor *It is possible that you may need to reboot both the Z3-DM8169-VI-RPS system and Z3-MVP-02 systems if you do not see video on the monitor ___________________________________________________________________________________________ Z3 Technology, LLC ♦...

  • Page 23: Encode & Stream With Z3-Mvp-02 Decode; Back-To-Back Asi Demo

    HDMI LCD Monitor converter converter 3G SDI 3G SDI Encoder Decoder Z3-DM8169-VI-RPS Z3-DM8169-VI-RPS This demo will become functional at a later date ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 24: Installing The Released Materials

    “images” directory will be created at the project level. All images and executables will be located in the "images" directory, ready to be transferred to the target. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 25: Configuring The Target For Your Own Development Environment

    7.) Now upload the new environment variables to the board In TeraTerm, go to the "File" menu and click on "Send file...".Select the file with the variables that was just edited. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 26: U-Boot Startup Scripts

    Update root file system ramdisk run update-jffs2 Update jffs2 image (requires mtd-utils on host) run update-ubifs Update jffs2 image (requires ubiutils on host) ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 27: Building The Code

    "z3-env". Every time you start a new shell, you should set the environment by running “source z3-env”. This will set environment variables such as $PRJROOT and $ROOTFS to the appropriate paths. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 28: Ubifs

    Reboot the board and stop at the u-boot prompt. In U-Boot then enter the commands: Z3-DM8169-MOD# setenv bootcmd run nand_boot_ubifs Z3-DM8169-MOD# saveenv ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 29: Dependencies

    For Fedora Core, use the following command to install the needed packages: sudo yum install mtd-utilsmtd-utils-ubi Note: Fedora Core 14 has mkfs.ubifs, but Fedora Core 12 and 13 do not have it. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 30: Updating Firmware

    4. Connect the Ethernet cable from the Z3-DM8169-VI-RPS directly to the PC. 5. For a client PC to access the Z3-DM8169-VI-RPS, set the IP address of the PC to 192.168.81.XX. 6. Open Firefox or Internet Explorer 8 (or above) as your web browser.

  • Page 31: Nand Recovery Procedure

    Gets the file “u-boot-env.scr'” from the server and writes to Flash. c. Gets the file “u-boot.bin.img” from the server and writes to Flash. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 32: Reloading The Flash

    Once the Flash initialization is successful, the jumper blocks need to be returned to their default positions on pins 5-6, 9-10 and 15-16 of the J20 header. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 33: Flash Programming Setup

    ************************************* Z3-DM8169-MOD# Any result different from this represents a failed test. In this case, please troubleshoot the hardware or the test setup. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 34: Test And Programming Setup

    2. Place jumpers on pins 1-2, 3-4 and 5-6 of the boot jumper block J20 for BOOTP. The default is shown below. Pins 5-6, 9-10, and 15-16 are default to boot from Flash. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 35: Log Of Successful Flash Programming

    Erasing at 0x260000 -- 100% complete. Writing to Nand... done Using DaVinci EMAC device TFTP from server 192.168.0.6; our IP address is 192.168.81.68 Filename '/z3/z3-netra/init/images/u-boot-env.scr'. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 36 2621440 bytes written: OK Using DaVinci EMAC device TFTP from server 192.168.0.6; our IP address is 192.168.81.68 Filename '/z3/z3-netra/init/images/ubifs-image'. Load address: 0x82000000 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 37 ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ################################################################# ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 38 Warning: Erase size 0x00002000 smaller than one erase block 0x00020000 Erasing 0x00020000 instead Erasing at 0x260000 -- 100% complete. Writing to Nand... done ************************************* ******** NAND update SUCCESS ******** ************************************* Z3-DM8169-MOD# ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 39: Troubleshooting

    1) Check IP address and subnet mask of Z3-DM8169-VI-RPS and computer. 2) Exit the serial menu and use the Linux command prompt to ping PC from Z3-DM8169-VI-RPS. 3) Use the command prompt on a PC to ping the Z3-DM8169-VI-RPS from the computer.
