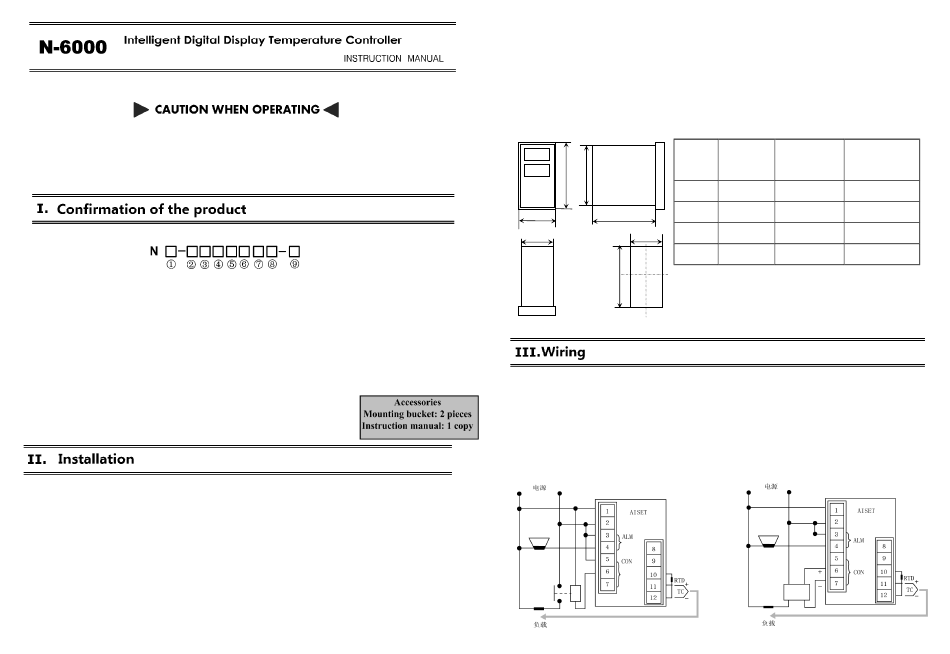

Yatai N-6000 Instruction Manual

Please read this manual thoroughly for the instruction of correct usage before using this product and keep this
manual as a reference.
l
Before cleaning the controller, please ensure that the power is switch off.
l
Please remove stains on the display panel by using a soft cloth only.
l
No scrubbing or touching the display panel with any hard object, the display panel can be easily scratched.
l
Do not press any button on the display panel using pointy objects such as ballpoint pen or screw driver, it
can easily scratch the panel or damage buttons on the panel.
Please confirm the product you received is in full agreement with the model that you selected according to the
following codes:
①Panel Dimensions（mm）
D:96×96 F:96×48
E:72×72 G:48×48
② ype of Display
T
6: Double rows display
③
Type of control action
0: On-off action Relay 3: Time proportion action
4: On-off PID action with auto-tuning
7: Single phase zero-across pulse PID action with auto-tuning
④
On -off position Alarm
0: No alarm 1: High alarm
2.1 Caution when installing
Please install the controller under the following conditions:
l
Temperature: 0 to 50 degrees C.
l
Humidity: 45% to 85% RH.
l
Atmospheric pressure: 86 to 106kPa
Please avoid the following conditions during installation:
l
Rapid temperature changes, leading to dew condensation.
l
Corrosive gases (especially sulfide gas, ammonia, etc.) or flammable gases.
l
Direct vibration or shock
l
Contact with water, oil, chemicals, steam , smoke, or hot water
l
High concentrations of atmospheric dust, salt or iron particles
l
Large inductive interference, resulting in static electricity, magnetic fields or noise.
l
Direct sunlight.
l
Radiant heat sources, etc
⑤
Type of Input
1: Thermocouple signal
2: Thermo-resistance signal (RTD input)
⑥
Type of Output
No: Relay contact (Maximum 3A)
V: Logic output for SSR
A: Relay contact (Maximum 16A)
B: Relay contact (Maximum 16A)
⑦
Type of ca libration
⑧
Lower limit of the span
⑨
Upper limit of the span
2.2 Mounting Process
（1）Cut out rectangle holes on the panel for installing the controller according to the required hole size.
When installing more than one controller, the minimum horizontal and vertical distance between two holes should be 25mm
and 30mm respectively.
（2）Insert the controller into the hole on the panel.
（3）Insert mounting bracket in the slot for mounting the controller.
（4）Push the mounting bracket tightly to connect the instrument and the panel firmly
2.3 Dimension in millimeters
Model
H h
ND
B L
NE
b b'
NG
h'
3．1 Wiring cautions
（1） For thermocouple input, use the specified compensation wire.
（2） For RTD input, use leads with low resistance and having no resistance differences among the 3 leads.
（3） Conduct input signal wiring away from instrument power, electric equipment power and load lines to
avoid noise induction.
3．2 Terminals' configuration
（1）Terminals for Model:
ND/F/E-6011, 6311, 6411, 6012, 6312, 6412
H×B h×b×L h'×b'
96×96 92×92×70 (92+1)×(92+1)
72×72 68×68×70 (68+1)×(68+1)
NF 96×48 92×44×70 (92+1)×(44+1)
48×48 44×44×100 (44+1)×(44+1)
（2）Terminals for Model (with SSR):
ND/F/E-6401V, 6401V, 6302V, 6402V
