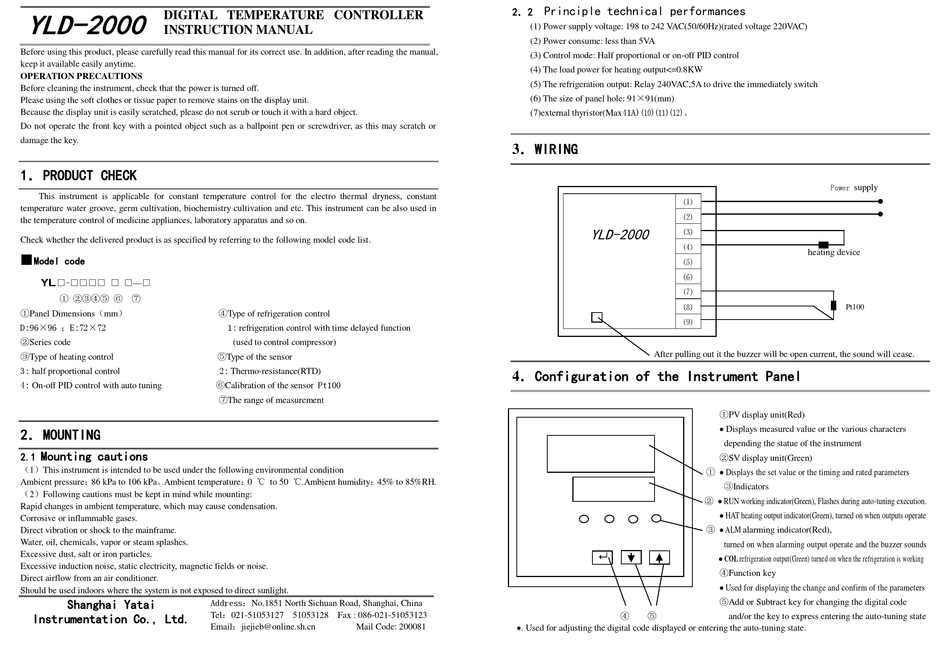

Yatai YLD-2000 Instruction Manual

YLD-2000 DIGITAL TEMPERATURE CONTROLLER
INSTRUCTION MANUAL
Before using this product, please carefully read this manual for its correct use. In addition, after reading the manual,
keep it available easily anytime.
OPERATION PRECAUTIONS
Before cleaning the instrument, check that the power is turned off.
Please using the soft clothes or tissue paper to remove stains on the display unit.
Because the display unit is easily scratched, please do not scrub or touch it with a hard object.
Do not operate the front key with a pointed object such as a ballpoint pen or screwdriver, as this may scratch or
damage the key.
1． PRODUCT CHECK
This instrument is applicable for constant temperature control for the electro thermal dryness, constant
temperature water groove, germ cultivation, biochemistry cultivation and etc. This instrument can be also used in
the temperature control of medicine appliances, laboratory apparatus and so on.
Check whether the delivered product is as specified by referring to the following model code list.
■
Model code
YL
□-□□□□ □ □—□
① ②③④⑤ ⑥ ⑦
①Panel Dimensions（mm）
D:96×96 ；E:72×72
②Series code
③Type of heating control
3: half proportional control
4: On-off PID control with auto tuning
2． MOUNTING
Mounting cautions
2.1
（1）This instrument is intended to be used under the following environmental condition
Ambient pressure： 86 kPa to 106 kPa。 Ambient temperature： 0 ℃ to 50 ℃.Ambient humidity： 45% to 85%RH.
（2）Following cautions must be kept in mind while mounting:
Rapid changes in ambient temperature, which may cause condensation.
Corrosive or inflammable gases.
Direct vibration or shock to the mainframe.
Water, oil, chemicals, vapor or steam splashes.
Excessive dust, salt or iron particles.
Excessive induction noise, static electricity, magnetic fields or noise.
Direct airflow from an air conditioner.
Should be used indoors where the system is not exposed to direct sunlight.
Shanghai Yatai
Instrumentation Co., Ltd.
④Type of refrigeration control
1: refrigeration control with time delayed function
(used to control compressor)
⑤Type of the sensor
2: Thermo-resistance(RTD)
⑥Calibration of the sensor Pt100
⑦The range of measurement
Address：No.1851 North Sichuan Road, Shanghai, China
Tel：021-51053127 51053128 Fax : 086-021-51053123
Email：jiejieb@online.sh.cn Mail Code: 200081
Principle technical performances
2．2
(1) Power supply voltage: 198 to 242 VAC(50/60Hz)(rated voltage 220VAC)
(2) Power consume: less than 5VA
(3) Control mode: Half proportional or on-off PID control
(4) The load power for heating output<=0.8KW
(5) The refrigeration output: Relay 240VAC,5A to drive the immediately switch
(6) The size of panel hole: 91×91(mm)
(7)external thyristor(Max41A)(10)(11)(12)。
3． WIRING
⑴
⑵
YLD-2000
⑶
⑷
⑸
⑹
⑺
⑻
⑼
After pulling out it the buzzer will be open current, the sound will cease.
4． Configuration of the Instrument Panel

④ ⑤
. Used for adjusting the digital code displayed or entering the auto-tuning state.
Power
supply
heating device
Pt100
①PV display unit(Red)
 Displays measured value or the various characters
depending the statue of the instrument
②SV display unit(Green)
①  Displays the set value or the timing and rated parameters
③Indicators
②  RUN working indicator(Green), Flashes during auto-tuning execution.
 HAT heating output indicator(Green), turned on when outputs operate
③  ALM alarming indicator(Red),
turned on when alarming output operate and the buzzer sounds
 COL refrigeration output(Green) turned on when the refrigeration is working
④Function key
 Used for displaying the change and confirm of the parameters
⑤Add or Subtract key for changing the digital code
and/or the key to express entering the auto-tuning state
