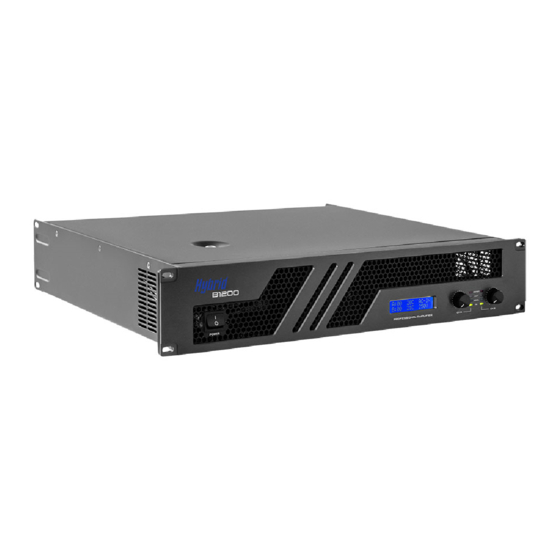

Summary of Contents for Hybrid B Series
- Page 1 PROFESSIONAL POWER AMPLIFIERS B1200 B1800 B2400 B4000 SERIES MK6 USER MANUAL...
- Page 2 IMPORTANT PRECAUTIONS Symbol alerting the operator to follow important Symbol warning the operator that uninsulated, operating instructions and precautions detailed in dangerous voltages are present within the this document enclosure that may pose a risk to electric shock. Save the carton and packing material even if the amplifier If the amplifier is used in an extremely dusty or smoky has arrived in perfect condition.
-
Page 3: Table Of Contents
B SERIES - PROFESSIONAL POWER AMPLIFIERS TABLE OF CONTENTS Introduction Unpacking Installation and Mounting Front Panel Controls and Features Back Panel Controls and Features Connecting Inputs and Link Connecting Outputs Output Mode Selection Stereo Mode Selection Diagram Parallel Mode Selection Diagram... -
Page 4: Introduction
The Hybrid MK6 B Series is based on the same advanced packaging and cabling is returned in original condition. circuit topologies that have made Hybrid amplifiers the choice of professionals for the past 30 years. - Page 5 B SERIES - PROFESSIONAL POWER AMPLIFIERS : POWER ON-OFF SWITCH : POWER ON LED’s Main power switch, switching the amplifier ON or OFF. Two green LED’s indicating when the amplifier is switched on. Once the amplifier is switched ON, the two green power-on LED indicators(5) and the LCD screen(4) will illuminate.
-
Page 6: Back Panel Controls And Features
BACK PANEL CONTROLS AND FEATURES MODELS: B1200 B1800 B2400 B4000 13 14 15 16 17 : AIRFLOW VENT : INPUT CHANNEL B This amplifier is equipped with dual variable speed fans and Channel B Input. In Parallel and Bridge mode, Channel B designed with front to back forced air cooling circuitry. -
Page 7: Connecting Inputs And Link
CONNECTING INPUTS AND LINK Use the Input XLR (Female) connectors (14 /15) on the rear panel to supply audio signals to your Hybrid B series amplifier. The link XLR (Male) connectors (12 / 13) may be used to daisy chain the audio inputs to other amplifiers when necessary. -
Page 8: Output Mode Selection
OUTPUT MODE SELECTION BRIDGED MONO MODE SELECTION The three-position, recessed output mode selection switch In Bridged Mono Mode, the amplifier is converted from (17) located on the rear panel configures the amplifier’s a two output channel amplifier to a single Mono output outputs to either Stereo, Parallel or Bridge-Mono mode. -
Page 9: Stereo Mode Selection Diagram
B SERIES - PROFESSIONAL POWER AMPLIFIERS STEREO MODE SELECTION Input: From mixer / line source Link: Input to additional amplifier/s Speaker A: 4-16Ω Impedance Mains Power: 220 - 240 Vac 50 ~ 60Hz Speaker B: 4-16Ω Impedance Link: Input to additional amplifier/s... -
Page 10: Parallel Mode Selection Diagram
PARALLEL MODE SELECTION Input: From mixer / line source Link: Input to additional amplifier/s Speaker A: 4-16Ω Impedance Mains Power: 220 - 240 Vac 50 ~ 60Hz Speaker B: 4-16Ω Impedance Speaker A Connector Speaker B Connector SPEAKER A POSITIVE TO PIN 1+ SPEAKER B POSITIVE TO PIN 1+ SPEAKER A NEGATIVE TO PIN 1- SPEAKER B NEGATIVE TO PIN 1-... -
Page 11: Bridged Mode Selection Diagram
BRIDGED MODE SELECTION Input: From mixer / line source Link: Input to additional amplifier/s Speaker: 8-16Ω Impedance Mains Power: 220 - 240 Vac 50 ~ 60Hz Speaker Connector SPEAKER POSITIVE TO PIN 1+ PIN 1- NOT CONNECTED SPEAKER NEGATIVE TO PIN 2+ PIN 2- NOT CONNECTED... -
Page 12: Protection Features
PROTECTION FEATURES ACTIVE CLIP LIMITING THERMAL PROTECTION When the amplifier reaches its full output power potential, Abnormally high heat sink temperatures will activate the known as the clipping point, the Active Clip Limiting Thermal Protection circuit for the affected channel only, protection feature will activate automatically, which is allowing the other output channel to operate normally. -
Page 13: Maintenance
Thank you for purchasing a Hybrid product and for reading with a moderate roll off filter. this user manual. You are now ready to use your Hybrid amplifier and we hope it brings you many hours of listening pleasure. -
Page 14: Specifications
SPECIFICATIONS LIST MODEL B1200 B1800 B2400 B4000 400W 600W 800W 1 200W * Stereo Power 8Ω 600W 900W 1 200W 2 000W * Stereo Power 4Ω 1 200W 1 800W 2 400W 3 600W * Bridge 4Ω 117dB 115dB 112dB 110dB Signal to Noise 90V/uS... -
Page 15: Block Diagram
Channel A Balanced / Unbalanced Input DISPLAY BOARD Active Protection Speakon Signal Channel A Channel A Volume Clip (Stereo, Parallel and Bridge) AMP 1 1 + 1 - 2 + 2 - POWER SUPPLY GND LIFT MODE Parallel SWITCH Bridge AMP 2 1 + 1 - Stereo... - Page 16 PROFESSIONAL POWER AMPLIFIERS B1200 B1800 B2400 B4000 SERIES MK6 www.vivaafrika.co.za...
