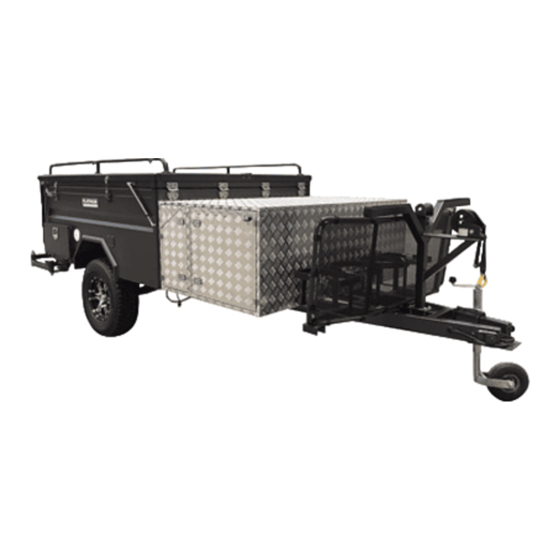

- Page 1 CHARIOT S4 OWNER’S MANUAL Version 2.2 | Last updated: Aug 2022 HARD FLOOR CAMPER TRAILER www.platinumcampers.com.au Copyright Platinum Camper Trailers & Offroad Caravans | 2022 | All Rights Reserved...
-
Page 2: Safety Information
Towing Capacity,” “Ball Weight Capacity,” and “Gross Combination Mass” Electric Brakes - All Platinum Camper trailers are fitted with electric drum brakes. This is not a Brake Controller. Brake controllers are an option. But you will require one to tow you camper safely and is a legal requirement for trailers over 750 kg. - Page 3 • Any warranty work must be completed by Platinum Campers, or an approved representative of Platinum Campers. Do not complete warranty work before you receive written approval. What is not covered under warranty? •...
- Page 4 You are about to embark on an amazing adventure, thank you for choosing Platinum Campers! With regular maintenance & care, your new Chariot S4 will last you many years into the future. Light a camp fire,...
-
Page 5: Table Of Contents
Purpose of this Manual The purpose of this owner’s manual is to assist and help new Chariot S4 Owner’s understand the correct use and operation of their camper trailer. In addition this manual outlines the service schedule to be followed, ensuring that correct maintenance is... -
Page 6: About Your Camper
C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE ABOUT YOUR CAMPER S P E C I F I C A T I O N S WEIGHT (TARE) 1100 kg FINISH... - Page 7 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE COMMON WEIGHT TERMINOLOGY TO UNDERSTAND Tow Ball Mass TARE - 1100kg This is the empty, unloaded weight of a camper trailer.
-
Page 8: First Day With Your Camper
C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE YOUR FIRST DAY WITH YOUR CAMPER We know you want nothing more than to pack up your new camper and hit the trails. But there are a few things you should do before your first trip from day 1 to ensure your camping adventures go without a hitch. - Page 9 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE WALK AROUND YOUR CAMPER We know hand-overs can be a little overwhelming, we throw a lot of information at you quickly, and nobody is going to blame you for not remembering everything.
- Page 10 Using the CAMPER THE HITCH Your Chariot S4 is fitted as standard with a 2,000kg Poly Block Off-Road Hitch. Before we start hooking up your trailer – I believe it is a good idea to get to know your hitch and understand what all the parts do. It is very easy to hook up with a 70 degree up and down motion and a complete 360-degree turn.
- Page 11 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE SAFETY CHAINS Each chain must be crossed and attached diagonally to the opposite side of the tow bar when hitching. Be sure chains aren’t too long or too short, and if necessary attach them to links further away from the end.
- Page 12 Tighten them with a torque wrench to 140nm (for a Chariot S4), it is 150nm on steel rims. If this is your first trip, please check these at 50km, 100km, 500km, and then before every trip.
- Page 13 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE HOW TO TIGHTEN WHEEL NUTS It is essential that your wheel nuts are re-torqued after an initial run in period. We recommend after 50km, 100km, 500km and then before every trip.
- Page 14 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE LOADING YOUR CAMPER In order to ensure an even distribution of weight and a suitable ball weight load, it is imperative to load your camper accurately to prevent excessive sway and/or roll.
- Page 15 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE CHOOSING A SPOT TO SETUP CAMP If you are camping at campsites, your setup will be a lot easier as the ground is generally flat, and generally speaking, they are usually a safe spot to setup your camper.
- Page 16 HOW TO OPEN YOUR CAMPER Setup Video Try the QR code - and watch a video to help you set up the Cadet. Main Tent Opening 1. Level camper with jockey wheel/leveling blocks and lower all stabilizer legs, you must level camper before opening. 2.
- Page 18 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE AWNING ONE SETUP 1. Ref to your tent map and understand which poles are needed for (Awning One) setup 2.
- Page 19 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE PACK DOWN YOUR CAMPER When Packing Down your Camper, there are a couple things you need to take note of: •...
-
Page 20: Using Your Camper
PAGE HOW TO USE YOUR KITCHEN Your Chariot S4 is fitted with a Slide Out Kitchen that is accessible from the side of the camper. This kitchen includes a sink with tap, 4 burner gas stove, and drawers. First - unlatch the kitchen by turning the handle on the front. Then slide the kitchen all the way out until you hear it lock into place. - Page 21 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE STEP BY STEP INSTRUCTIONS Step 1 – Make sure your gas bottle still has gas. The easiest way to check is to give the bottle a shake – you should be able to hear the gas moving around.
- Page 22 One the best things about your new camper trailer is the ability to take a lot of clean drinking water with you on your adventures. The Chariot S4 has a 110L water tank, as well as 2x 20L Jerry Cans - for a total of 150L of water.
- Page 23 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE KEEPING YOUR WATER TANK CLEAN There are a large number of options you have to keep your water tank clean and safe to drink from.
- Page 24 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE STORAGE & CARE This section is all about extending the life of your camper trailer, and to help you protect your investment.
- Page 25 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE INTERIOR PROTECTION Time, heat and moisture are you enemy here. Moisture, even in the smallest amount, if left long enough in the right conditions can and will cause mould on your canvas.
- Page 26 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE BATTERY STORAGE When packing away your camper for even a couple of days, we highly recommend you switch off the battery management system from the Main Isolator Switch.
- Page 27 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE SETUP If you have purchased and Elecbrakes system - this will be pre-installed on your trailer. Your next step is to set up the Smartphone app on your phone and make sure it is communicating with your controller.
-
Page 28: Maintenance
C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE MAINTENANCE & SERVICE SCHEDULE Your camper trailer is like any other vehicle on the road, and will require regular maintenance to keep it in safe and usable condition. - Page 29 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE WHEELS & TYRES HIGHWAY Your camper trailer is fitted as standard with 15’ wheels and 235/75 R15 AT Tyres. These tyres are “light truck” tyres with an All Terrain tread, with a maximum load rating of 2,000 kg on each axle at 80psi.
- Page 30 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE BRAKES & HANDBRAKE Your brakes are a very important part of your trailer, for obvious reasons. Unless you are experienced with braking systems, it is best to leave these jobs to professionals.
- Page 31 - your magnet should be replaced. If your magnet requires replacing, it is also a good idea to resurface or replace the drum armature. Again - Always replace in pairs - and use Platinum Genuine parts - or Trailer Spare Parts.
- Page 32 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE HANDBRAKE ADJUSTMENTS Your camper will come with the handbrake set at the correct adjustment point. However, over time this will need to be inspected and possibly readjusted.
- Page 33 Electrical systems can be dangerous. Especially 240v fitouts. Under no circumstances should you rely on an unqualified person, or attempt yourself if you are unsure. Platinum Campers will accept no liability for any personal loss or injury as a result of unqualified...
- Page 34 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE 12V CAMPER WIRING DIAGRAM...
- Page 35 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE TRAILER PLUG WIRING DIAGRAM...
- Page 36 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE ELECBRAKES WIRING DIAGRAM Right Signal Tall Lights Auxiliary Ground Service Brake Brake Light Left Signal Std 7pin Trailer Plug elecbrakes Elecbrakes Device NOTE: The blue wire is disconnected when an electric brake...
-
Page 37: Diagrams
C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE HUB ASSEMBLY DIAGRAM Rear Show/Pad on the Rear Front Show/Pad on the Front Front Show/Pad on the Front... - Page 38 - Try reset- ting fuse. Airlocked in water pump Drain water tank, refill tank, try again Faulty pressure sensor Replace pump, contact Platinum for replacement Bad electrical connection Check connections with multim- eter and clean terminals Pump working, but no water...
- Page 39 BRAKES PROBLEM POSSIBLE CAUSE SOLUTIONS Brakes not engaging or weak Open/short circuits Find and correct. If unsure contact Platinum Severe under adjustments Adjust brakes Faulty connection Check and clean connections Faulty brake controller Test and repair or replace, call Elecbrakes Support...
- Page 40 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE SERVICE SCHEDULE 100 km Before During 1,000 km 5,000 km 10,000 Trips Trips MECHANICAL First Trip every 200 km months...
- Page 41 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE REQUIRED NOT REQUIRED TICK WHEN COMPLETE 15,000 20,000 25,000 30,000 35,000 40,000 45,000 50,000 55,000 60,000 65,000 70,000 months...
- Page 42 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE ADVENTURE The best way to keep track of the Kilometres travelled by your camper trailer is to record your trips. Use this table below to record your adventures.
- Page 43 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE DATE DESTINATION STARTING KM END KM TOTAL KM RUNNING TOTAL...
- Page 44 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE DATE DESTINATION STARTING KM END KM TOTAL KM RUNNING TOTAL...
- Page 45 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE DATE DESTINATION STARTING KM END KM TOTAL KM RUNNING TOTAL...
- Page 46 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE DATE DESTINATION STARTING KM END KM TOTAL KM RUNNING TOTAL...
- Page 47 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE DATE DESTINATION STARTING KM END KM TOTAL KM RUNNING TOTAL You got this far traveller! Impressive! Time to create your own log - Call us if you need a hand ;-)
- Page 48 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE PLATINUM STORE LOCATIONS QUEENSLAND Brisbane (Factory) Cairns (Dealer) Townsville Gympie (Dealer) 617 Toohey Rd, Coverall Cars & Commercials 15 Leyland St, DRD Cars &...
- Page 49 C H A R I O T S 4 | O W N E R ’ S M A N U A L PAGE CONTACT DETAILS Phone 1300 378 399 Email sales@platinumcampers.com.au Website platinumcampers.com.au My Chariot S4 - Hard Floor Camper Trailer Name: Address: Model: VIN: Build Date Tare Weight Tyre Size Purchase Location Enjoy the Adventure! Time camping isn’t time spent, it’s...
- Page 50 CONTACT US Head office: 617 Toohey Rd, 1300 378 399 sales@platinumcampers.com.au Salisbury, QLD, 4107...
