SKYSHL SS413F Series Quick Manual

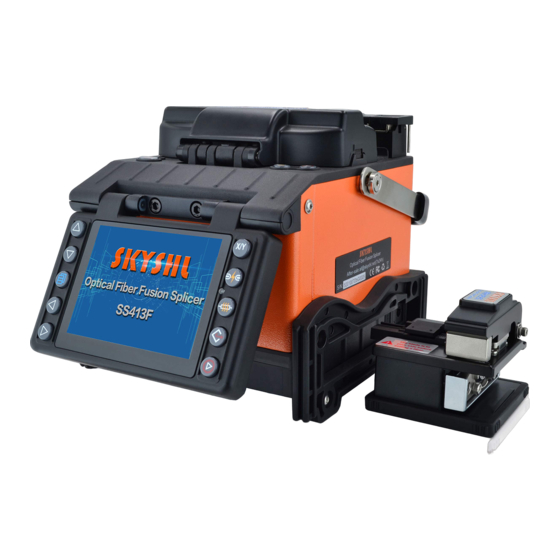

Optical fiber fusion splicer
Hide thumbs Also See for SS413F Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Shenzhen SKYSHL Technology Co.,Ltd.
Version:V2020.08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS413F Series and is the answer not in the manual?

Questions and answers

Related Manuals for SKYSHL SS413F Series

Summary of Contents for SKYSHL SS413F Series

  • Page 1 Shenzhen SKYSHL Technology Co.,Ltd. Version:V2020.08...

  • Page 2: Table Of Contents

    CATALOGUE Overview ……………………………………………… 1 Product specifications ………………………………… 1 Main components of fusion splicer ……………………… 3 Common Operating Interface Description ……………… 5 Power supply ………………………………………… 6 Cleaning operation before splicing ……………………… 8 Regular maintenance …………………………………… 9 Basic Splicing Procedures …………………………… 11 ARC Calibration ……………………………………...

  • Page 3: Overview

    Overview Thank you for choosing our products. This operation outline mainly introduces the product performance, basic operation steps and maintenance of optical fiber fusion machine, which is newly produced by our company. The machine adopts a high-speed image processing technology and special precision positioning technology.
  • Page 4 Multifunctional clamp is applicable to bare fiber, tail fiber, jumper, Fiber clamp covered fiber and stealth fiber. The clamp meets the requirement of industry standard FTTH fusion quick splicer. 60mm/40mm/20mm and a series of micro- shrink sleeves (some Heat-shrink sleeve features are optional) Provided with TFT color 4.3 LCD display.

  • Page 5: Main Components Of Fusion Splicer

    3．Main components of fusion splicer 3.1 Name of main components of fusion splicer Heater left press plate Heater transparent window cover Heating groove Heater right press plate Electrode V-groove Left fiber clamp Right fiber clamp 3.2 Descriptions of the keypad of fusion splicer...
  • Page 6 Buttons of keypad I Buttons of keypad II Automatic Boutton Readiness Manual mode Parameters menu mode Power switch Power switch Power switch Power switch Increasing the amount of Upward movement of fiber Invalid parameters/moving cursor Downward movement of Reducing the amount of Invalid fiber parameters/moving cursor...

  • Page 7: Common Operating Interface Description

    4. Common Operating Interface Description 4.1 Standby Interface of fusion splicer (Level 1 Menu) ● Top right corner of the screen :Indicating the present power supply mode of "power adapter". ● Top right corner of the screen :Indicating "Heater" is "warming up" at current.

  • Page 8: Power Supply

    Maintenance Settings 4.5【 】 【 】 5. Power supply 5.1 Starting up: Hold down button; When the LED indicator on the keypad is changed to green,release button. 5.2 Shutdown: Hold down button. After the LED indicator on the keypad is changed from green to red, release button.
  • Page 9 5.3.2 Lithium battery power supply ①The random lithium batteries are correctly connected to the bottom of the splicer (power module), that is to realize the power supply of lithium batteries in the splicer. ②Different battery configurations correspond to different charging modes. ●...

  • Page 10: Cleaning Operation Before Splicing

    ●Do not short circuit the positive and negative electrodes of the lithium battery, otherwise it will cause burns and explosion. ●Please use the standard lithium battery supplied by SKYSHL for the fusion splicer, please do not use other lithium batteries not supplied by our company.

  • Page 11: Regular Maintenance

    ●When cleaning, be careful not to bump into or touch the electrode rod. 7. Regular maintenance Cleaning objective lens(SS413F has no mirror, only camera) In routine maintenance, the ear syringe may be used for blowing off the dust from the surface of the mirror and the objective lens of the fusion splicer. The mirror and objective lens are dusty after a long time without routine maintenance, resulting in whitening and fuzzy black-clad of fiber image.
  • Page 12 <3> When the lens paper cleaning is invalid and the objective lens surface is free of visible dust particles, try to use a thin cotton swab dipped in a little pure alcohol (99% and above) and wipe gently the lens surface. It is recommended in principle not to use alcohol to clean the mirror surface.

  • Page 13: Basic Splicing Procedures

    Basic Fusion Procedures (Youtube Video:https://youtu.be/A6uZtgps8Ok) 1.Turn on the power of the SS413F 2.Confrimation of splice and heater "Auto SM" fusion mode is mode Recommended for SM(G.652& G.657)." Standard 60mm ” heater 3.Cleaning coating or tight sleeve of mode is recommended for the length optical fibers of protective casing is 60mm.
  • Page 14 12.Place the weld point of the fiber in the center of the heat shrink tube. 13.Move the fiber to place the weld point in the middle of the heat shrink tube. Splicing point 14.Close the heater cover and start heating 15.Complete ●The application of different types of fibers in FTTH projects: ①Open the wind cover and wait for the automatic reset of the fusion...
  • Page 15 250μm bare fiber is connected with the leather cable. the leather cable is connected with the leather cable. SOC hot splicing: The clamp must meet the industry standard FTTH hot melt quick connector. 【 Need a SOC fiber fixing clip (optional)】...

  • Page 16: Arc Calibration

    9. ARC Calibration ( Video: youtu.be/lBO6tsaLN5k) Why do we need to do Arc Calibration? When the fiber optic material, altitude, climate, temperature, humidity, electrode condition and other factors change greatly, it may lead to increased splicing loss of the l splicer; Arc calibration can effectively reduce the splicing loss.It is recommended to do an ARC calibration before the first use after getting the machine.

  • Page 17: Manually Adjust The Fiber Position

    <5>If it displays “Complete”, it means the calibration was successful. 9. Manually adjust the fiber position / Motor Calibration (Video: youtu.be/u0oUbqNg77A) Why do we need to adjust the position of the fiber? Due to the dust on the construction site, the initial position of the motor changed.
  • Page 18 <3>Select 【Right Fiber】, Press and hold the button to move the fiber to the right screen position(As shown in Figure10.3.2 ). Figure 10.3.1 Figure 10.3.2 <4>Select 【Left fiber】 and press and hold the to align the left and right fibers displayed in the X window horizontally(As shown in Figure10.4.2 ). Figure 10.4.1 Figure 10.4.2 <5>Select 【Right fiber】...
  • Page 19 <7>Select【Y Window】,and then press and hold the to make the center line of the fiber in the Y window overlap the horizontal auxiliary line in the Y window(As shown in Figure10.7.2). Figure 10.7.1 Figure 10.7.2 <8>Select【X Window】, and then press the key to overlap the center of the gap between the left fiber and the right fiber in X Window with the vertical auxiliary line(As shown in Figure10.8.2).

  • Page 20: Cutting Length Of Optical Fiber

    11. Cutting Length of Optical Fiber optique 12. Common troubleshooting Phenomenon Defect Reason Measures 1.Clean the fiber. 1.Dust on the end 2.Cut the end face of the fiber of optical fibe. 2. again and make sure the end face Condensation. of the fiber is flat.
  • Page 21 Phenomenon Defect Reason Measures 1.Use Cotton Swab and 1. V-groove is dirty Cleaved Fiber to clean the Misalignmen V-groove. 2. Motor stroke is t of fibers out of range 2.Manually adjust fiber position. Fiber end bevel angle 1.Adjust the height of the is too large fiber cleaver blade.

  • Page 22: Appendix A:warranty Period And Conditions

    For the use of non-original battery, battery charger, power adapter and so on not provided by our company, the Company will not accept any liability on all losses caused thereby. If you have any questions about the product, please contact SKYSHL.
  • Page 23 Maintenance and repair Information required (the following information shall be included in the machine) Full name, Company, Address, Phone number, Fax number and e- <1> mail. Fusion splicer model and serial number. <2> Problems and fault symptom encountered. <3> .What time and under what circumstances the problems occur? ①...
