List of Hardware

4 x 1-1/2" Bolts (1/4-20)
5 x Black Caster Bolts (#4)
3 x Non-Locking U-Casters
2 x Locking U-Casters
2 x 5/8" Wood Screws
***Read through all steps before proceeding
1.
With the box sitting upright and both ends open, remove the corner cardboard from around the top of the cabinet, then
slide the unit out on the cardboard shipping corners that it is sitting on. Now cut the tape holding the bottom cardboard
together and remove only the short side pieces.
NOTE: the Drawer Bank slides forward and is not attached. Be careful in the next step!
2. Gently tilt the unit forward enough to remove the back corner cardboard, then gently lower the back and tilt the
cabinet back to remove the front corner board and finish by lowering the front.

3. Extend and Secure the Drawer Bank:

(This is essentially a cabinet within the cabinet, retracted for shipping in a
standard box and forms the support for the front left extended portion of the
top.)
Remove the last drawer on the bottom, to expose the insert nuts inside the
walls for easier alignment. (Pull the drawer all the way out and find the levers
inside the tracks. Push and hold down on the left one, pull up and hold on the
right one to release the slides and pull straight out the remainder of the track.)
• Grasping the top of the Drawer Bank, slide it forward or out until the bolt holes line up with the insert nuts and
hand install two
1-1/2" bolts on one side then the two on the other side.
• Using a #2 Phillips screwdriver, tighten the bolts keeping the top edges as
flush as possible. See diagrams below.

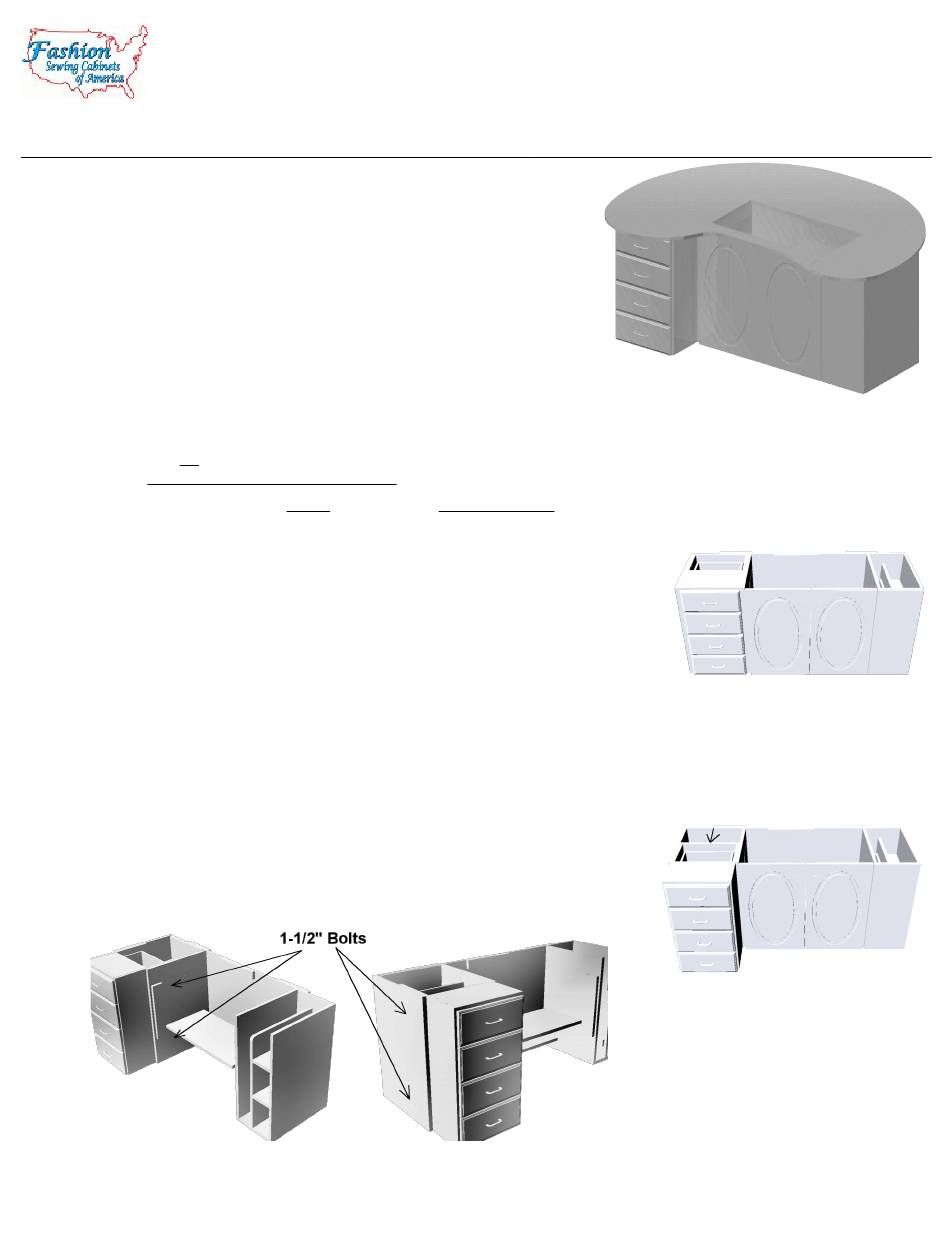

Inside Panel (Right)
Instructions_8370.odt Rev 3

List of Tools Needed

#2 Phillips Screwdriver
to assembly.***
Outside Panel (Left)

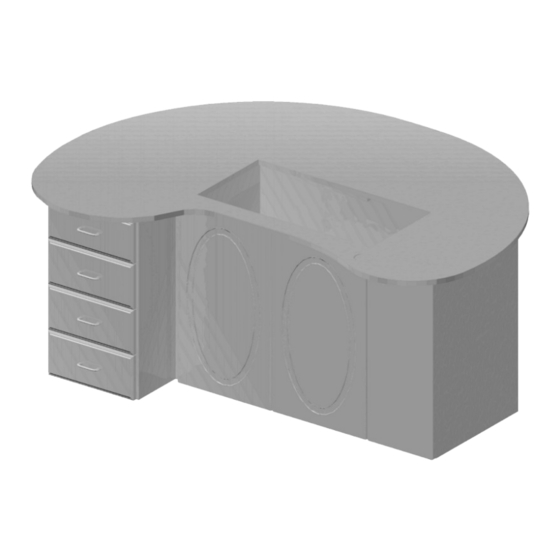

The Quilter's 7
06/27/18
8370
th
Heaven
Pg. 1 of 2
