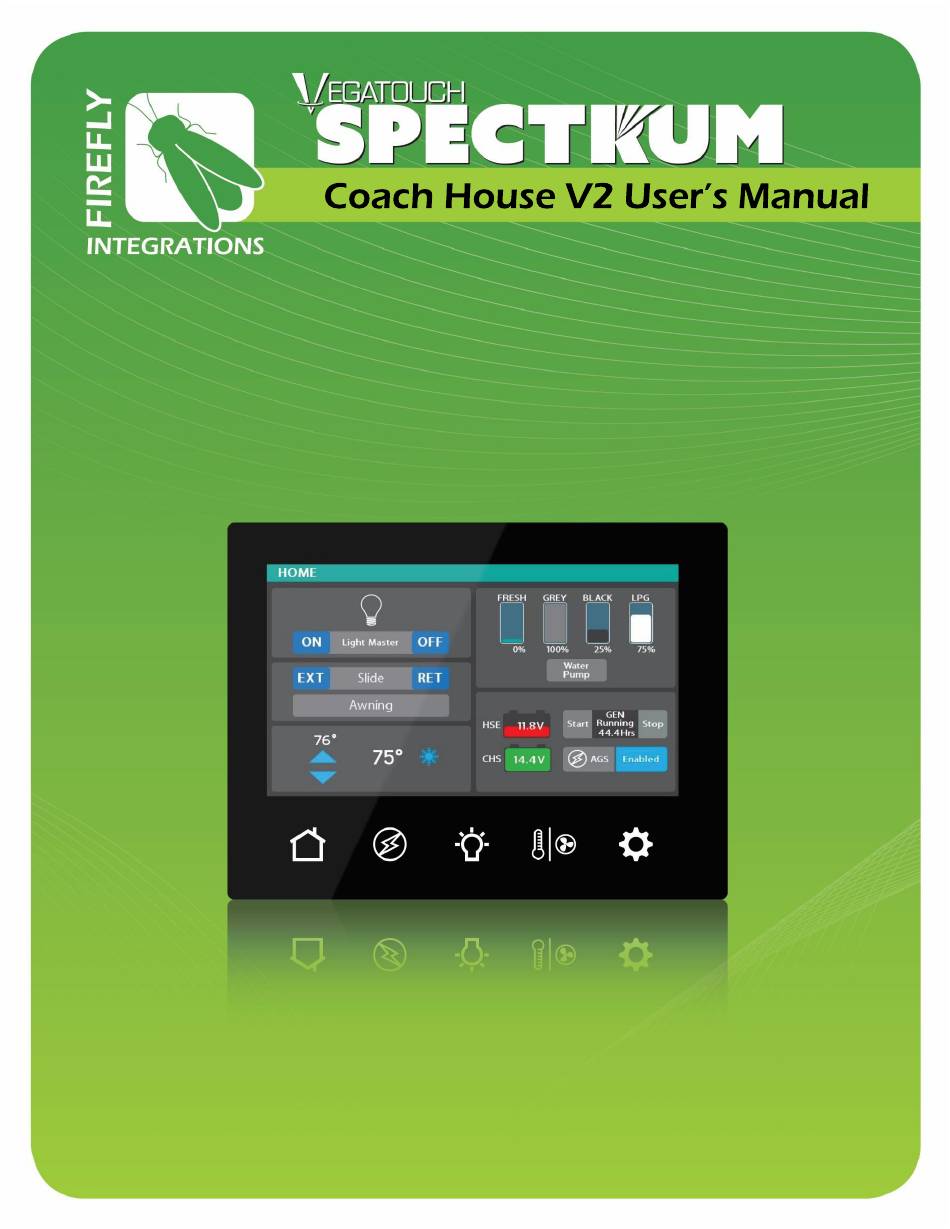

- Page 1 Coach House V2 User’s Manual Rev. 1...
-
Page 2: Table Of Contents
Coach House Spectrum V2 Table of Contents Screen Navigation Home AGS (Auto Gen Start) Lights 1013 Elroy Drive Climate Control/Fans Middlebury, Indiana 46540 Settings Phone: (574) 825-4600 M-F 7:30am – 5:00pm EST Settings/Switch Panel Info Support@Fireflyint.com Settings/Mobile App Facebook: @Fireflyintegrations Multiplex Hardware... -
Page 3: Screen Navigation
Spectrum Screen Navigation Tap any icon from the navigation bar to select the desired page. The currently selected page will always be listed in the top corner of the screen Climate Home Lights Settings Control... -
Page 4: Home

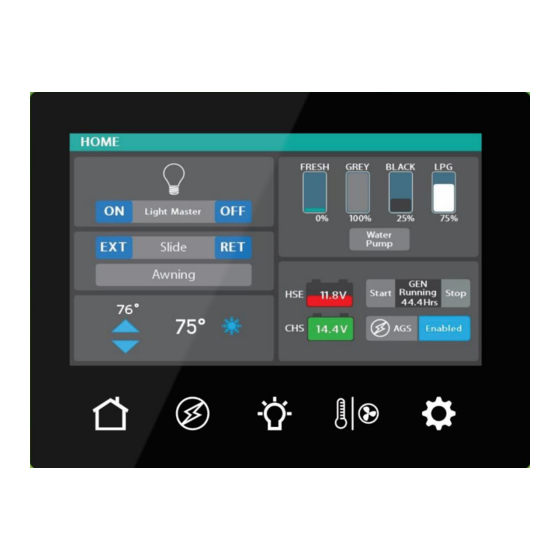

Home The Light Master controls all interior lights at once. When Light Master Off is pressed, it will remember which lights were on. Then, when Light Master On is pressed, it will only turn on the lights that are in memory. - Page 5 These graphics represent the holding tanks filled Propane % remaining. status. Water Pump – Tap to toggle On/Off. Button status – buttons will turn light blue when on and gray when off. Current temperature. Current Climate Control Mode. Use the Arrows to select your desired temperature.
- Page 6 House Voltage – the voltage Generator Start - hold Start to start coming from your house the generator (1 second delay). batteries. Voltage icons will Generator Stop – Hold Stop to stop turn red if below 12v. the generator. Chassis Voltage – the Tap to Enable/Disable AGS.
-
Page 7: Ags (Auto Gen Start)
AGS (Auto Gen Start) Tap to Enable/Disable AGS (as described on page 5). Trigger Options – Automatically start the generator using specified voltage settings (Low Volts) or when A/C or Heat Pump start (HVAC). Select one or both triggers. If no triggers are selected, AGS will not run. Disable HVAC Load while connected to shore power to keep the generator from starting. -
Page 8: Lights
Lights This screen will control the lighting for the entire coach, including the exterior. Tap any button to turn the desired light On/Off. Lights with up/down arrows are dimmable. Press and hold these buttons to ramp the brightness up or down. -
Page 9: Climate Control/Fans
Climate Control/Fans Lids – Tap Up or Down to Vent Fan Mode – Tap to toggle On/Off control lids. Vent Fan Speed Selectors Fan Mode – The fan will operate by choosing High or Low. Auto will turn the fan off. Cool –... -
Page 10: Settings
Tap to enter the Switch Panel Info screen. Please note the GUI and LC Versions (screen software) and have these numbers available should you ever need to contact Firefly Integrations for Technical Support. Tap to toggle between Fahrenheit and Celsius. -
Page 11: Settings/Switch Panel Info
“status unknown” appears, it is likely that you need to replace the coin cell battery behind the switch. Please see the Multiplex Hardware section of this manual for installation assistance. This button will remove the wireless connectivity between the touchscreen and your switch panels. This feature should not be used without first consulting Firefly Integrations. -
Page 12: Settings/Mobile App
Settings/Mobile App (Vegatouch Mira) Notice: Make sure that Bluetooth is turned ON in your smart device settings before proceeding. Locate the Login Information: The login information can be found by clicking on the settings page of the color touchscreen or from the Mira module’s label. - Page 13 Notice: iOS Setup Tips Turn on Bluetooth to allow Vegatouch Mira to connect to Accessories. If you do not have Bluetooth turned ON in your iOS settings you will see this screen. Do not click OK, you must click SETTINGS. Your Bluetooth Settings page will now appear and you should turn Bluetooth ON.
- Page 14 App Settings: Access the App Settings page by pressing the Gear icon on the App Navigation Bar. Tap to set your own personalized Bluetooth pin to eliminate the chance of another Mira owner accidentally controlling your module. Tap to disconnect your device from Mira. Tapping Reset Device will completely restart the Module and reconnect once it has powered back up.
-
Page 15: Multiplex Hardware
RV-C network. The G8 has a NET LED that is used to show network status. If the NET LED is displaying anything other than solid green and some of the panel’s functions are not working, please contact Firefly Integrations for technical support.
