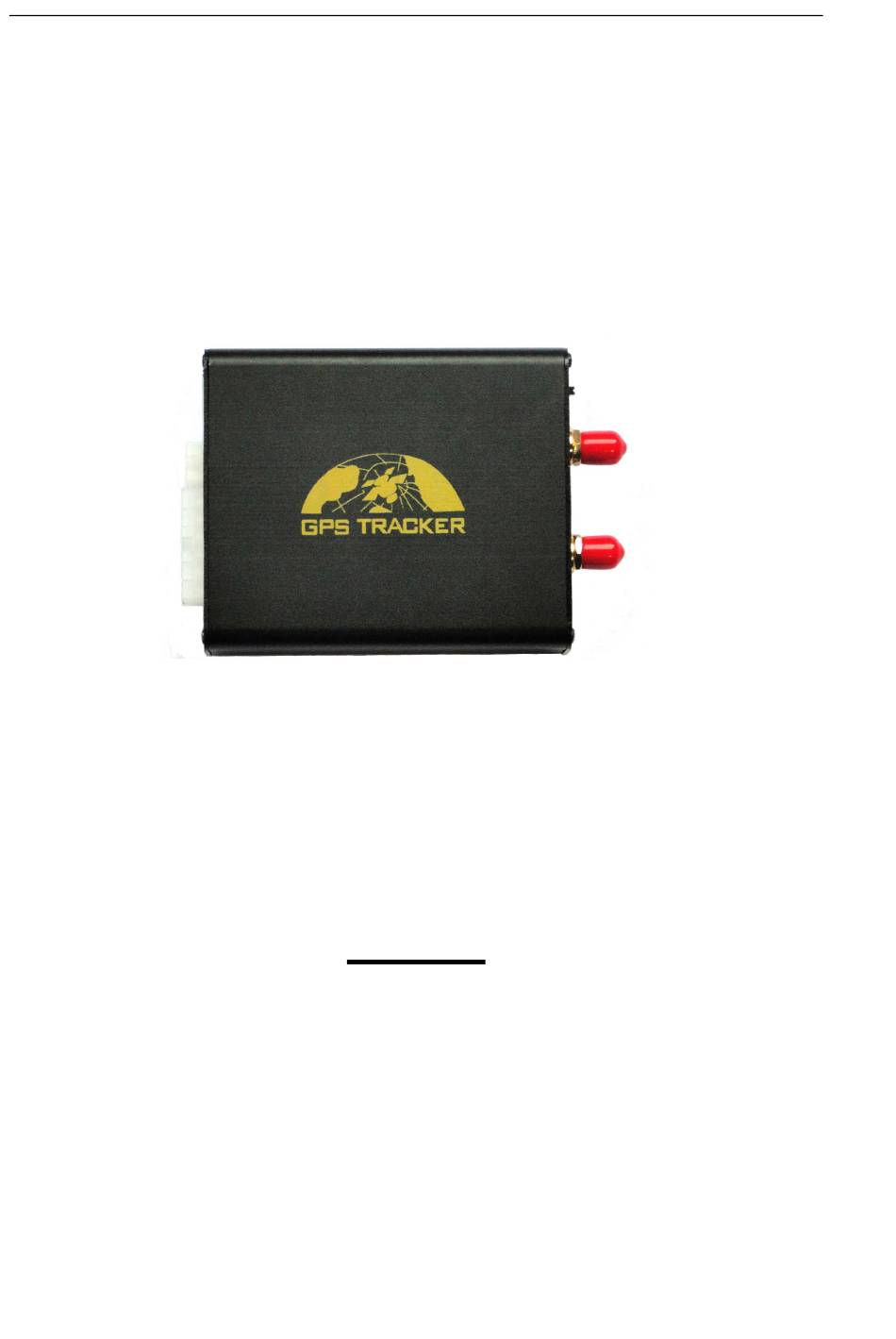

GSM/GPRS/GPS Vehicle Tracker
TK-106A/B User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device smoothly
and correctly. Make sure to read this manual carefully before using this product. Please note
that specification and information are subject to changes without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes no
responsibility for any errors or omissions in this document.
Advertisement
Table of Contents
Related Manuals for Firefly TK-106A
Summary of Contents for Firefly TK-106A
- Page 1 GSM/GPRS/GPS Vehicle Tracker TK-106A/B User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
-
Page 2: Table Of Contents
Contents 1. Function Introduction ..........................4 2. Applications ..............................4 3. Hardware Description ..........................4 4. Accessories ..............................5 5.Specifications............................... 6 6. Operating Instructions ..........................6 6.1 Terminal Installation ..........................6 6.2 SIM card installation..........................8 6.3 Turn on the tracker device ........................8 6.4 GSM/GPS LED Indicator ......................... - Page 3 6.23.4 Photograph ............................15 6.24. Silent Mode ............................16 6.25 Alarms in GSM Blind Area ........................16 6.26 Check the Vehicle State ........................16 6.27 Reset by SMS ............................17 6.28 Check IMEI ............................17 6.29 Terminal (local) Time Setting ....................... 17 6.30 GPRS Setting ............................
-
Page 4: Function Introduction
1. Function Introduction 1.1 This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms, photograph, fuel&temperature detection and tracking in its entirety. It can track and monitor remote target by SMS or internet. .2 Features 1.2.1 Support both GPS / GSM station positioning ways. -
Page 5: Accessories
⑵. J4 Monitor microphone jack. ⑻. GPS antenna connector ⑶. LED indicator ⑼. Remote Controller receiver antenna（model B） ⑷. SIM card slot ⑽. J1 14PIN harness port ⑸. SIM card slot Pop-up switch ⑾. J2 Camera port ⑹.SD card slot 4. -
Page 6: Specifications
Optional for Model A and B Camera Temperature Sensor Optional for Model A and B Optional for Model A and B and different type depends Fuel sensor on vehicles 5．Specifications Content Specifications 85*71*26mm Weight 170g Network GSM/GPRS Band 850/900/1800/1900Mhz GSM/GPRS Sim900B Module GPS Module... - Page 7 6.1.1 Please ask the qualified engineers to install. 6.1.2 Do not install it in an environment which is over GSM performance and please pay attention to fix the antennas in a position with good signals. 6.1.3 Pay attention to make installation location preventing water and dust. 6.1.4 Find the 14PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original car circuit showing below: Wiring diagram...
-
Page 8: Sim Card Installation
6.1.11Insert the temperature sensor plug into the sensor port (Temperature sensor is Optional) 6.1.12 Insert the external monitor Microphone into the monitor jack. 6.1.13 Connect the GPS and GSM antenna to the right connector, and find an appropriate place to fix the antennas to make sure good reception. 6.2 SIM card installation 6.2.1 Use a tweezers or a sharp thing to touch the SIM CARD popup switch, the SIM CARD slot will pop up, take out the SIM card slot to load the SIM card, and then put... -
Page 9: Authorization
6.6.2 Keep the new password in mind, or the machine will not work properly if lost the password. 6.6.3 Note: The new password must be 6 digits of the Arabic numerals, or the device will not recognize. 6.6.4 Please don’t type “+” character in all commands, space means press the space keyboard on cell phone. -
Page 10: Auto Track Continuously
6.9 Auto track continuously 6.9.1 Send SMS command “fix030s005n+password” to the tracker device, it will report the Geo-info at 30s intervals for 5 times. (s:second, m:minute, h:hour). This command must be in 3 digits and the maximum value is 255. 6.9.2 Unlimited times track: Send SMS "fix030s*** n+password"... -
Page 11: View Photos On Cell Phone
LBS mark. And there may be some inaccuracy with actual location by LBS tracking; the bias depends on GSM reception. Note: This feature can be used normally in most areas according to the signal of GSM network. It may not be available in some areas. 6.12 View photos on cell phone 6.12.1 You must set up the APN of your local GSM network for the SIM card in tracker first before using this function, if there is user name and password for GPRS login, Please... -
Page 12: Data Load
6.15.6 The stored data in SD card can be copied to computers through card reader, and then the data route can be checked by importing data in the menu “Data Import” of web platform www.gpstrackerxyz.com 6.16 Data Load 6.16.1 Current date Load: Send SMS: “load+ password” to tracker device, it will reply: “load ok”... -
Page 13: Movement Alarm
Cancel: Send SMS “nostockade+password” to deactivate this function. 6.17.5 Movement alarm Set up: when the tracker stays immobile in a place for 3-10 minutes, the user can send SMS “move+password” to the tracker device. It will reply “move ok!”. In case of such a movement (the default distance is 200 meters), it will send SMS “Move+latitude/longitude to the authorized numbers in 3 minutes interval. -
Page 14: Cut Off The Oil And Power System
number should be 3 digits and temperature unit must be in upper case in SMS command 6.18 Cut off the Oil and Power System Send SMS command “stop+password” to the tracker device, it will reply “Stop engine Succeed” to your cell phone from the tracker device, and stop your car engine. At the same time, it will remain the immobile state until receiving the next SMS command of resuming the oil and power once receiving SMS command to cut off the oil and power system 6.19 Resume the Oil and Power System... -
Page 15: Function Of Remote Controller (Option For Model B)
It won’t alarm if the door is open and sensor is vibrated and the engine is started when deactivated this arm function. 6.21.2 Disarm by Remote Controller (Option for Model B) Press “B” button on the Remote Controller, the car enters into disarm state, and the siren will beep two times, no SMS reply. -
Page 16: Silent Mode
tracker device will be automatically ready for photo during sending the alarm and then shoot camera to upload the photo to the monitoring platform (web server).Meanwhile, the device will send link SMS to all authorized cell phone numbers, then photos can be viewed on cell phone .All photos will be automatically saved in the SD card, and viewed after copied to computers through card reader, 6.24. -
Page 17: Reset By Sms
ACC: OFF/NO Door: OFF/NO GSM Signal: (1-32) the higher digit it shows; the stronger of GSM reception it receives. Oil：100.00% Temperature: +28.0 6.27 Reset by SMS Send SMS “reset+password” to tracker device to reset the GSM module and GPS module of the tracker device, it will reply “reset ok”. 6.28 Check IMEI Send SMS command "imei+password"... -
Page 18: Ip And Port Setup
requiring user name and password, please configure as following: 6.32.2 Send SMS “up+password+space+user+space+password”If succeeded, “user, password ok!” is returned by the tracker in SMS. 6.32.3 For example, send SMS “up123456 jonnes 666666” to the tracker, and if succeeded, the tracker returns “user, password OK” Note: 123456 is tracker device password, jonnes is the user name for GPRS login, 666666 is the password for GPRS login. -
Page 19: Faults & The Solutions
6. Don’t paint the unit, this may cause some foreign materials left in between the parts. 7. Don’t disassemble or refit the unit. 8. Please read the user manual carefully before installation and operation, learn something more about the voltage range. Otherwise, it won’t work properly or destroy the product. 8.
