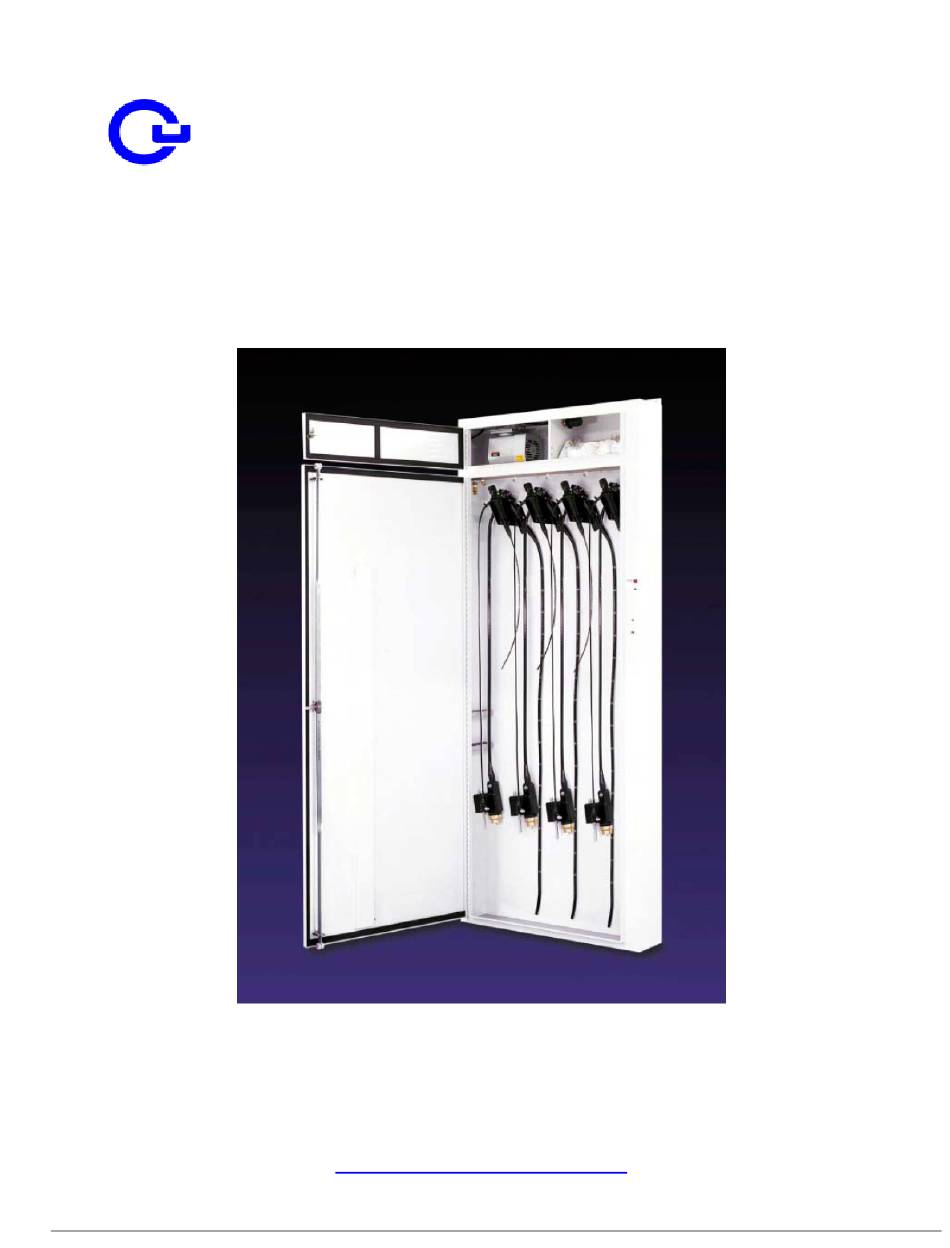

- Page 1 Custom Ultrasonics, Inc. Endoscope Storage Cabinet Model 20000 Operator’s Manual Custom Ultrasonics, Inc. 144 Railroad Drive Ivyland, PA 18974 215-364-1477 www.customultrasonics.com MAN 009 Revision 08232021 P/N 20015...
-
Page 2: Table Of Contents
Endoscope Storage Cabinet Model 20000 CUSTOM ULTRASONICS, INC. Operator’s Manual Contents WARNING / CAUTIONs ..........................3 Labels and Label Indications ........................3 Technical Specifications ..........................4 Environmental Operating Conditions ......................4 Physical Description ............................4 Installation Requirements ..........................6 Installation ..............................6 ... -
Page 3: Warning / Cautions
Endoscope Storage Cabinet Model 20000 CUSTOM ULTRASONICS, INC. Operator’s Manual WARNING / CAUTIONs A WARNING is a statement that alerts the user to the possibility of injury, death, or other serious adverse reactions associated with the use or misuse of the Storage Cabinet. -
Page 4: Technical Specifications
Mains supply voltage fluctuations up to ±10% of the nominal voltage. Physical Description The Endoscope Storage Cabinet, Model 20000, is fabricated of powder coated steel to provide an environment for endoscope storage that is free of water-absorbent materials. ... - Page 5 Note: For proper operation of this Storage Cabinet, read and understand all instructions before using the device. If the Storage Cabinet is used in a manner not specified by Custom Ultrasonics, the protection provided by the device may be impaired.
-
Page 6: Installation Requirements
Endoscope Storage Cabinet Model 20000 CUSTOM ULTRASONICS, INC. Operator’s Manual Installation Requirements WARNING: For installation of the Storage Cabinet, make certain to have a minimum of two (2) persons to support and mount the device, otherwise, bodily injury and physical damage to the Storage Cabinet and surrounding area may occur. - Page 7 Endoscope Storage Cabinet Model 20000 CUSTOM ULTRASONICS, INC. Operator’s Manual 1. The Storage Cabinet is shipped in a shipping crate. Remove the retaining screws from the lid of the crate. Remove packaging materials and then the device. WARNING: For installation of the Storage Cabinet, make certain to have a minimum of two (2) persons to support and mount the device, otherwise, bodily injury and physical damage to the Storage Cabinet and surrounding area may occur.
-
Page 8: Intended Use
(6) bags of desiccant from their holding compartment. Discard the desiccant bags using the proper facility handling protocols. Replace the desiccant bags and humidity indicator cards or contact Custom Ultrasonics for further information to order new bags and humidity indicator cards. - Page 9 The manufacturer and model type of the endoscope determines the type of adapters that are necessary to use. b. The majority of the adapters are provided by Custom Ultrasonics, but at times, model dependent, require OEM parts in conjunction with adapters from Custom Ultrasonics. For the Endoscope Storage Cabinet, Model 20000, manifold attachments, contact Custom Ultrasonics Customer Training department for assistance.
-
Page 10: Daily Observations
Endoscope Storage Cabinet Model 20000 CUSTOM ULTRASONICS, INC. Operator’s Manual 9. Close the Storage Cabinet door. The Storage Cabinet is equipped with a lock. Routinely locking the Storage Cabinet may reduce the incidence of unintended endoscope exposure or theft. 10. The Storage Cabinet’s Adjustable Programmable Timer Dial is located outside of the Storage Cabinet on the right front wall. -
Page 11: Maintenance
Activate the momentary switch daily to confirm proper operation of the air pump. If the air pump does not activate, contact Custom Ultrasonics. If air is heard being released through the relief valve when the endoscopes are connected to the purge manifold, contact Custom Ultrasonics.
