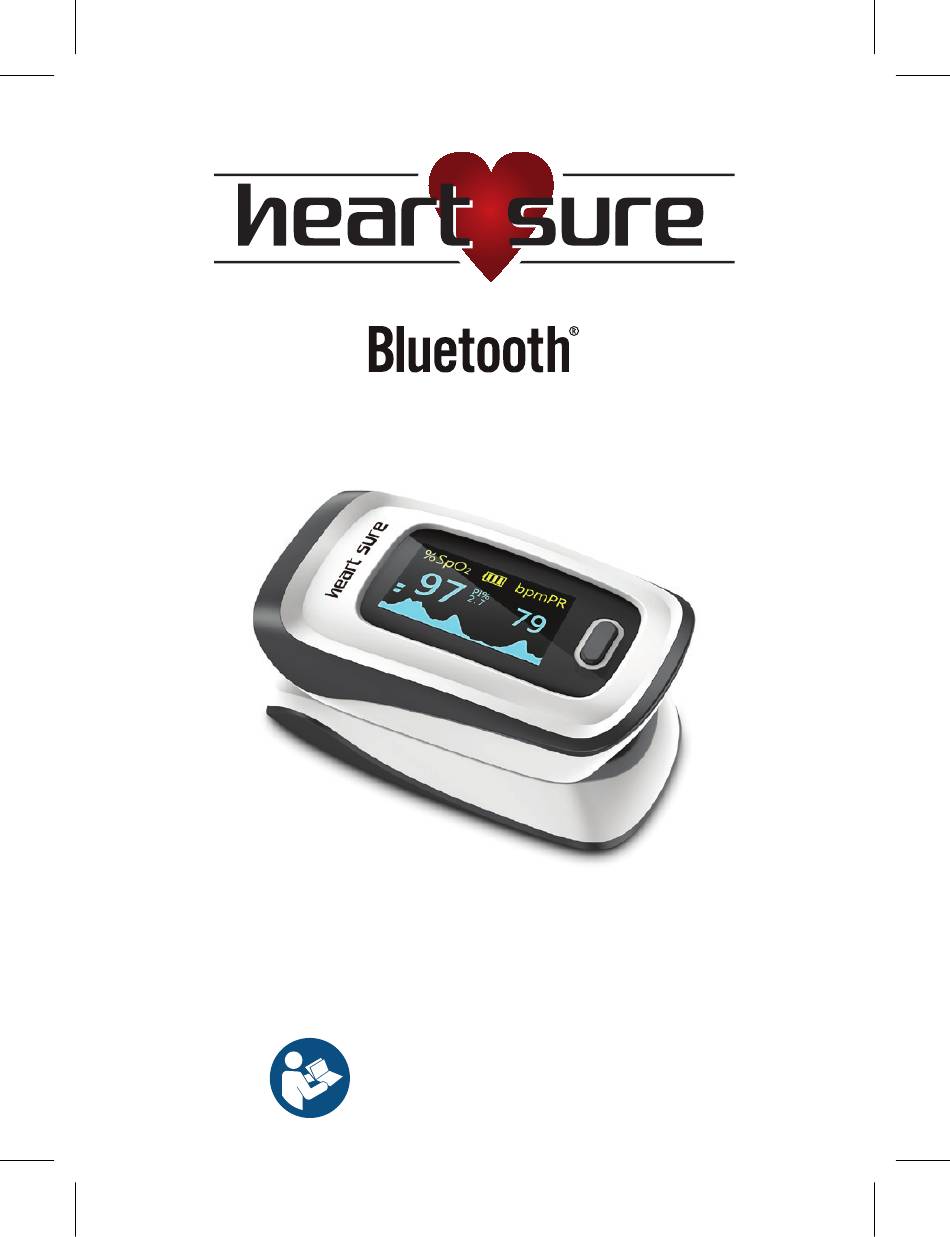

- Page 1 Pulse Oximeter MODEL A380 Instruction Manual & Warranty Information Read Instructions Carefully Before Use...
- Page 2 Thank you for purchasing this Heart Sure Bluetooth® Pulse Oximeter. Model: A380 Please keep this instruction manual in a safe place where it is readily available. Note: The illustrations in this manual may differ slightly from the product itself. BEFORE YOU START Note: Connect to a smartphone for complete functionality.
-
Page 3: Table Of Contents
Contents Important Safety Information ....4 Features ....... . 7 Package Contents . -
Page 4: Important Safety Information
Intended purpose The Heart Sure Bluetooth Pulse Oximeter is intended to be used for non-invasive spot- check measurements of functional oxygen saturation of arterial haemoglobin (SpO using a Bluetooth® connected App. The advanced DSP algorithm can minimise the influence of motion and improve measurement accuracy of low perfusion. - Page 5 Important Safety Information - continued Safety Warnings If you feel any discomfort such as a pain during the measurement, stop using the product immediately. DO NOT use the Pulse Oximeter for prolonged periods of time. It is designed for spot-check use only. DO NOT use on children less than 1 year old as the results may not be accurate.
- Page 6 • DO NOT use in a flammable atmosphere where concentrations of flammable products exist. • DO NOT immerse any part of the instrument into any liquid. Heart Sure Bluetooth Pulse Oximeter...
-
Page 7: Features
Features • Bluetooth® connectivity (via App) • Colour OLED display • Large font display • 6 display modes • Perfusion index display • Multi-directional display • Portable and convenient • Battery DC3V (2x AAA battery) Package Contents 1 x Pulse Oximeter 1 x Carry Bag 1 x Lanyard 1 x User Manual and Warranty Information... -
Page 8: Before Using The Pulse Oximeter
• Check the product is intact. DO NOT use if broken. If any abnormalities are detected, please contact our service centre: In Australia - 1800 807 464 In New Zealand - 0800 523 583 Components Heart Sure Bluetooth Pulse Oximeter... -
Page 9: Oled Display
OLED Display The following figure shows the information display on the OLED screen of the Pulse Oximeter in normal detection state: Battery power indication Symbol of oxygen saturation Symbol of pulse rate bpmPR %SpO Measured value of Perfusion Index 10.1 oxygen saturation Measured value of pulse rate Bar graph... -
Page 10: Installation And Setup
4. Place cover back on the unit. Battery Replacement The battery indicator symbol ( ) will flicker on the OLED display when the battery is low. Replace with 2 new AAA batteries. Repeat steps 1-4 above. Heart Sure Bluetooth Pulse Oximeter... - Page 11 Installation and Setup - continued Connecting the Device Download and Install JUMPER Health App. Scan the following QR code to download and install. iPhone users may search JUMPER Health in the App Store to download. Android phone users may search JUMPER Health in Google Play to download. Note: This APP requires phones with system versions of iOS8 or above or Android 4.4 or above to download and install.
- Page 12 Enter the email account and password and click “Login”. Note: If the password is forgotten, you can retrieve the password via email. Upon completion of the first login, you can directly login again without entering the account and password. Heart Sure Bluetooth Pulse Oximeter...
- Page 13 Installation and Setup - continued APP Homepage Once successfully logged in, you will enter the APP homepage, which displays the weight, BMI, FHR and Oximeter data. Users of different genders will have different homepages. To switch, edit, add, or delete the home users, click the icon in the upper left corner.
- Page 14 (a) If Bluetooth function of mobile phone is not chosen, a pop-up will appear as a reminder to choose the Bluetooth function of mobile phone. Click “My Oximeter” to connect. You can click “How to use “ to check the instructions: • About Product • How to use • FAQ Heart Sure Bluetooth Pulse Oximeter...
- Page 15 Installation and Setup - continued Oximeter Recording When the Oximeter data is stable, click “Start” to record the Oximeter. Upon completion of measurement, click the button “Save” to save the measurement record. You can view the corresponding report in the record. If changing to another device, click the icon in the upper right corner to choose the different device.
- Page 16 “View Report” to changes. Click the icon Oximeter recorded data. view the record report. on the upper right corner, and you can share the record on a social platform such as Facebook, Twitter etc. Heart Sure Bluetooth Pulse Oximeter...
- Page 17 Installation and Setup - continued Setting 1. To view the user’s profile, health standard, system setting, APP version and logout in the setting. 2. Click “My Profile”, and you can set the portrait and country, or revise the name, birthday and height; except registered email-box and gender. Click “system settings”...
-
Page 18: Using The Pulse Oximeter
The data may take a few minutes to appear while a reading is obtained. Fingernail facing upwards Note: Consult with your doctor for the interpretation of results. Self-diagnosis may lead to the worsening of medical conditions. Heart Sure Bluetooth Pulse Oximeter... -
Page 19: Parameter Settings
Parameter Settings In the Parameter Setting Menu you can set high/low notification values for both Blood Oxygen Levels (SpO ) and Pulse Rate (PR) as well and turning the sound ON/OFF and setting the Brightness range. There are 2 types of submenus : Menu 1: Alert Setup Menu 2: Notify Setup V2.12... - Page 20 • When Beep is set to on, a tick will be heard along with pulse beats during pulse rate measurement. • When Beep is set to off, no sound will be output along with pulse beats during pulse rate measurement. Heart Sure Bluetooth Pulse Oximeter...
- Page 21 Parameter Settings - continued Restore Setting • Short Press ON Button/Function Button to Scroll “*” through to Restore option. • Press and hold ON Button/Function Button for approx. 2 seconds to restore the device back to its original factory settings. Brightness Setting •...
- Page 22 • Short Press ON Button/Function Button to scroll “*” through to SpO2 Alert Lo option. Short Press ON Button/Function Button to scroll “*” through to Exit option Press and hold ON Button/Function Button for approx. 2 seconds to Exit. Heart Sure Bluetooth Pulse Oximeter...
-
Page 23: Cleaning And Maintenance
Cleaning and Maintenance • Switch the Pulse Oximeter off and remove the batteries before cleaning. • Keep the surface of the device clean and free of dust and dirt. • Clean the outer surface of the unit (including the OLED screen) with a soft dry cloth. -
Page 24: Troubleshooting
If the problem is not solved by the troubleshooting guide or you have any queries, please contact In Australia - 1800 807 464 In New Zealand - 0800 523 583 our service centre: DO NOT attempt to open or repair the product yourself. Heart Sure Bluetooth Pulse Oximeter... -
Page 25: Specifications
Specifications Product Name Heart Sure Bluetooth Pulse Oximeter Model Code A380 Colour White & Grey IP Rating IP22 Peak wavelength range of the light emitted from Red light 660 nm ± 3; infrared light 905 nm ± 5 the probe Bluetooth®... - Page 26 Build 500DEF-V1.0.0 Version Number V2.12 Contents Heart Sure Pulse Oximeter, 1x Carry Bag, 1 x Lanyard, 1 x User Package Contents Manual and Warranty Information, 2 x AAA Batteries 0482 Disposal At the end of its life, please treat this product as electronic waste and dispose of responsibly according to current local regulations.
-
Page 27: Product Warranty
AUS – www.jadavey.com.au NZ – www.jadavey.co.nz This Heart Sure Pulse Oximeter product is warranted to be free of manufacturing defects for 1 year from the date of purchase*. This warranty is void if the product is modified or altered, is subject to misuse or abuse, damaged in transit or lack of... - Page 28 3. Please return the product and warranty form at your cost to: IN AUSTRALIA: J A DAVEY PTY LTD IN NEW ZEALAND: BV Medical Heart Sure Repairs Heart Sure Repairs PO Box 84 Unit 7, 110 Mays Road Port Melbourne Onehunga Victoria 3207 Auckland 1061 Heart Sure Bluetooth Pulse Oximeter...
-
Page 29: Warranty Form
Warranty Form PLEASE RETAIN WARRANTY INFORMATION. RETURN THIS PORTION ONLY WHEN YOU RETURN YOUR PRODUCT FOR REPAIR UNDER WARRANTY. NAME: ADDRESS: POSTCODE: DAYTIME PHONE: EMAIL: MODEL: DATE OF PURCHASE: PLEASE ATTACH PROOF OF PURCHASE RETAILER’S NAME: RETAILER’S ADDRESS: POSTCODE: BRIEF DESCRIPTION OF PROBLEM YOU ARE EXPERIENCING: WARRANTY IS VOID UNLESS THE ABOVE INFORMATION IS COMPLETED AND CORRECT. - Page 30 Heart Sure Bluetooth Pulse Oximeter...
- Page 31 MADE IN CHINA V04/22 Important information regarding Electro Magnetic Compatibility (EMC) Heart sure Bluetooth Pulse Oximeter manufactured by SHENZHEN JUMPER MEDICAL EQUIPMENT CO., LTD conforms to EN60601- 1-2:2015 Electro Magnetic Compatibility (EMC) standard. Further documentation in accordance with this EMC standard is available at www.jadavey.com.au...
- Page 32 Pulse Oximeter MODEL A380...
