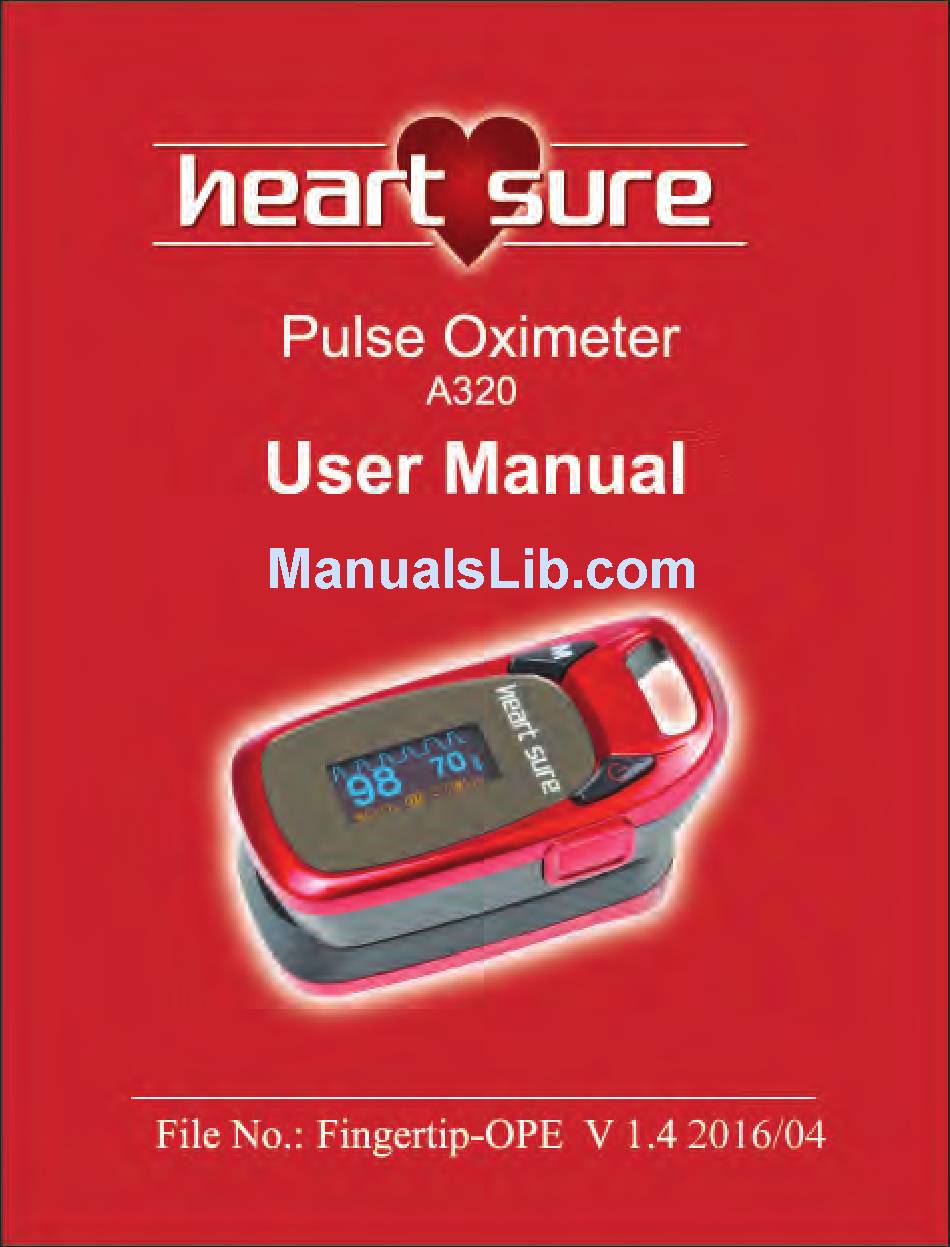

Summary of Contents for Heart Sure A320
- Page 2 Section 1 Safety 1.1 Instructions for the Safe Operation and Use of the Pulse Oximeter Do not attempt to service the Pulse Oximeter yourself. Only qualified service personnel should attempt any necessary internal servicing. Prolonged use or depending on the patient's condition may require changing the sensor site periodically.
- Page 3 WARNING: Do not modify this equipment without authorisation of the manufacturer. WARNING: If this equipment is modified, appropriate inspection and testing must be conducted to ensure continued safe use of equipment. CAUTION: Keep the operating environment free of dust, vibrations, corrosive, or flammable materials, and extremes of temperature and humidity.
- Page 4 1.3 Definitions and Symbols Symbol Description Type BF Equipment Batch code Date of manufacture Serial No. Information of manufacture, including name and address Temperature limitation When the end-user wishes to discard this product, it must be sent to separate collection facilities for recovery and recycling Follow instruction for use IPX4...

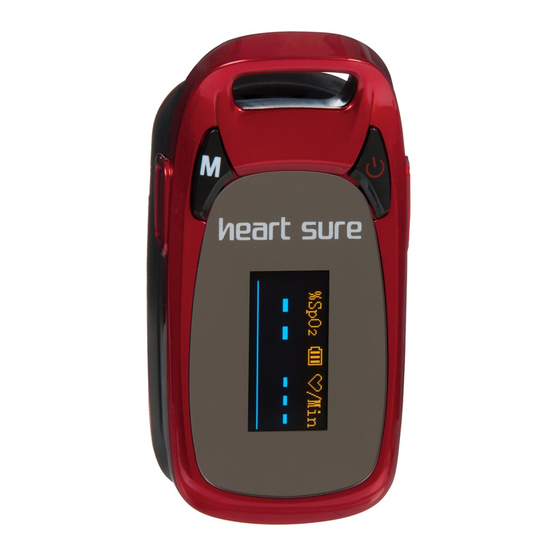

- Page 5 2.2 Brief Device Description The Pulse Oximeter is intended for non-invasive spot-check measurements of functional oxygen saturation of arterial haemoglobin (SpO2). The advanced DSP algorithm can minimize the influence of motion and improve measurement accuracy of low perfusion The Pulse Oximeter can be used to measure human oxygen saturation and pulse rate through the finger.
- Page 6 CAUTION: The fingertip Pulse Oximeter is intended only as an adjunct in patient assessment. It must be used in conjunction with other methods of assessing clinical signs and symptoms. 2.3.1 ^ Defintions DSP algorithm: Digital signal processor algorithm. Low perfusion: In physiology, perfusion is the process of a body delivering blood to a capillary bed in its biological tissue.
- Page 7 3.2 Display After being switched on, the OLED display is as follows: 3.2.1 Display Modes The OLED display can rotate four directions with six different display modes when pressing the direction button (M) as shown below: 3.3 Operation 3.3.1 Install battery Remove cover &...
- Page 8 (it is best to put the finger as far in as possible) with nail surface upward, then release the clamp to shut. 3.3.3. Read data on the display screen The data may take a few seconds to appear while a reading is obtained. Only your Healthcare Professional can interpret your individual readings.
- Page 9 To decrease parameter values Press (M) quickly to move down the menu until your * signal appears next to the + / - sign. Then hold down (M) for one second until the - sign appears. This will now decrease the value of any parameter in this menu. Quickly press (M) to move to the parameter value you wish to change.
-
Page 10: Cleaning And Disinfection
3.4.4 Turn the Pulse Oximeter Off Press & hold the power button for 2 seconds. Alternatively the device will automatically shut off after approximately 10-15 seconds. Note: 1. When the battery power is at lowest level, the battery indicator symbol " "... - Page 11 Section 5 Troubleshooting and Maintenance 5.1 Maintenance Replace the batteries when the battery indicator symbol is low. Clean/disinfect surface of thе Pulse Oximeter before use. Remove the batteries inside the battery cassette if the Pulse Oximeter will not be operated for more than 12 months. Store the product in a place where ambient temperature is -10 to 50℃...
-
Page 12: Specifications
Problems Possible Reason Resolutions 1. Finger is not placed 1. Retry by placing the finger correctly. in the correct position as Oxygen saturation or per instructions. pulse rate is abnormal and caused alarm to 2. Patient's SpO & PR 2. Please consult healthcare sound. - Page 13 Retail package Dimensions:90mm (W) × 120mm (D) × 67mm (H) Gross Weight: 175g Classifications:： Anti-electric Shock Type: Internally powered equipment Anti-electric Shock Degree: Type BF equipment EMC: Type B class IMode of operation: Continuous Operation Enclosure Degree of ingress protection: IPX4 IPX4 means shell of this product can withstand the water from any direction dropping to the surface.
- Page 14 Alarm default value Parameter Value Oxygen Saturation Upper limit: 100 / Lower limit: 90 Pulse Rate Upper limit: 130 / Lower limit: 50 Probe LED Specification Wave Length Radiant Power 660±2 nm 1.8 mW Infra RED 905±2 nm 2.0 mW Electronics Parameters Parameter Value...
- Page 17 user in regards to Customer Service Should repair be needed within the warranty period, enclose the tear o section of this warranty card and your proof of purchase receipt. Please ensure all relevant details are completed before sending your unit in for service. Please ensure your contact details are current and include a brief description of the problem you are experiencing together with your proof of...
- Page 18 J.A.Davey Pty Ltd- Heart Sure Repairs...
