Summary of Contents for Blaupunkt GTx 1 Series

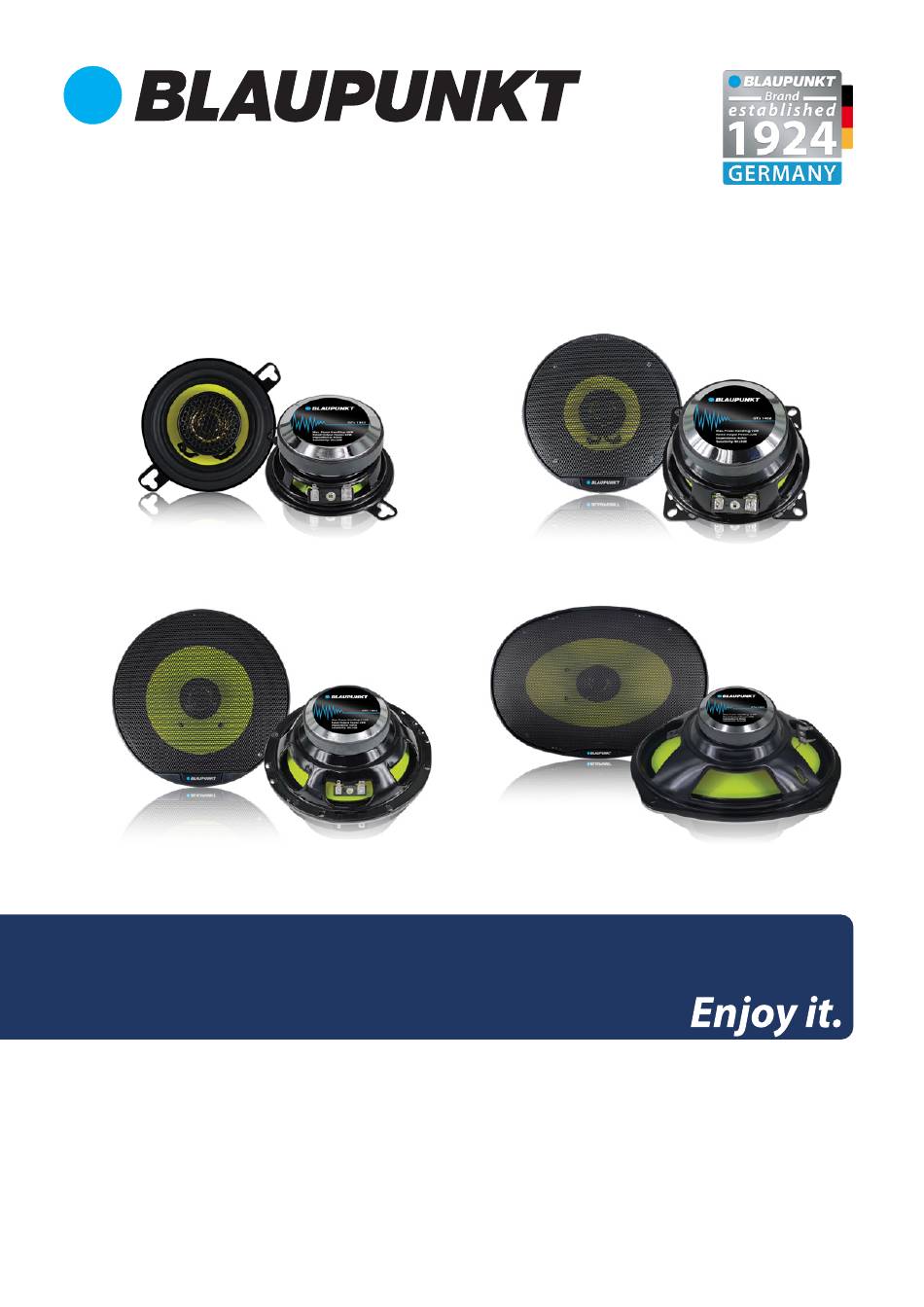

- Page 1 2-WAY COAXIAL SPEAKERS GTx 1xxx SERIES GTx 1352 GTx 1402 GTx 1662 GTx 1692 Operating and Installation Instructions...
- Page 2 Disclaimer system. Consult an authorized Blaupunkt delaler for installation or reparation. Read the manual In no event shall Blaupunkt be liable for any carefullt before operating the device for the direct, indirect, punitive, incidental, special first time.
-
Page 3: Specification
SPECIFICATION GTx 1352 Pair of 3.5” 2-way coaxial speaker with Polypropylene Cone Composition including mounting hardware • Max. Power Handling : 60W • Normal Output Power (RMS) : 20W • Impedance : 4ohms • Frequency Response : 120Hz - 20,000Hz •... - Page 4 SPECIFICATION GTx 1402 Pair of 4.0” 2-way coaxial speaker with Polypropylene Cone Composition including mounting hardware • Max. Power Handling : 70W • Normal Output Power (RMS) : 22W • Impedance : 4ohms • Frequency Response : 100Hz - 20,000Hz •...
- Page 5 SPECIFICATION GTx 1662 Pair of 6.5” 2-way coaxial speaker with Polypropylene Cone Composition including mounting hardware • Max. Power Handling : 110W • Normal Output Power (RMS) : 33W • Impedance : 4ohms • Frequency Response : 70Hz - 20,000Hz •...
- Page 6 SPECIFICATION GTx 1692 Pair of 6.0” x 9.0” 2-way coaxial speaker with Polypropylene Cone Composition including mounting hardware • Max. Power Handling : 115W • Normal Output Power (RMS) : 35W • Impedance : 4ohms • Frequency Response : 60Hz - 20,000Hz •...
-
Page 7: Installation
GTx 1402 GTx 1662 GTx 1692 SPECIFICATION If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist. Problems Possible Causes Solutions Speaker does not Incorrect or loose wiring... - Page 8 GTx 1352 4 111 21 042 58 01 GTx 1402 4 111 21 040 58 01 GTx 1662 4 111 21 039 58 01 GTx 1692 Designed and engineered by Blaupunkt Competence Centre 4 111 21 041 58 01...
