Shower Set
Art.no 40-7348
Model ST-RS06021-GAP10
Please read the entire instruction manual before using the product and save it for future reference.
We reserve the right for any errors in text or images and any necessary changes made to technical data.
If you have any questions regarding technical problems please contact our Customer Services.

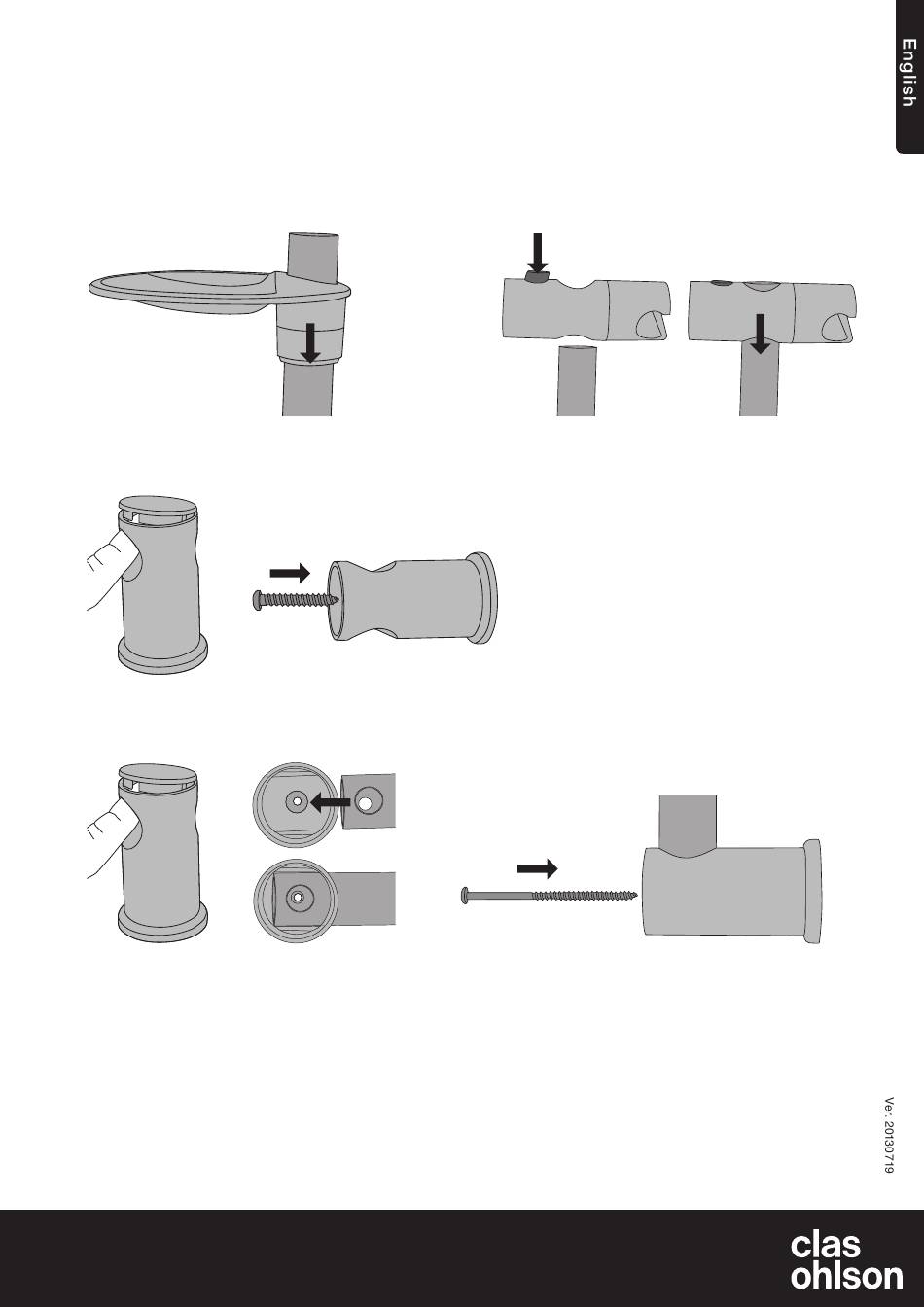

Assembly
1. Slide the soap dish onto the tube from the top. Make sure that the end
with the two holes in the sides is at the bottom end of the tube.
3. Remove the cover on the top bracket (the one that has a hole for the tube).
Mount the top bracket to the wall using the short screw.
4. Remove the cover on the bottom bracket and fit the tube into the bracket. Make sure that the smaller hole is pointing inwards.
Mount the bracket to the wall using the long screw.
5. Fit the covers back onto the brackets.
6. Fit the end cap onto the top of the tube.
7. Attach the shower head to the hose using a rubber washer.
8. Attach the hose to the mixer using a rubber washer.
Disposal
This product should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local authority.
GREAT BRITAIN
customer service tel: 08545 300 9799 e-mail: customerservice@clasohlson.co.uk
internet: www.clasohlson.com/uk
2. Thread the shower head bracket onto the tube.
