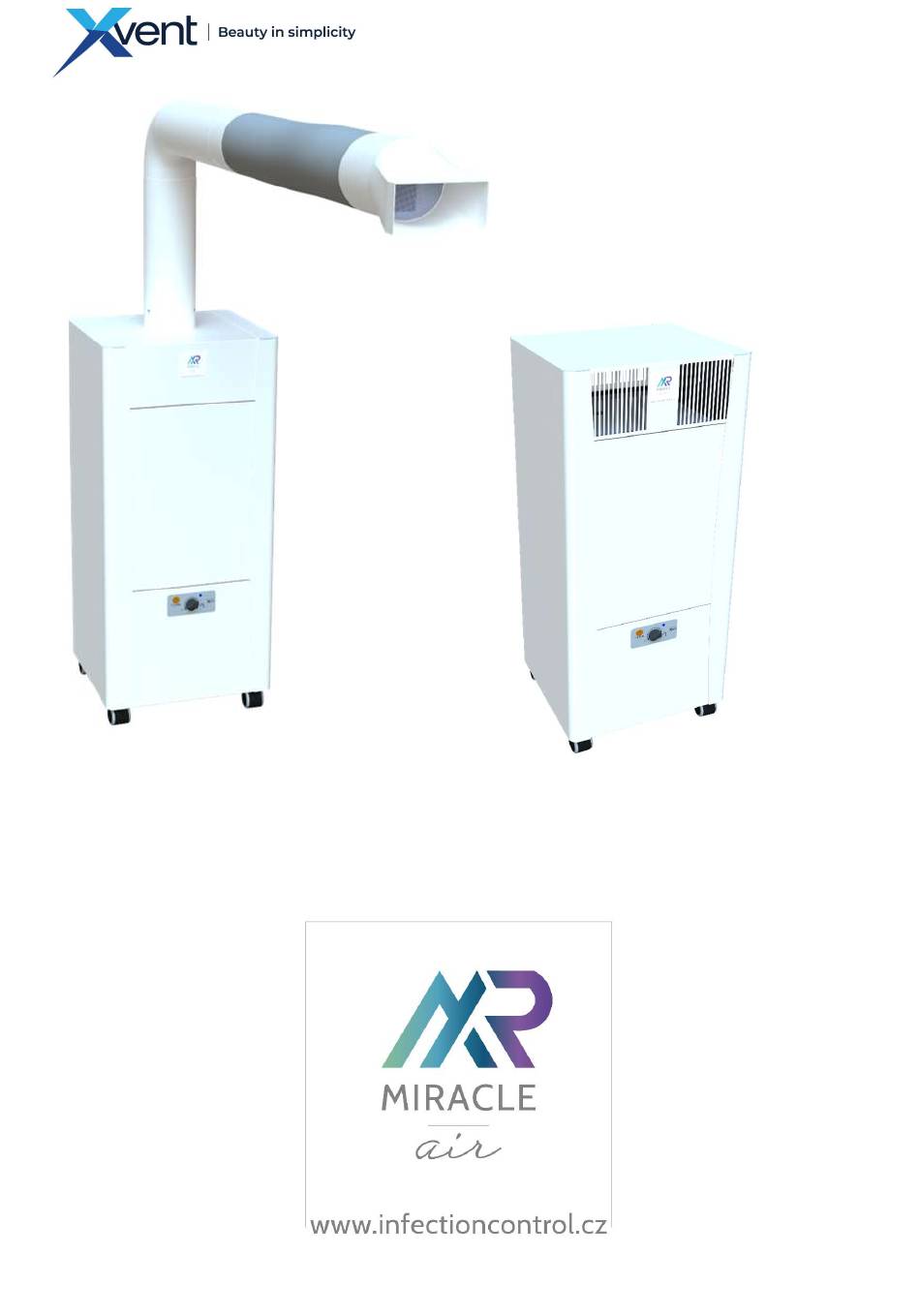

INSTRUCTIONS FOR USE AND INSTALLATION OF MIRACLEAIR
EXTRACTION AND FILTRATION UNITS
1
Version 1 – GBR (05/05/2020)
D-502-0173

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiracleAir 300-A1 and is the answer not in the manual?

Questions and answers

Related Manuals for Xvent MiracleAir 300-A1

Summary of Contents for Xvent MiracleAir 300-A1

  • Page 1 INSTRUCTIONS FOR USE AND INSTALLATION OF MIRACLEAIR EXTRACTION AND FILTRATION UNITS Version 1 – GBR (05/05/2020) D-502-0173...

  • Page 2: Table Of Contents

    Unpacking ................................10 3.1.2.1. Unpacking the MiracleAir Unit - box 1 ....................... 10 3.1.2.2. Unpacking the suction arm - box 2 (only in the case of the MiracleAir 300-A1 aerosol extractor) ......10 3.1.3. Positioning of the unit ............................11 3.1.4.
  • Page 3 3.1.4.1. MiracleAir 300-A aerosol extraction unit ......................11 3.1.4.2. Air purifier - MiracleAir 400-B unit ........................11 3.2. Installation of the MiracleAir unit ........................... 11 3.2.1. Installation of the MiracleAir 300-A aerosol extraction unit .................. 11 3.2.1.1. Assembling the exhaust arm ..........................11 3.2.2.

  • Page 4: General Information

    1. General information 1.1. Introduction This document "Installation and Instructions for Use" (IFU) is intended for MiracleAir 300-A extraction unit and MiracleAir 400-B filter unit (hereinafter referred to as the unit) intended to extract and filter indoor air in required spaces. The extraction and filtration unit is used to remove particles directly at the place of their origin to protect the health of workers.

  • Page 5: Prohibited Use Of The Unit - Miracleair Unit Must Not Be Used

    1.3.2. Prohibited use of the unit – MiracleAir unit must not be used: for extracting burning or glowing substances! to extract highly flammable or explosive gases. for extracting aggressive media for extracting liquids of any kind. in an environment with an increased risk of explosion, flammable substances and increased dust load. Neither the manufacturer nor the supplier is liable for damages caused by improper use of the units.

  • Page 6: Technical Parameters

    2. Technical parameters 2.1. MiracleAir unit design 2.1.1. Aerosol extraction unit with a special arm MiracleAir 300-A1 6. FAN BOX WITH CONTROL PANEL 1. ARM 1 (fixed) 7. MAIN SWITCH 2. ARM 2 (with flexible end) 8. POWER CABLE WITH PLUG 3.

  • Page 7: Arm (Positions 1 And 2)

    2.1.1.1. Arm (positions 1 and 2) Swivel arm with flexible end terminated by a suction nozzle. Arm material – PVC and ABS plastic. The arm is fully cleanable. 2.1.1.2. Extraction box (position 3) 1-mm thick sheet steel construction treated with RAL 9003 anti-corrosion powder paint and protective varnish to increase resistance to disinfection products 2.1.1.3.

  • Page 8: Filtration Box

    Power cable with plug (position 8.) flex cord type cable (with integrated plug) 3x1mm , material PVC 2.2. Main dimensions of Miracleair aerosol extraction unit and the air purifier 2.2.1. MiracleAir 300-A1 aerosol extraction unit Fig. 3 Version 1 – GBR (05/05/2020) D-502-0173...

  • Page 9: Air Purifier - Miracleair 400-B Unit

    Air purifier - MiracleAir 400-B unit Fig. 4 2.3. Technical parameters of MiracleAir 300-A1 units; MiracleAir 400-B EC Declaration of Conformity - current and full version of the EC Declaration of Conformity is available on our website www.xvent.cz in the MiracleAir product documents 3.

  • Page 10: Unpacking

    REMOVE THE UNIT FROM THE LOWER BOX Fig. 5 Unpacking the suction arm - box 2 3.1.2.2. (only in the case of the MiracleAir 300-A1 aerosol extractor) Remove the suction arm from the top box as follows: UNPACK THE COMPONENTS OF THE ARM OPEN THE BOX Fig.

  • Page 11: Positioning Of The Unit

    3.1.3. Positioning of the unit - Place the device on a clean, level, cohesive and dust-free floor. - Observe the ambient conditions specified in the chapter 1.3.1 – intended use of the unit - Consider the location for the exhaust air from the bottom of the unit to avoid discomfort during the operation.

  • Page 12: Installation Of A Protective Sleeve

    fasten the arms using self-tapping screws 4, 2x9 (included in the arm package) into the pre-made hole on each side of the tubed. use appropriate force when tightening the screws to prevent damage to the arm tube Fig. 8 fastening must be done thoroughly to prevent the arm from accidentally disconnecting and resulting damage to the arm and additional possible damage to property or injuries.

  • Page 13: Installation Of Air Purifier - Miracleair 400-B Units

    3.2.3. Installation of air purifier - MiracleAir 400-B units No further installation is required after unpacking and positioning Miracleair filter unit. 3.3. Electrical installation - connection to the electrical network 3.3.1. General information - safety Before starting the installation, make sure that the mains socket you intend to use to connect the unit is equipped with a protective contact (pin).

  • Page 14: Regulation - Unit Control

    4. Regulation - unit control 4.1. General information - safety Regulation is integrated into the body of the unit. Any manipulation other than specified in this manual is prohibited. All control elements located on the body of the unit, which are designed for user control, are powered by 10VDC (safe voltage).

  • Page 15: Wiring Diagram Of Miracleair Units

    5. Wiring diagram of MiracleAir units internal wiring diagram of the unit Fig. 14 Version 1 – GBR (05/05/2020) D-502-0173...

  • Page 16: Commissioning

    6. Commissioning 6.1. Before the first operation, check the following: All fixation elements used during transport have been removed The mains cable of the unit is properly connected to the mains 6.2. Switching on Turn the main power switch at the back of the unit from the position 0 to the position I Turn the main control element (knob) to approximately central position of the output scale (vertical) A blue signal diode on main control panel will light up, signalling the unit is running The unit will start increasing output to the set value.

  • Page 17: Setting The Output For The Air Purifier - Miracleair 400-B Unit

    6.3.2. Setting the output for the air purifier - MiracleAir 400-B unit Use the main control (know) to adjust the filtration performance in the entire range of the scale. To select the desired performance for your filter unit, always consider the space it will operate in. Select the appropriate unit output based on area of the space to be filtered.

  • Page 18: Filter Box Replacement

    If the unit does not require the replacement of filters more often than once a year, the unit must be inspected regularly, at a maximum interval of once every 12 months or at intervals determined by the relevant national regulations or practices. If the unit is not used for longer time, it is necessary to turn off the supply voltage to the unit.
  • Page 19 Clogging of the filter box and subsequent activation of the indicator depends on the environment where the unit operates. In particular on: o Ambient air dust load - the more dust particles are in the air, the sooner the filter box becomes clogged o Operating power of the unit - the more air the unit filters, the sooner the filter box becomes clogged...
  • Page 20 d) Disconnect the connectors for switch connection, earth connectors and for connectors for the hose from the side of the unit DISCONNECTION OF EARTH CONNECTOR DISCONNECT BOTH CONNECTORS FROM THE EARTH DISCONNECTION OF THE CONNECTOR AND THE HOSE 1. PUSHING THE BLUE CIRCLE DOWN 2.
  • Page 21 f) Release the pressure caps on the extraction box of the unit and release them from the hook on the filter box. Store the extraction box in a safe place to prevent damage. PUSH THE PRESSURE CAP LEVER DOWN Fig. 21 g) Release the pressure caps on the fan box of the unit and release them from the hook on the filter box.
  • Page 22 Lift the clogged filter and wrap it in the plastic bag. Always touch the filter from the bottom in the direction away from the fan box (clean side of the clogged filter). Use a cable tie (included in the package with the replacement filter box) to close the bag with the clogged filter box. Put the covered filter box in the bag back into the box.
  • Page 23 k) Tighten the pressure caps between the fan and filter box using adequate force. Each new filter box is equipped with a new seal to keep the entire assembly tight. If the pressure cap cannot be tightened or excessive force is necessary, loosen the cap clip on the thread by 1 turn and repeat the tightening process.

  • Page 24: Replacement Of Protective Sleeve (Only For The Version With Suction Arm)

    o) Put the sheet metal sides on the sides of the unit. Fig. 28 p) Put the unit into operation according to point 6.2. Switching on 7.1.3. Replacement of protective sleeve (only for the version with suction arm) Replace the protective sleeve as required according to the procedure described in chapter 3.2.2. 7.2.

  • Page 25: Troubleshooting

    8.1. Troubleshooting 8.2. Error persists Never attempt to repair the unit yourself in the event of a persistent unit failure. Switch off the unit using the main switch and disconnect it from the mains. Prevent repeated restarting of the unit or manipulation by an unauthorized person. Contact your dealer 9.

  • Page 26: Warranty

    - warranty repairs. The complaining party pays all associated costs in the event of an unjustified complaint. 11. In conclusion If you have any questions about this product, do not hesitate to contact us. Contact address: Xvent s.r.o. Poděbradská 289 53009 Pardubice-Trnová Czech Republic www.xvent.cz Version 1 –...
