Summary of Contents for RaxGo RAXFBS

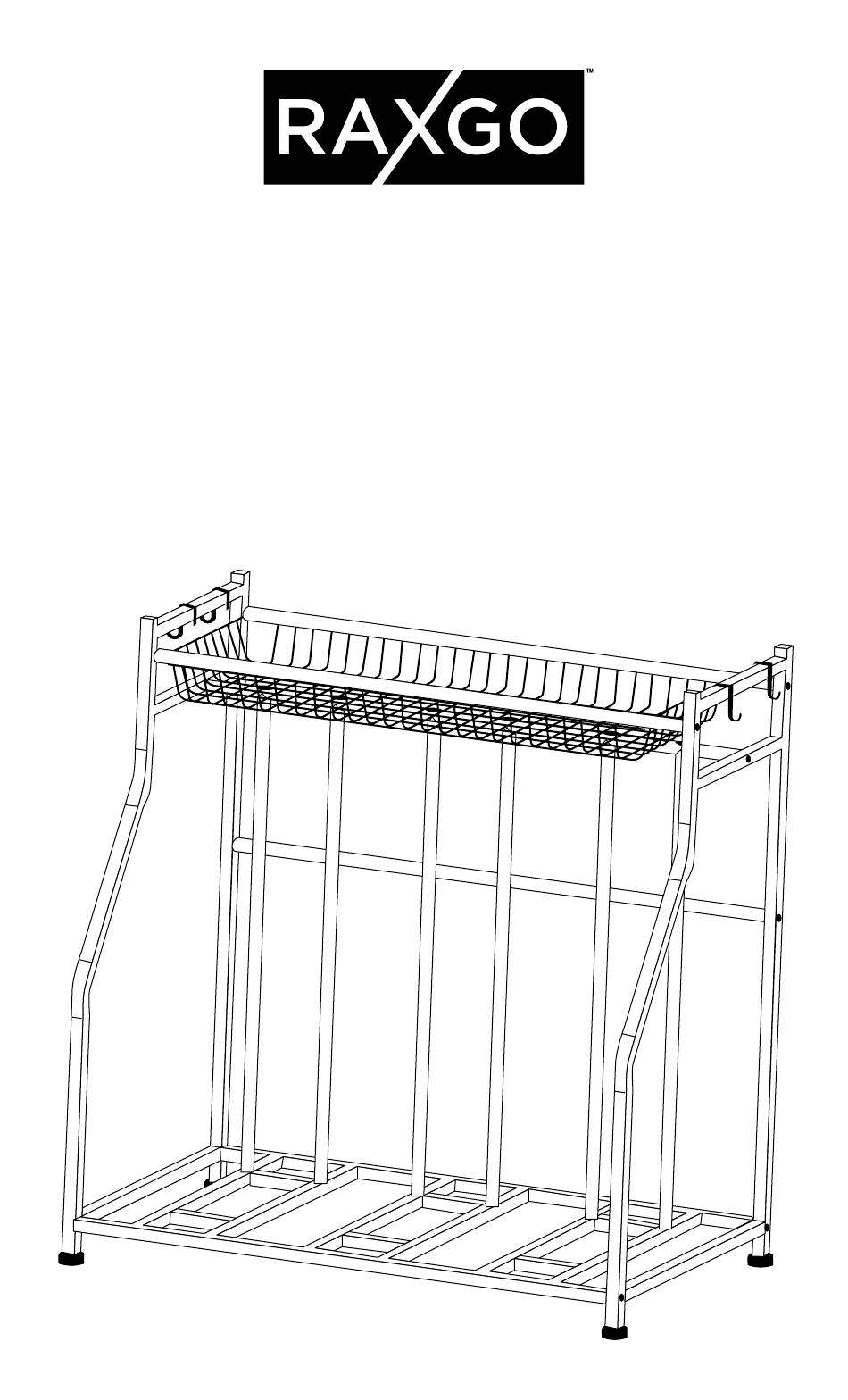

- Page 1 FLOOR BIKE RACK STATION User Guide Sku: RAXFBS...
-
Page 2: Table Of Contents
Thank you for purchasing the RaxGo™ Floor Bike Rack Station. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS • CHOKING HAZARD: This product contains small parts and is not suitable for children under 3 years old. • Remove all packaging materials before using this device. Please keep all packaging materials out of reach of children and pets. •... -
Page 4: Contents
CONTENTS 1 x Floor panel (A) 2 x Support legs (B) 6 x Vertical rack legs (C) 1 x Storage basket (F) 1 x Horizontal support bar (E) 4 x Removable hooks (G) 1 x Connector bar (D) 4 x Adjustable feet pads (H) 24 x Bolts User guide... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS REQUIRED TOOL: • Wrench INSTALLING SKI RACK 1. Place the floor panel (A) flat on the ground. Then, connect the bottom parts of the two (2) support legs (B) to the floor panel. Insert four (4) bolts into the aligned holes on the two (2) bottom holes on each of the support legs and tighten them using your wrench. - Page 6 3. Stand the assembly back up. Take the connector bar (D) and align the holes of the connector bar with the top ends of the vertical rack legs (C). Insert the bolts and tighten them. Then, align holes at both ends of the connector bar to the hole on the two (2) support legs.
-
Page 7: Specifications
5. Place and secure storage basket (F) at the top of the assembly in between the support legs (B). Align the holes and insert the bolts, two (2) on each side, securely. 6. Lastly, attach the four (4) removable hooks (G) on the top bars of the support legs (B). SPECIFICATIONS Dimensions: 35.4″... -
Page 8: Warranty
Product is returned. This Warranty does not apply to: (a) Any non-RaxGo™ Floor Bike Rack Station product, hardware or software, even if packaged or sold with the Product; (b) Damage caused by use with non-RaxGo™ Floor Bike Rack Station products;... - Page 9 (h) Cosmetic damage; or (i) If any RaxGo™ Floor Bike Rack Station serial number has been removed or defaced. This Warranty is valid only in the country where the consumer purchased the Product, and only applies to Products purchased and serviced in that country.
