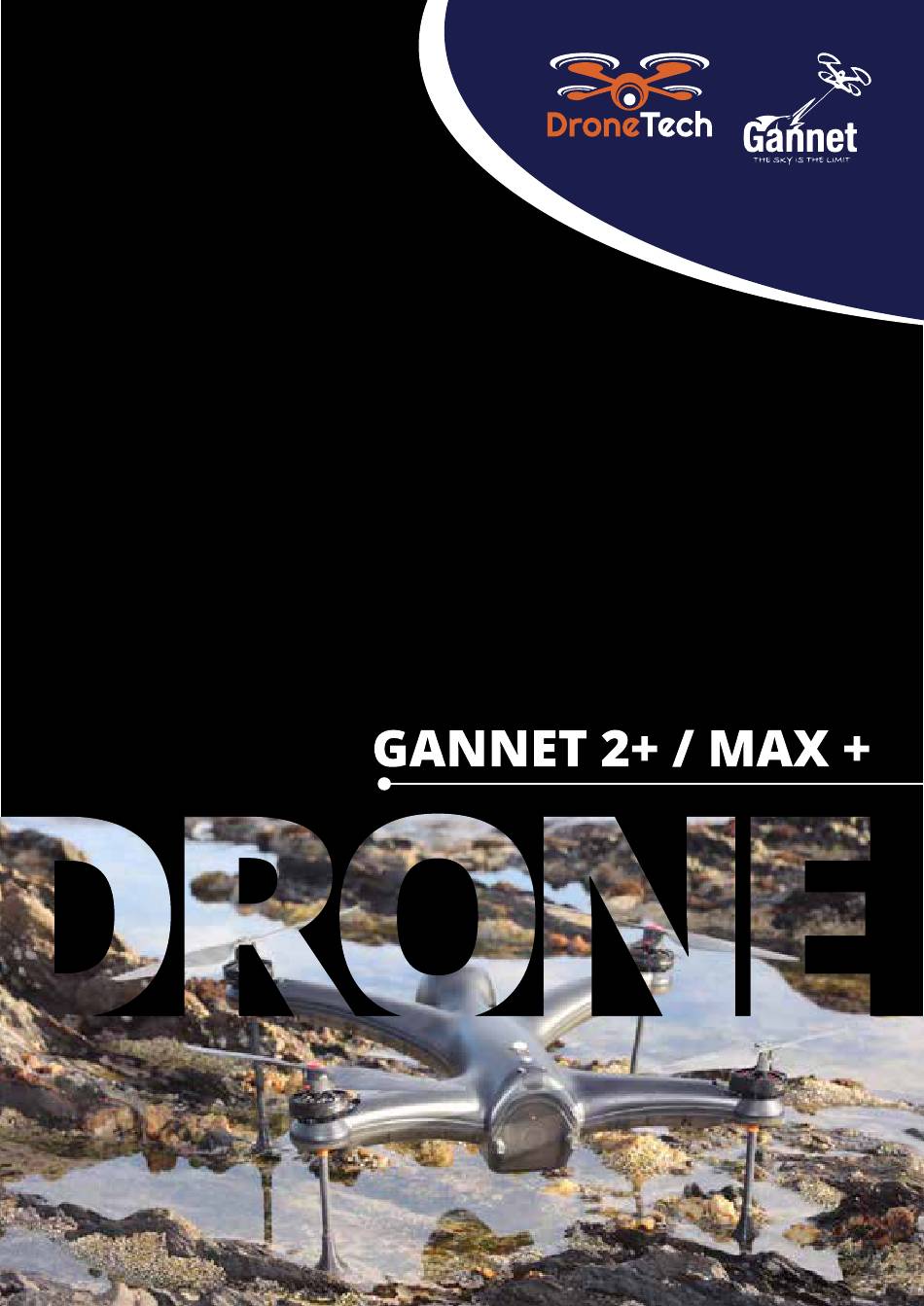

- Page 1 SUPPLIED BY: Gannet II+ / Max + Full User Manual.
-
Page 2: Table Of Contents
Quick guide Skydroid T10 controller Introduction and general information Pre-check and preparation Setup your device Environment condition • Powerful with payloads up to 2.5kg (Max lift test (NOT recommended) Ready to fly and Maintenance and servicing starting up your drone 5kgs) Transportation and storage User manual... - Page 3 • Unscrew the 2 screws on the battery door at the back of the Gannet Drone • Insert Battery ( The main black and Red Power cables ) to the bottom of the drone • Plug in the battery and screw the battery door shut ( making sure it is sealed ) •...
-
Page 4: Using This Manual
Searching for Keyword: Search for keywords such as “bait release” and Legal Notice and Disclaimer “Compass Calibration” to find a topic. If you are using Adobe Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to 1. - Page 5 4. LIABILITY Precautions 4.1. We, Gannet, the manufacturer and distributor of this drone, disclaim all 6. This quadcopter can be extremely dangerous and cause personal injury. liability from the operation of the drone resulting in – Collision with other Be careful when flying and operating it. Please follow the content of this aircraft.
-
Page 6: Warranty
Warranty or implied warranties. Gannet disclaims all statutory and implied warranties, including without limitation, warranties of merchantability and fitness for a particular use or purpose as well as warranties against hidden or latent defects Gannet provides product warranty covering parts and labour for any equipment to the extent permitted by law. -
Page 7: Features
Features What’s in the box • Gannet II+ or II MAX+ drone x 1 Long battery life • Gannet remote controller x 1 The GANNET II+ has a built-in high-capacity, high-performance LiHV 4s 8000 MaH • 150W smart balance charger with car battery charger x 1 high voltage lithium polymer battery that has an estimated unloaded hover time •... -
Page 8: Quick Start Guide
Setting the Bait Release: • ALWAYS inspect the battery to make sure there are no signs of damage, deformity, or swelling before charging. If there are, STOP charging the battery • The release must be set to release when approximately 400g of pressure is and follow the proper procedure to dispose of the battery. -
Page 9: Take Off And Flight
Warning! Take off and flight • Always stand well clear of the drone, carbon fibre propellers can be very If signal from the remote is lost while the drone is armed. It could take off dangerous and must be avoided, never try to stop spinning propellers by hand! from the ground and climb to ‘Return To Home’... -
Page 10: Drone Components And Light Status
• When removing the battery, pull gently on the connector whilst wiggling it, do not jerk or pull on the wires only, • Add a bit of lubricant to the landing gear retaining rubbers from time to time, it helps them slide in easier locking them in place. •... -
Page 11: Remote Controls
Remote Controls Skydroid H12/H12 PRO Controller Attention This product uses the following terms to classify the potential hazards that may be caused by improper operation. Note: If not follow the instructions, it may cause property damage and minor injuries. Note: If not follow the instructions, it may cause property damage, major accidents and serious injuries. -
Page 12: Status Bar
Status Bar Q & A 1 2 3 4 1. Can the remote control install other apps? The permissions of the remote control are all open, and there is no special software or restricted software installation and uninstallation. 2. Data transmission/telemetry cannot be connected Check whether the ground station is connected with UDP type to connect to the TX and whether the listening port is 14551. -
Page 13: Transportation And Storage
Transportation and storage Skydroid T10 controller Warning In order to prevent lost or getting hurt, please strictly follow the rules of operation: Keep small parts or wire away from children can reach. DO NOT let children touch the small parts of H16/H16 Pro Attention 1 DO NOT put H16/H16 Pro into water. -
Page 14: Pre-Check And Preparation
Pre-Check and Preparation Environment Condition PAY ATTENTION ATTENTION Environment Temperature: -10C ~ +55C 1 Check T12 Battery level Storage Temperature: -25C ~ +70C Check Postition of the antenna to get better performance Relative Humidity: Do not exceed 85% Make sure the frmware is the latest version. Atmospheric pressure: 86kPa ~ 106kPa DO NOT operate under the influence of alchohol Working environment should not contain explosive material or any corrosive or... -
Page 15: Maintenance And Servicing
Maintenance, Servicing FCC STATEMENT Storage for not using certain period. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed Put T10 a dry and ventilated area. -
Page 16: Propellers
Propellers To remove propellers, support the motor with one hand and push down on the two pins on the side while turning the propeller in any direction until it pops up. A tool is also provided in the kit to make this process much easier. The Gannet II / II MAX has two pairs of propellers - two clockwise propellers and two counter-clockwise propellers. -
Page 17: Drone Calibration
Drone Calibration Compass Calibration Process The Compass Calibration should only be done if the app asks for it to be done. Compass Calibration is performed with the drone outdoors and away from any sources of magnetic interference such as metal structures, radio masts or mobile phones. -
Page 18: Preparation Before Every Flight
Preparation Before Every Flight Do not use the battery: • If there is any visible damage to any of the cells, Drones are fun to fly, but they are not toys. Be a responsible pilot and • If the battery is swollen or puffy. prepare for your flight properly to fly safely and get the most out of your •... - Page 19 Checking Battery Voltage Gannet supplies a battery checker with the Gannet II / II MAX. The battery checker will check the voltage of the battery and the voltage of each cell in the battery. Plug the balancer cable of the battery into the battery tester. The tester will BEEP, and then show the total voltage of the battery, followed by the voltage of each cell.
- Page 20 FULL USER MANUAL GANNET 2+ / MAX +...
-
Page 21: Ac/Dc Smart Balance Charger
AC/DC Smart Balance Charger In order to avoid short circuits, connect the banana connector cable to the charger first, then connect the battery. When disconnecting, disconnect the battery first, then disconnect the charger. Only one battery can be charged at a time. These operating instructions are designed to ensure that you quickly become familiar with its functions. - Page 22 Dual Power Input Specifications The power source can be 11-18V DC input, it can be powered up at any place with a 12V car battery or 100-240V AC input. The power supply is built in and users could connect the AC Power cord to the main AC socket directly. What’s more the AC input voltage is 100-240V so that the users could use charger all over the world and don’t need to worry about any damage caused by improper input voltage.
- Page 23 Terminal Voltage Control (TVC) The charger allows user to set the charge/discharge and voltage. Capacity Limit The charging capacity is always calculated as the charging current multiplied by time. if the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.
- Page 24 Charging During charge process, a specific quantity of electrical energy is fed into the battery. The charge quantity is calculated by multiplying charge current by charge time. The maximum permissible charge current varies depending on the battery type or its performance, and can be found in the information by the battery manufacturer.
-
Page 25: Explanation Of Buttons
Explanation of Buttons Here are the detailed procedures to make the charger work. All the screens and operations will take LiPo-CHARGE program for example Connection Ensure to connect the battery to balance port when charging LiPo, LiIon, LiFe and LiHV battery under balance mode. OPERATION PROGRAM Connecting to Power Source Connecting the Battery... -
Page 26: Operation Program
Operation Program Charge Programme 1. Standby After the charger is powered on, it will enter standby BATT/PROGRAM Select mode. Connect the battery and the balance port. The charger will automatically detect the connected battery Press “STOP” and “-“to go through all the programs type. -
Page 27: Charging Procedure Quick Guide
Charging Procedure Quick Guide Error Message Error Message 5000 LiPo (4s) Select Program (LiPo) -> Press Start Select Balance Charge -> Press Start Incorrect polarity connected. Input Cell Count (4s) -> Press Start Select Current (5000 mAh) -> Press Start Select Charge Current (Max 5.5A) ->... -
Page 28: Payload/Bait Release System
Payload / Bait Release System Drop Loop A drop-loop is an essential part that has saved countless drones from failure. By utilising a drop- loop, the main line is kept far away from the drone’s props. We recommend using a long running drop loop of at least 60 - 80 cm with the bait hanging a further 3-10m below that. - Page 29 FailSafe For more information on the other flight modes that are available via the app please see the link to full Pixhawk4 manual. https://docs.px4.io/master/en/flight_ controller/pixhawk4_mini.html In both ATTI and GPS mode, it is recommended to wait for at least 9 GPS satellites before take-off to ensure that the home point is correctly registered for the Return Home function to operate.
- Page 30 Please Contact Dronetech NZ Email: support@dronetech.co.nz Phone: 09 836 6088 www.dronetech.co.nz GANNET 2+ / MAX +...
