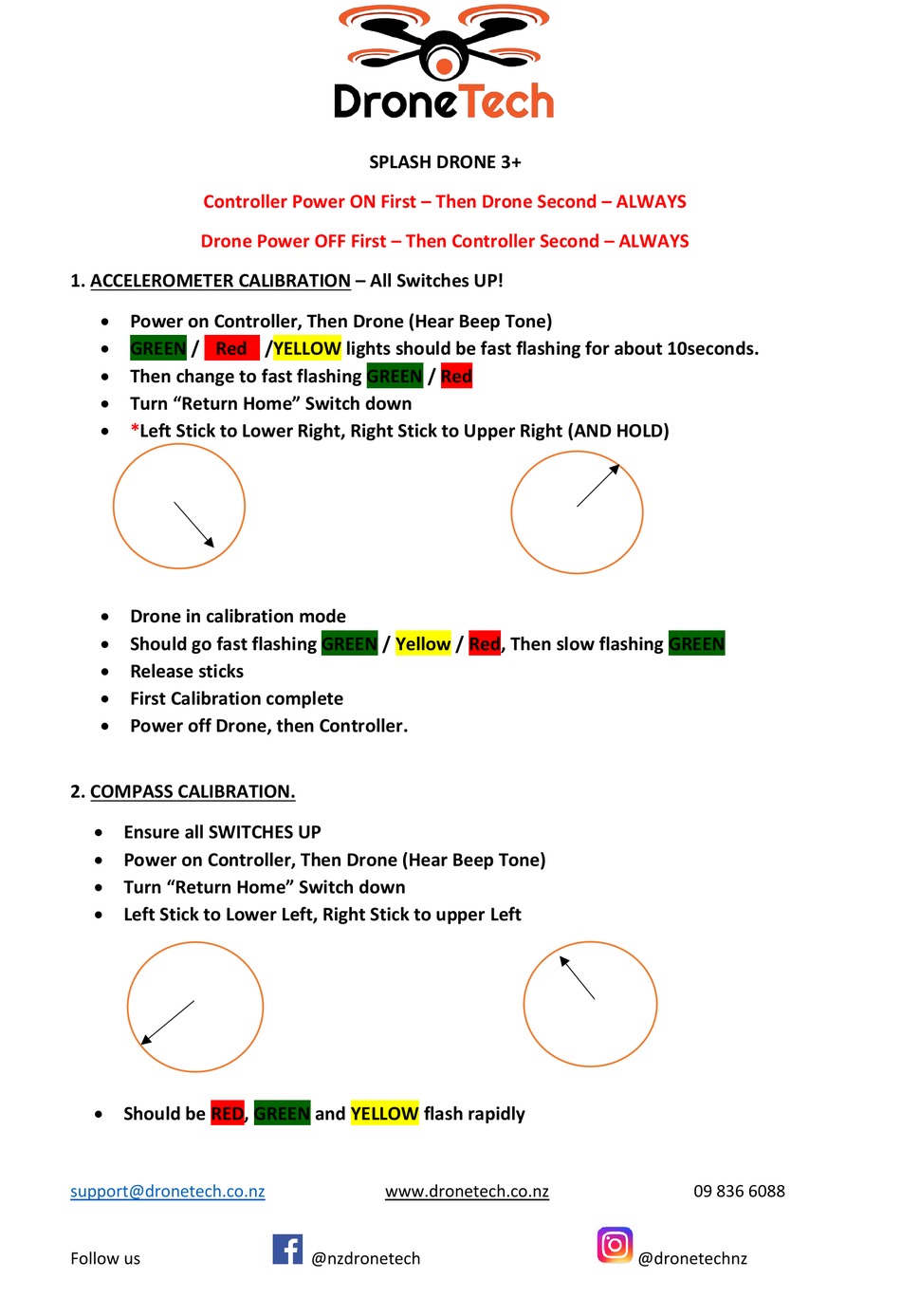

DroneTech SPLASH DRONE 3+ Calibration Instructions

Controller Power ON First – Then Drone Second – ALWAYS
Drone Power OFF First – Then Controller Second – ALWAYS
1. ACCELEROMETER CALIBRATION – All Switches UP!
 Power on Controller, Then Drone (Hear Beep Tone)
 GREEN /
RRedD
 Then change to fast flashing GREEN / Red
 Turn "Return Home" Switch down
 *Left Stick to Lower Right, Right Stick to Upper Right (AND HOLD)
 Drone in calibration mode
 Should go fast flashing GREEN / Yellow / Red, Then slow flashing GREEN
 Release sticks
 First Calibration complete
 Power off Drone, then Controller.

2. COMPASS CALIBRATION.

 Ensure all SWITCHES UP
 Power on Controller, Then Drone (Hear Beep Tone)
 Turn "Return Home" Switch down
 Left Stick to Lower Left, Right Stick to upper Left
 Should be RED, GREEN and YELLOW flash rapidly
support@dronetech.co.nz
Follow us
SPLASH DRONE 3+
/YELLOW lights should be fast flashing for about 10seconds.
