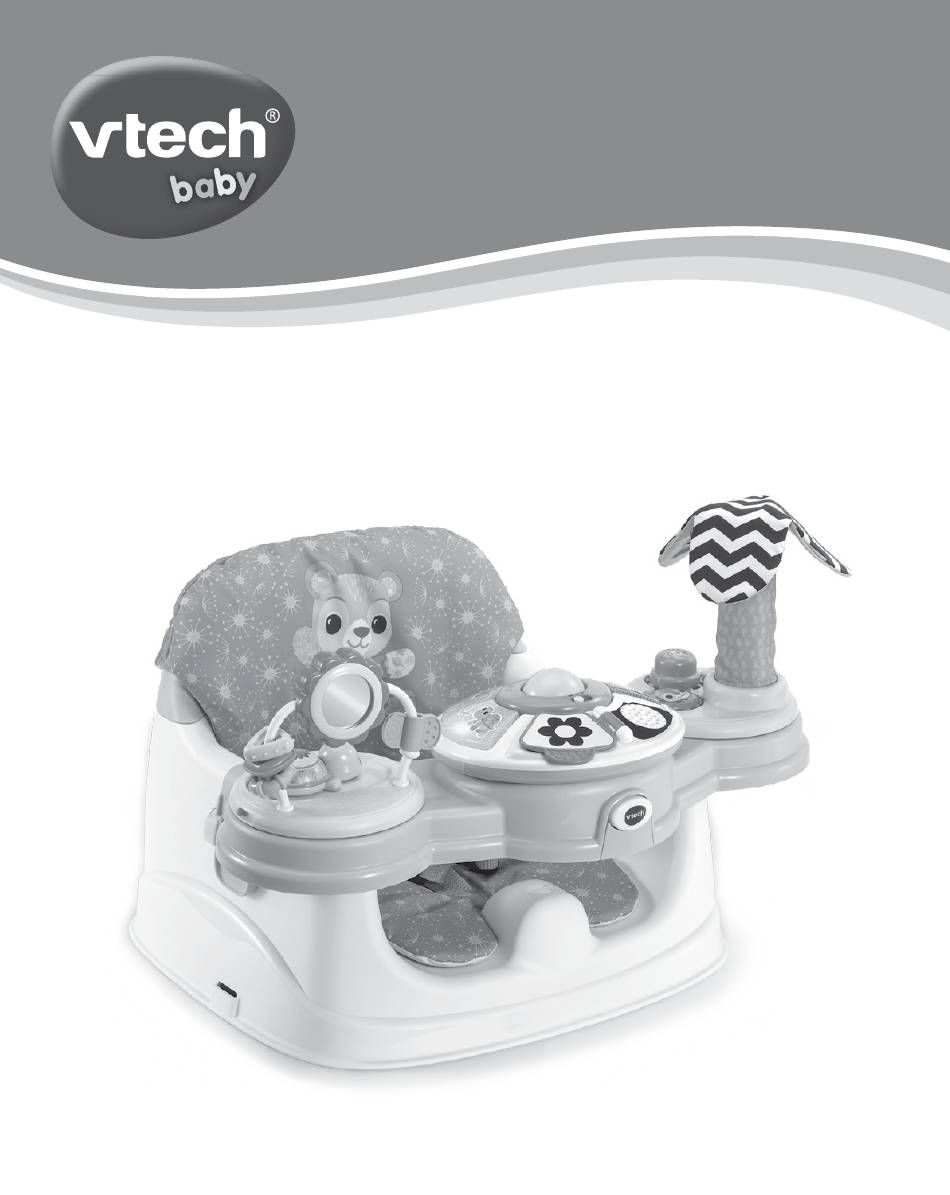

- Page 1 Instruction Manual 5-in-1 Baby Booster Seat...

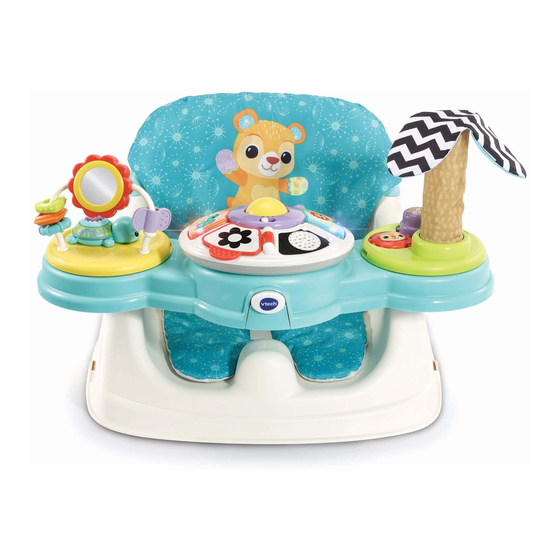

- Page 3 INTRODUCTION Join your animal friends on the 5-in-1 Baby Booster Seat! Filled with developmental activities with 3 detachable play zones, this seat grows with your baby in their first three years. Off/Low/ High 1 Roller Ball Volume Control Button Switch 4 Light Up Buttons 1 Flashcard...
-
Page 4: Included In The Package
INCLUDED IN THE PACKAGE Backrest Booster Body with Seat Snack Tray Pad, Adult Chair Straps and Child Restraints Soft Tree Mirror Arch Gear Play Zone (Left) Turtle Play Zone Musical Play 4 Screws (Right) Zone (Middle) • Quick Start Guide... - Page 5 WARNING: All packing materials such as tape, plastic sheets, packaging locks, removable tags, cable ties, cords and packaging screws are not part of this toy and should be discarded for your child’s safety. NOTE: Please save this Instruction Manual as it contains important information. Removing the Packaging Locks: Rotate the packaging locks anticlockwise 90 degrees.
- Page 6 IMPORTANT! KEEP FOR FUTURE REFERENCE WARNING Adult assembly required. This package contains small parts. For your child’s safety, do not let your child play with the 5-in-1 Baby Booster Seat until it is fully assembled. To prevent serious injury or death from sliding out, falling or tipping over: • Never leave the child unattended.
-
Page 7: Getting Started
GETTING STARTED BATTERY REMOVAL AND INSTALLATION 1. Make sure the unit is turned OFF. 2. Find the battery cover located on the back of the unit, use a screwdriver to loosen the screw and then open the battery cover. 3. Remove old batteries by pulling up on one end of each battery. 4. Install 3 new AAA (LR03/AM-4) batteries following the diagram inside the battery box. (For best performance, alkaline batteries or fully charged Ni-MH rechargeable batteries are recommended). 5. Replace the battery cover and tighten the screw to secure. WARNING: Adult assembly required for battery installation. Keep batteries out of reach children. IMPORTANT: BATTERY INFORMATION • Insert batteries with the correct polarity (+ and -). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Do not short-circuit the supply terminals. • Remove batteries during long periods of non-use. - Page 8 Disposal of batteries and product The crossed-out wheelie bin symbols on products and batteries, or on their respective packaging, indicates they must not be disposed of in domestic waste as they contain substances that can be damaging to the environment and human health.
- Page 9 ASSEMBLY INSTRUCTIONS Safety comes first with the 5-in-1 Baby Booster Seat. To ensure your child’s safety, adult assembly is required. This package contains four screws. Do not let your child play with the toy until it is fully assembled. A. Seat Pad 1.
- Page 10 3. Insert the two elastic rings through the holes on the bottom of the seat, tighten them via the pillars, as shown below. (These are already in place when you take it out of the packaging). B. Child Restraints 1. Locate the three T-ends (A,B,C) of the child restraints, insert them through the holes of the seat pad, then into the booster, as shown below.
- Page 11 C. Snack Tray & Play Zones 1. Insert the mirror arch into the turtle play zone (right), and insert the soft tree into the gears play zone (left). Then insert the play zone (right) & play zone (left) into the snack tray, rotate the play zones (following the diagram on the snack tray), as shown below.
- Page 12 To remove the play zone (left) & play zone (right) from the snack tray: Rotate the play zones (following the diagram on the snack tray), then pull them up, as shown below. To remove the musical play zone (middle) from the snack tray: Press the button on the snack tray, then pull up on one end of the musical play zone (middle), as shown below.
-
Page 13: Product Setup
2. Locate the four T-ends (A, B, C, D) of the straps and insert them through the holes of the booster, as shown below. Pull back to make sure they are secure. PRODUCT SET-UP Min 7.4in (Min 188mm) Min 16.6in Min 17.3in (Min 423mm) (Min 440mm) - Page 14 B. Securing Your Child Place your child in the booster seat. Position the crotch belt • between your child’s legs. Buckle the restraint belts to the crotch belt. You will hear a “click” • sound to indicate the straps are secure. •...
- Page 15 • Pull the anchored end of the restraint belt to shorten the free end of the restraint belt. C. Tray Use Before use, thoroughly wash all parts (the tray) that may be in contact with food. The trays are not microwave or dishwasher safe. •...
-
Page 16: Product Features
PRODUCT FEATURES 1. Off/Low/High Volume Control Switch To turn the unit On, slide the Off/Low/ High Volume Control Switch to the Low ( ) or High ( ) volume position. You will hear a song and welcoming phrase. To turn the unit Off, slide the Off/Low/High Volume Control Switch to the Off ( ) position. - Page 17 2. Rollerball Button Press the Rollerball Button to hear playful sounds and music. When a melody is playing, press the Rollerball Button again to hear fun sounds play over the top of the melody. The lights will flash with the sounds.
- Page 18 4.3. Snack Time Booster (9 months+) 4.4. Sit & Play (12 months+) 4.5. Table Booster Seat (18 months+)
-
Page 19: Melody List
SONG LYRICS Song 1 Animal pals are here to play, Explore and learn and sing all day! Song 2 Lion swishes his furry red mane, As he dashes through the wind. Song 3 Little darling say hello, Busy Bee is buzzing free. Song 4 Little Fox flaps his furry ears, As he dashes through the wind. -
Page 20: Care And Maintenance
CARE & MAINTENANCE 1. Keep the unit clean by wiping it with a slightly damp cloth. 2. Keep the unit out of direct sunlight and away from any direct heat sources. 3. Remove the batteries when the unit will not be in use for an extended period of time. 4. Do not drop the unit on hard surfaces and do not expose the unit to moisture or water. 5. The booster seat with attached straps and belts may be wiped clean using a mild cleaning solution and a damp cloth. Do not use bleach. Do not use harsh or abrasive cleaners. Rinse clean with water to remove residue. 6. The snack tray is not machine washable. 7. Wash the snack tray thoroughly before use. TROUBLESHOOTING If for some reason the unit stops working or malfunctions, please follow these steps: 1. Turn the unit Off. 2. Interrupt the power supply by removing the batteries. 3. Let the unit stand for a few minutes, then replace the batteries. 4. Turn the unit On. The unit should now be ready to use again. 5. If the unit still does not work, install a new set of batteries. If the problem persists, please contact our Consumer Services Department and a service representative will be happy to help you. VTech Electronics Europe B.V., Fahrenheitstraat 22, 6003 DC Weert, THE NETHERLANDS. VTech Electronics Europe plc, Napier Court, Abingdon Science Park, Abingdon, Oxon, OX14 3YT, U.K. - Page 22 Visit our website for more information about our products, downloads, resources and more. www.vtech.co.uk www.vtech.com.au TM & © 2022 VTech Holdings Limited. All rights reserved. IM-546100-000 Version:0...
