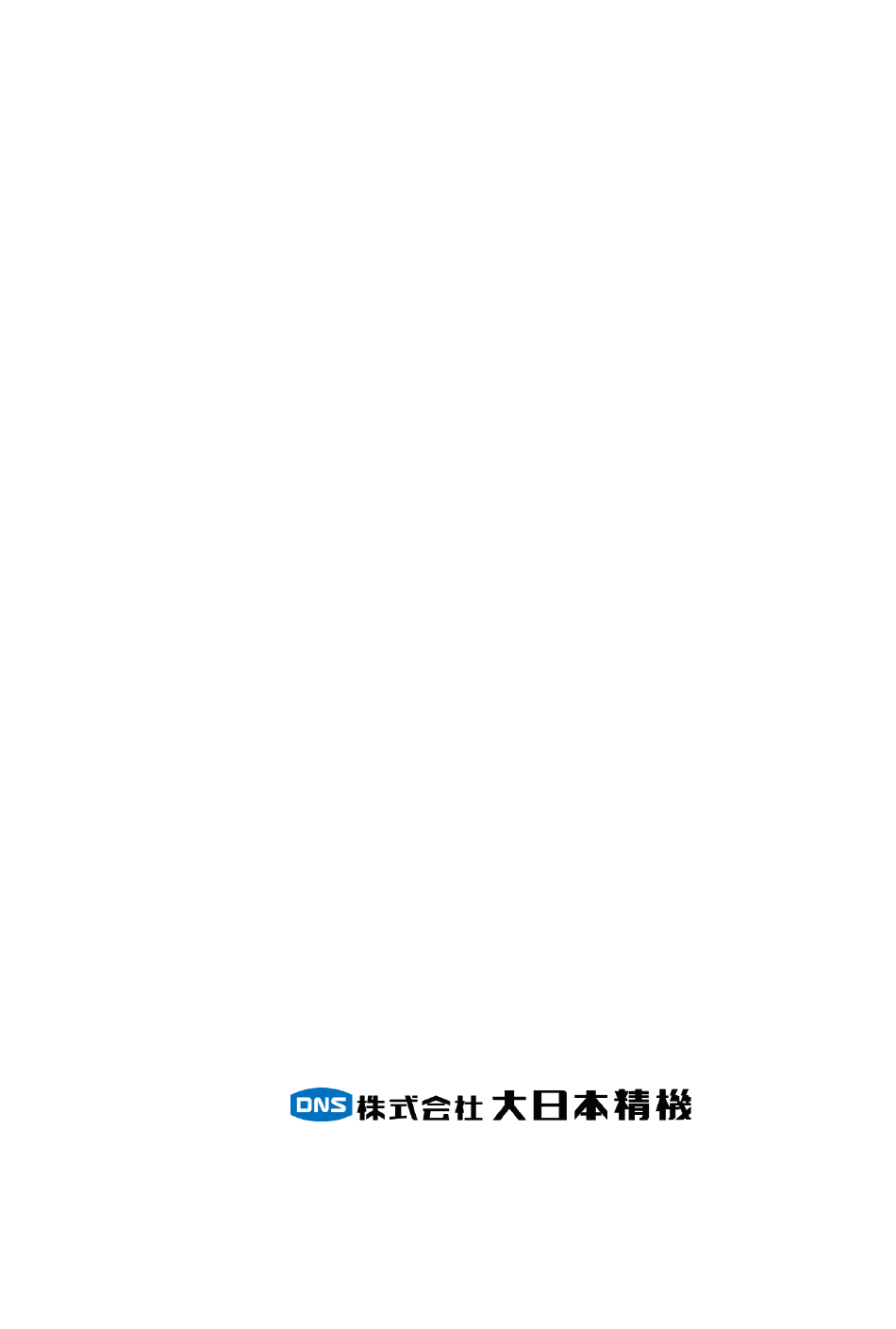

- Page 1 AS-410 Auto Trimming Unit Operation Manual 2017/8/21 Ver. １.00 - 1 -...
- Page 2 Overview This option enables the System to perform rough-cutting (trimming) while automatically monitoring the exposure of the tissue on the sample block surface via a CCD camera under two LED lights (incident and reflective). The System continues trimming until tissue is exposed for the predetermined tissue exposure ratio (%).
-
Page 3: Device Configuration
Device Configuration Reflective Light CCD camera Diffused lighting Auto Trimming Unit photographing area ３... - Page 4 １．How to set 1－1．Setting on AS-410 Auto Surface Detection application detects the sample surface by following procedure. ① Apply Surface Cut (rough cut) to eliminate unevenness of the block surface. ② From the top surface of the block, the area of the block surface and the tissue image were taken.
- Page 5 1-1-1．Setting the Main Body Set the conditions for the Auto Trimming function using the operation panel of the main unit. Setting Auto Trimming Chose “MAINTENANCE” on the MAIN MENU screen. ① Chose “AUTO TRIMMING” on the MAINTENANCE screen. MAIN MENU screen MAINTENANCE screen When Auto trimming setting screen appears, enter the values referring to the Table 1.
- Page 6 Chart 1. Auto Trimming Setting items Basic auto trimming setting On-screen item Description Setting range Size of tissue specimen on paraffin surface compare to 1 to 99 Surface detection ratio (Threshold) the entire tissue size. Thickness of 1st surface trimming per single slicing. 1st Thickness 3 to 30 2nd Thickness...
- Page 7 １－２．Setting the Auto Trimming Analysis Software 1－2－1．How to install the Auto Trimming Analysis software （１） Open the AsScan_9 folder. （２）Click （３）Press Next (N) when the AsScan setup wizard appears. （４）Choose the folder to install the software then click next. （５）Click Next on the installation conformation screen when appeared.
- Page 8 1－2－2．Setting device １）Click “AsScan”icon on the desktop. ２）Check if Auto-Trimming analysis software opens normally. ３）Press “Abort” on the main menu of the analysis software. ４）Press the Save Directory button(①) and choose where to save the examination images. （ex：Ｃ:\AS-400\work） ５）Press Parameter Setting button(②). ６）Enter the Password （71953）.
- Page 9 8）Press Device button Check the below listed items. ① If [Serial Number] is consistent with the Serial Number with camera. ② If [Video Format] is BY8（640×480 VGA）. ③ If Frame Rate(FPS) is set with “30.0003.” 9）Press ‟ Properties.” 10）Check the settings for Color, Exposure, and Image. Fig.
- Page 10 1－2－３．３．Shooting position and light quantity adjustment １）Set the block for adjustment in the device. ２）On the main unit operation panel, press “Main Menu” →“Maintenance”→“Maker Maintenance”and input password, press“Device Setting,”and confirm that the Auto-Trimming is “ON.” Fig.11 main menu PC (1) ３）On the main unit operation panel, press “Main Menu”...
- Page 11 Fig.11 Parameter setting Screen 11. The correct light quantity within the range is displayed as shown below. TissuePlane is a place where it is recognized as the surface of the block that is displayed in white. Check if the system recognizes the same area with the block surface as shown in A. If it is displayed like B, measure the amount of light on the surface of the block again and check whether there is no variation in the amount of light or whether the light is not strong or weak.
- Page 12 ⑤ Part of the block surface is chipped (C) Check if there is anything making a shadow between the lighting and the block surface, and if light intensity is not low. 1－2－4． Confirmation with tissue block 1. Shave the surface of the block to eliminate unevenness. 2.
- Page 13 １．Tissue Size Detection Level ⑤ The threshold for determining the embedded tissue area. The threshold can be set within the range of 0 to 255. If the system recognizes the tissue area too wide, then lower ⑤ the value. If the system recognizes the area too narrow, raise the numerical value.
- Page 14 2-1 How to operate the Auto Trimming function 2－1－1 Starting the Auto Trimming application To use the auto trimming function, the Auto Trimming Application (automatic measurement) must be started before starting the Section Operation mode. Follow the steps below to start the application: ①...
- Page 15 ⑤ Click the tissue surface image on the INDEX screen. The image will be enlarged. ⑥ Check on the ones which need additional trimming. ⑦ Clicking the “Add trimming” starts the additional trimming. ⑧ Check on the ones to section. ⑨...
