PTC Instruments 476 Quick Start Manual

Maximum Sample Height
Stand Height
Shipping Weight
Precision engineered durometer stands are capable of
applying the specimen to indenter in a manner that
minimizes shock. When properly used, this stand and
your durometer will increase repeatable hardness
measurements.
Applies sufficient weight to assure firm contact between
the pressor foot and the specimen avoiding hand held
fatigue.
The support table is self-aligning for use with
non-parallel material.
These stands will test materials up to 5" thick.
Toll Free: 877-782-2329 Outside the US: 310-478-1134

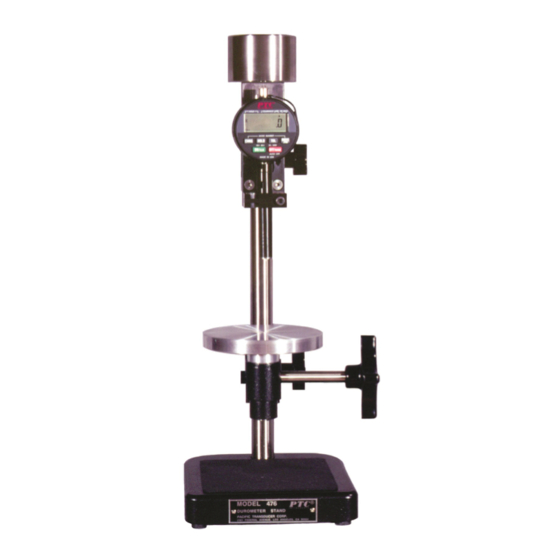

Deadweight Durometer
Test Stand Model 476 & 477
6 in (15.2 cm)
17 in. (43.2 cm)
13 lb. (9.7 kg)
•
Simplifies Hardness Testing
•
Increases Repeatability
•
Self Aligning Table
•
Mounts to PTC®'s Pencil Style Durometers
•
Correct Load for ASTM Types A, B, O and C, D , DO
•
Compatible with other Top Mount Durometers
•
ASTM D2240 Type 1 Specimen to Indenter
Digital Pencil Durometers
Stand 476 Pencil Durometers A, B and O
Stand 477 Pencil Durometers C, D, and DO
Analog Pencil Durometers
web: ptc1.com email: info@ptc1.com
Doc #2487-2
