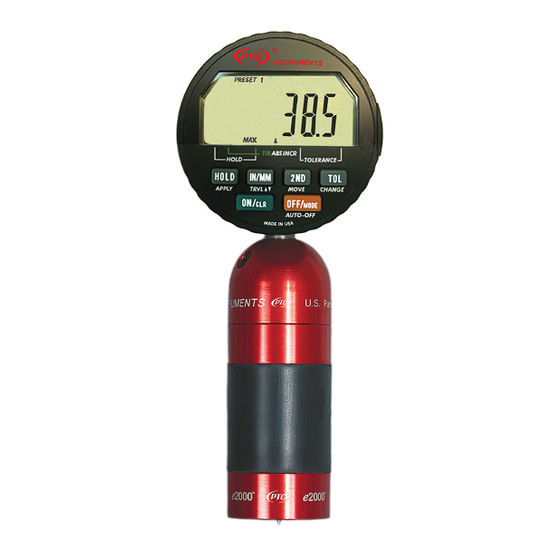

Model 512D Digital ASTM Type D Durometer
for plastics, hard rubber, epoxies, etc.
The ultimate durometer for accurate hand held
hardness measurements. PTC
the new millennium with this durometer's refined
styling. The durometer is easy to grip and the
1.25" diameter base has a large landing area for
increased stability and maximum repeatability.
The instrument uses a digital readout indicator
with bold, easy to read numbers. The unit has
an RS232 data port for downloading information
to a PC or printer. Features also include an auto
shutoff timer and low battery warning display.
These durometers meet or exceed all aspects
of ASTM D2240.
All durometers come complete with certification
traceable to NIST, test block, batteries, 115V
AC adaptor, and carrying case. The test blocks
are color coded to match the durometer type.
The blocks will read within ±1 point of a properly
functioning durometer.
T o l l F r e e : 8 7 7 - 7 8 2 - 2 3 2 9
O u t s i d e U . S . : 3 1 0 - 4 7 8 - 1 1 3 4
L o s A n g e l e s , C A 9 0 0 6 4 - 1 4 8 2
Certified ASTM Digital Durometers
e
2000
leads you into
®
2256-7
Series
™
•
A Certificate to N.I.S.T. Is Included with
Each Digital Durometer
•
1.25" Diameter Base -- The Optimal Size &
Shape for Making Measurements
•
All ASTM Durometer Types Available
•
Accuracy of ±1 Point
•
LCD Display with 0.1 Point Resolution
•
Max Hold Reading Standard
•
Comes Complete with Aluminum Test
Block, Batteries, 115V AC Adaptor,
and Carrying Case
•
Test Stands Available for All Models
PTC Metrology
durometer calibration to ISO/IEC 17025 & ANSI/
NCSL Z540-1. NIST traceable certification is
available for all durometer types covered by current
ASTM D2240, ASTM F1957, ISO 868, ISO 7619,
and DIN 53505 Standards.
The Calibration Report will include both "as
received" and "as left" data. Complete durometer
calibration includes: indenter geometry and
extension, indicator linearity, and force curve.
Other durometer types, custom models, and
durometers of any manufacture can also be certified
by PTC Metrology

SPECIFICATIONS

1. Model 511A-Type A, Model 512C-Type C
Model 511B-Type B, Model 512D-Type D
Model 512DO-Type DO, Model 511/O-Type O
Model 511/OO Type OO
2. Meets or exceeds current ASTM D2240 Specs.
3. Accuracy ...................................................±1 point.
4. Dimensions:
Base Diameter ..........................1.25 in. (3.2 cm).
Height ..........................................6 in. (15.2 cm).
Width .........................................2.25 in. (5.7 cm).
Depth (indicator head) ................1.5 in. (3.8 cm).
5. Weight ............................................. 13 oz. (369 g).
6. Shipping weight ..................................4 lb. (1.8 kg).
7. Batteries (2-pack). ........................... P/N: CR2450.
w e b : h t t p : / / w w w . p t c 1 . c o m
e - m a i l : s a l e s @ p t c 1 . c o m
F A X : 3 1 0 - 3 1 2 - 0 8 2 6
Made In U.S.A.
(±2 Points for OO)
® is accredited by A2LA for
® .
